HY-ST315S-MOBILE STAGE SEMI TRAILER

HY-ST315S-MOBILE STAGE SEMI TRAILER

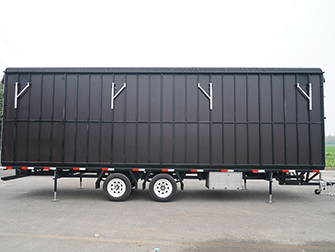

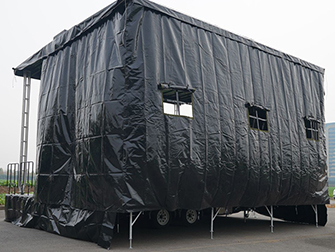

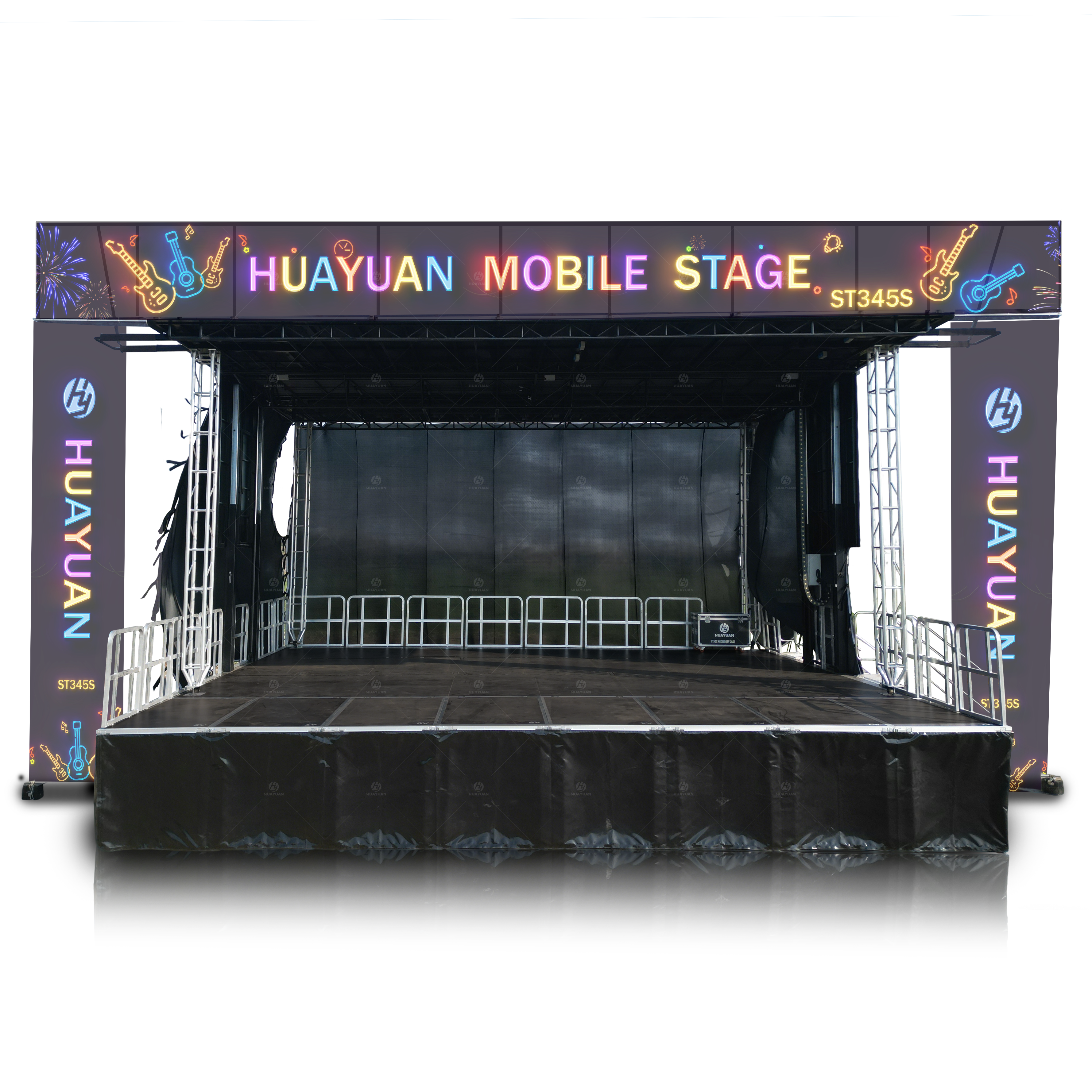

HY-ST315S is a mobile stage trailer that can be pulled by a pickup truck or SUV.Beautiful appearance, simple operation, firm structure, compact, is the best choice for large-scale festival activities.
OVERALL DIMENSION: 8M×2.5M×3.35M
STAGE SIZE: 7M×8M up to 7.28M×10.6M
Mesa height: 1M-1.3M
Ceiling height: 5.3M- 5.6M
CURB WEIGHT: ≤3.4tons
RIGGING: 2.5tons
CURTAIN: PVC/MESH CLOTH
TOWING: pickup/SUV
*Company/Name:
*Email:
Phone:
Product description
Technical Parameters
Related products
Send Your Inquiry
The stage side plate and roof are truss structure, and the ceiling and two flanks are lifted and lowered manually by connecting rod mechanism.
Bottom frame of the trailer is composed of high quality rectangular pipe and steel plate pressing parts.Make phosphating antirust treatment before skeleton making.The top and both sides are steel frame + black knife scraper cloth (PVC tarting cloth), interior floor and exterior stage board are 12mm professional stage anti-skid plate.left and right plates of the box body are retracted and lowered by connecting rod Mechanism. The main roof of the box body and the left and right wing plates form the ceiling of the whole stage. The ceiling is raised by manual capstan +4 sets of guide columns (two sets of guide columns in diagonal are equipped with safety pins).
Guardrail structure at the bottom of the carriage.The side of the stage is equipped with a black knife and cloth apron, the other side of the stage is equipped with black mesh cloth enclosure, and the other side of the stage is equipped with steel guardrail.
Left and right sides of the stage are on the outermost side of the car and are flipped outward by hand winches to form the stage plane, with the stage mouth on the right side of the car and the stage legs hidden in the stage board.The stage leg adopts built-in support leg which can be manually adjusted.Four hand-operated mechanical legs are set at the four corners of the trunk to stabilize the vehicle, and the bearing weight of each leg is not less than 1.5 tons (the distance between the legs and the front and rear plates is 1000mm).
The power supply system of the vehicle is designed and wired according to the external power supply (customized according to the national voltage standard) and the generator. The two power supply systems in Custom 2 bridge full hanging bottom plate, with electric brake, with detachable traction frame, 700R15LT tire, bearing weight of 1.4 tons per tire, mud protection installed above the tire, one mechanical hand supporting foot in front.
headlights and reflectors used meet THE ADR (or ECE) requirements, and the headlights and reflectors are installed as per THE ADR requirements.
Electric brakes will use 12V\24V universal electric brakes (with brakes on all four wheels), plus a timer that will extend the power outage by 15 minutes, i.e., keeping the brakes on for 15 minutes after the power outage.
HY-ST315S-MOBILE STAGE SEMI TRAILER
STRUCTURAL PARAMETERS OF WHOLE VEHICLE
product name               stage trailer  Model         HY-ST345S Brand                     HUAYUAN
Overall dimension(mm)      8000×2500×3350 stage  size(mm)  7000×8000 Curb weight(tons)         3200
Exterior plate material    Honeycomb composite board stage area         48-53㎡ Floor materials           Composite wood floor
Mesa height(mm)           1000-1300 floor loading      350Kg/㎡ Lighting truss           Transverse7 longitudinal 4
framework material          steel structure Set-up           2×30 minutes Light truss load bearing   450 kg / 1
CHASSIS PARAMETERS
Axle number             2 axle        2.5 tons  Brakes   Electromagnetic brake
brake system               Removable single lever Tyre number  4 Tire model  7.00R16
Wheelbase(mm)   1050 Suspension type    Plate spring Drag cover          50#
LED SCREEN PARAMETERS
specifications             P4 P5 P6 P8 P10
Size (mm)                 5760×2400 5760×2400 5760×2304 5760×2400 5760×2400
Area (㎡)                 13.8 13.8 13.3 13.8 13.8
Module Specification (mm)   320*160 320*160 192*192 320*160 320*160
Screen brightness(cd/m2)   ≥6000 ≥6000   ≥5000   ≥5000   ≥5000
Working voltage(V)       5 5 5 5 5
Refresh rate(Hz)           ≥1920  ≥1920   ≥1920  ≥1920  ≥1920
Service life(hours)        ≥50000   ≥50000  ≥10000  ≥50000   ≥50000
