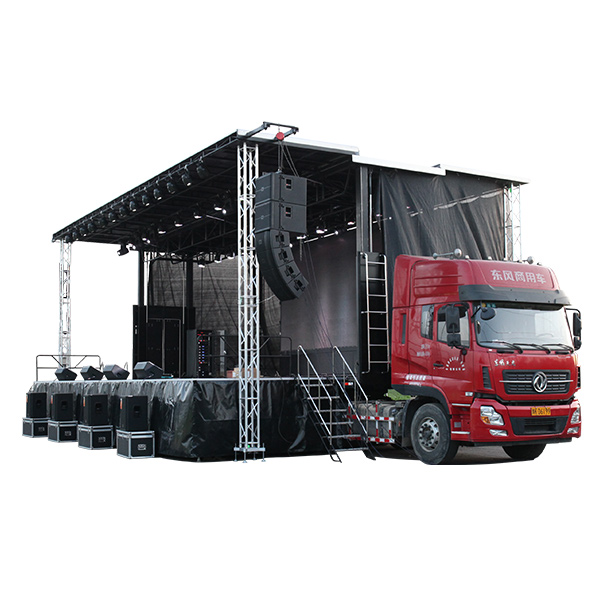

HY-S455 MOBILE STAGE SEMI TRAILER

HY-S455 MOBILE STAGE SEMI TRAILER

HY-S455 semi trailer mobile stage is professional mobile stage truck with sound system, high quality lighting and audio system make the outdoor event atmosphere more charming and active, and the advanced hydraulic system makes the construction process faster, safer and easier for the on-site event production. Compared with traditional manual construction and rigging, it saves a lot of time, labor and money. It is the most efficient and cost-effective option for busy activity seasons and time-pressed activities.
OVERALL DIMENSION: 13M×2.5M×4M
STAGE SIZE: 11.9M×8.82M up to 17M×11.38M
Mesa Height/Downstage Height: 1.6M-1.9M
Upstage Height: 4.6M-9M
CURB WEIGHT: 14.25 tons
RIGGING: 10tons
CURTAIN: PVC/MESH CLOTH
TOWING: TOW TRUCK
*Company/Name:
*Email:
Phone:
Product description
Technical Parameters
Related products
Send Your Inquiry
The side panels and roof of the stage are truss structures, and the shade and rain-proof ceiling is formed by hydraulic lifting.
The stage ceiling is provided with a device for hanging lighting, sound, scenery and other performance items. And according to customer requirements set equipment power supply, light dimming circuit connector; The car has space for lighting, sound, control equipment and professional distribution cabinet.
The double folding stage on both sides is unfolded and closed by fully automatic hydraulic operation.
All cylinders used in the hydraulic system are equipped with a hydraulic control check valve (hydraulic lock) inside, such as in the case of external damage caused by the pipeline rupture, the system can self-lock protection.
The power supply system of the vehicle is designed and wired according to the external power supply (customized according to the national voltage standard) and the generator. The two power supply systems in the distribution box are controlled separately without interference.
HY-S455 MOBILE STAGE SEMI TRAILER
STRUCTURAL PARAMETERS OF WHOLE VEHICLE
product name         12m stage semitrailer  Model                 HY-S455 Brand                        HUAYUAN
Overall dimension(mm)    13000×2500×4000 stage  size(mm)   11900×8820 Curb weight(tons)             14.25
Exterior plate material     Honeycomb composite board stage area (㎡)       105 Floor materials                 Composite wood floor
Mesa height(mm)       1600-1900 floor loading(Kg/㎡) 400 Lighting truss             Transverse7 longitudinal 4
framework material         steel structure Set-up          2×1.5 hours Light truss load bearing kg / 1  450
CHASSIS PARAMETERS
Axle number              2 axle              13 tons Fuhua bridge Brakes                  exhaust brake
brake system             ABS(EBS) Tyre number       8+1 Tire model             10.00R20
Wheelbase(mm)            7740 Suspension type    Plate spring  Traction pin             90#
LED SCREEN PARAMETERS
specifications             P4 P5 P6 P8 P10
Size (mm)                6400×3200 6400×3200 6528×3264 6400×3200 6400×3200
Area (㎡)                 20.48 20.48 21.3 20.48 20.48
Module Specification (mm)   320*160 320*160 192*192 320*160 320*160
Screen brightness(cd/m2)  ≥6000 ≥6000   ≥5000   ≥5000   ≥5000
Working voltage(V)      5 5 5 5 5
Refresh rate(Hz)           ≥1920  ≥1920   ≥1920  ≥1920  ≥1920
Service life(hours)      ≥50000   ≥50000  ≥10000  ≥50000   ≥50000
