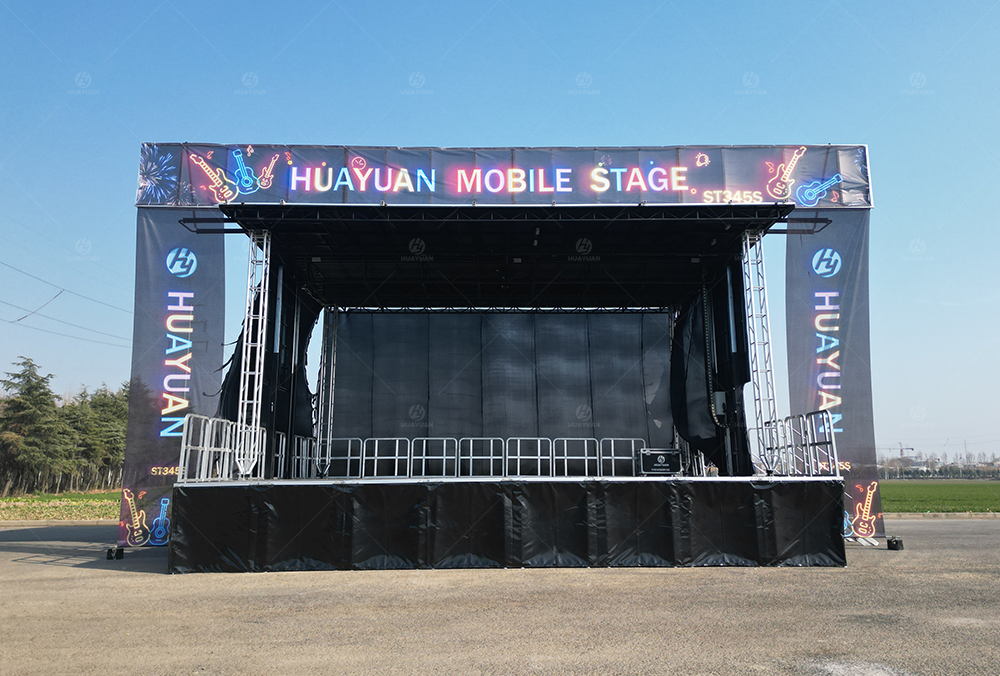

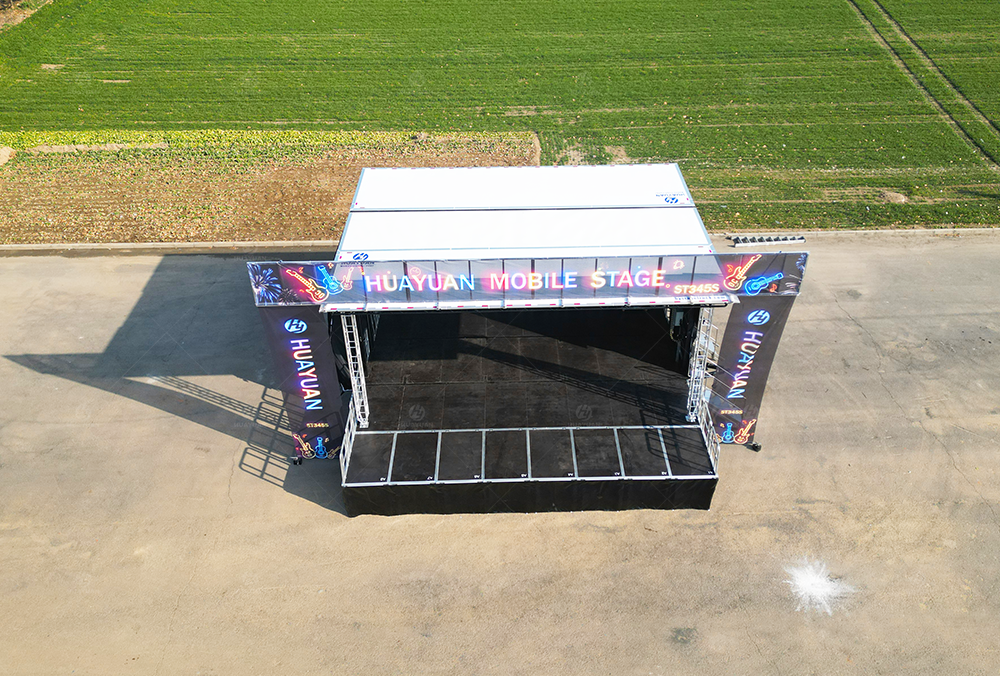

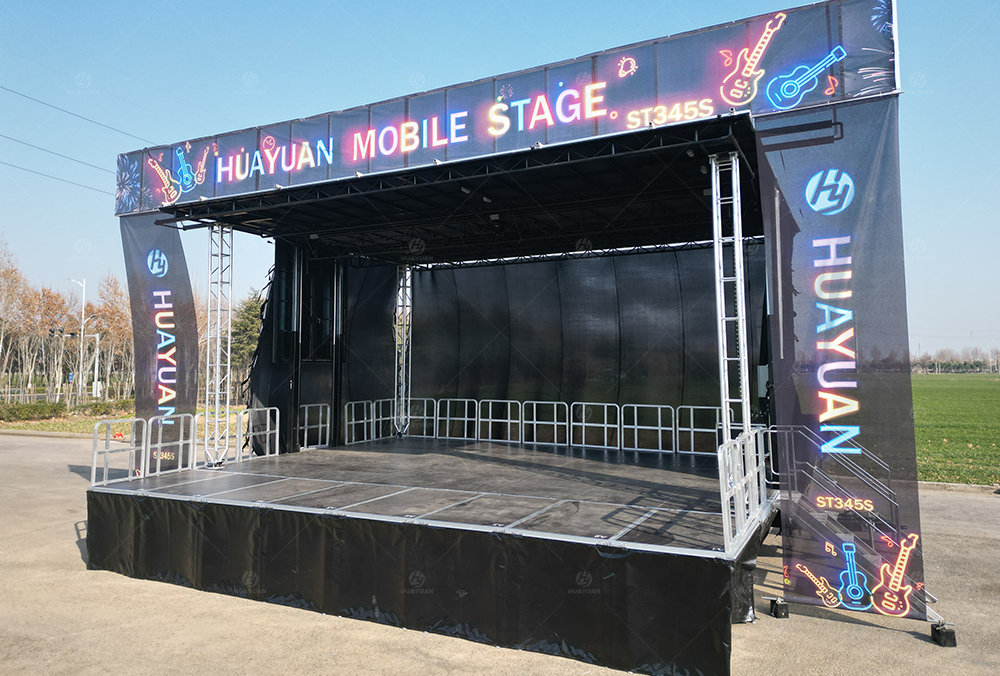

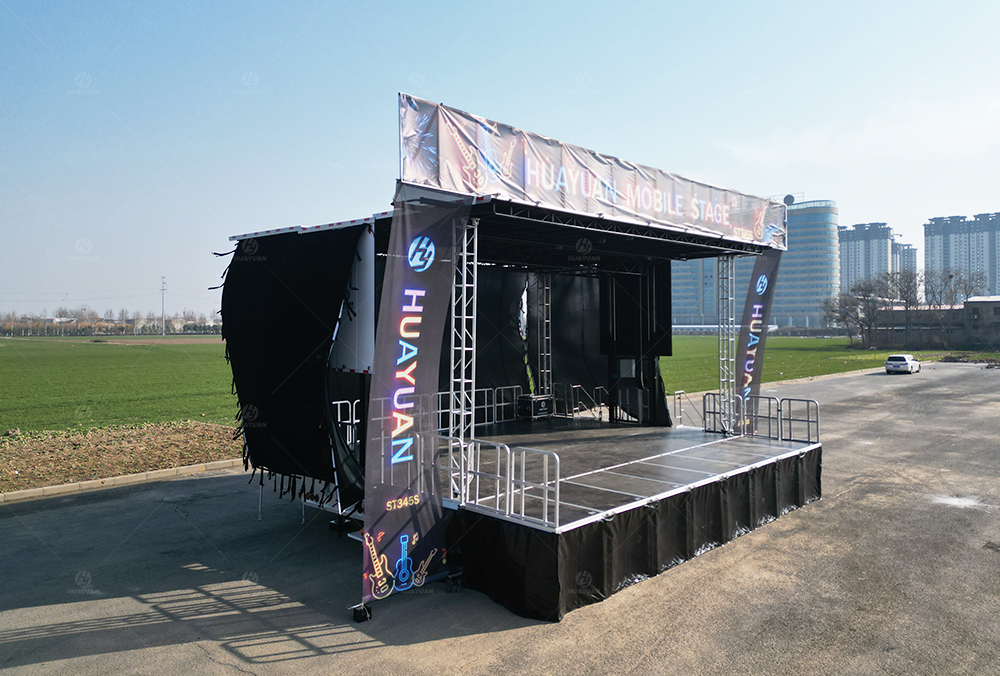

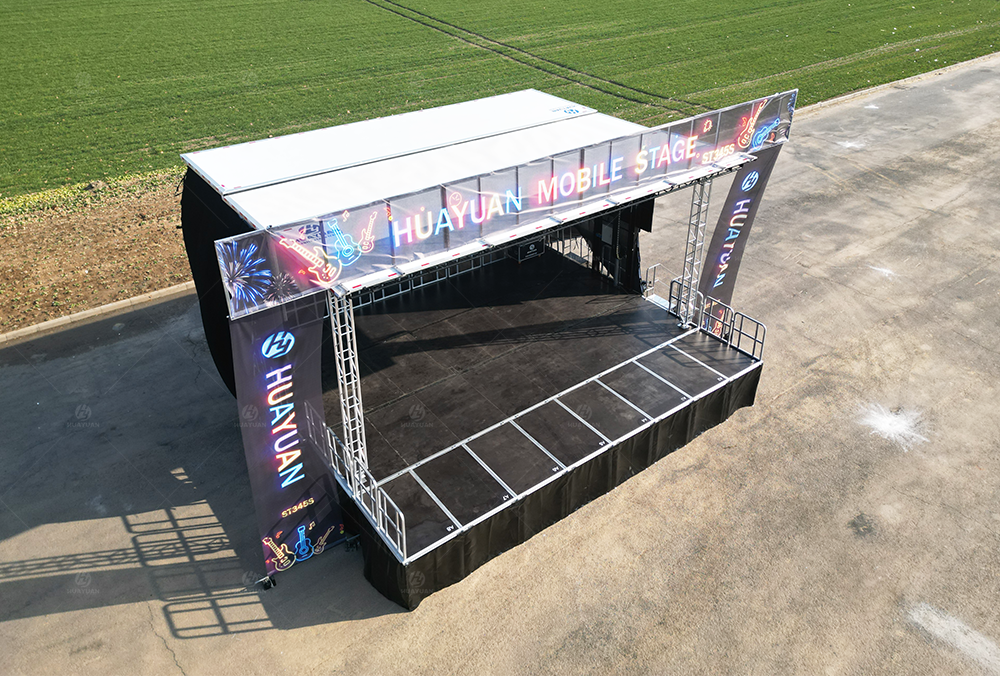

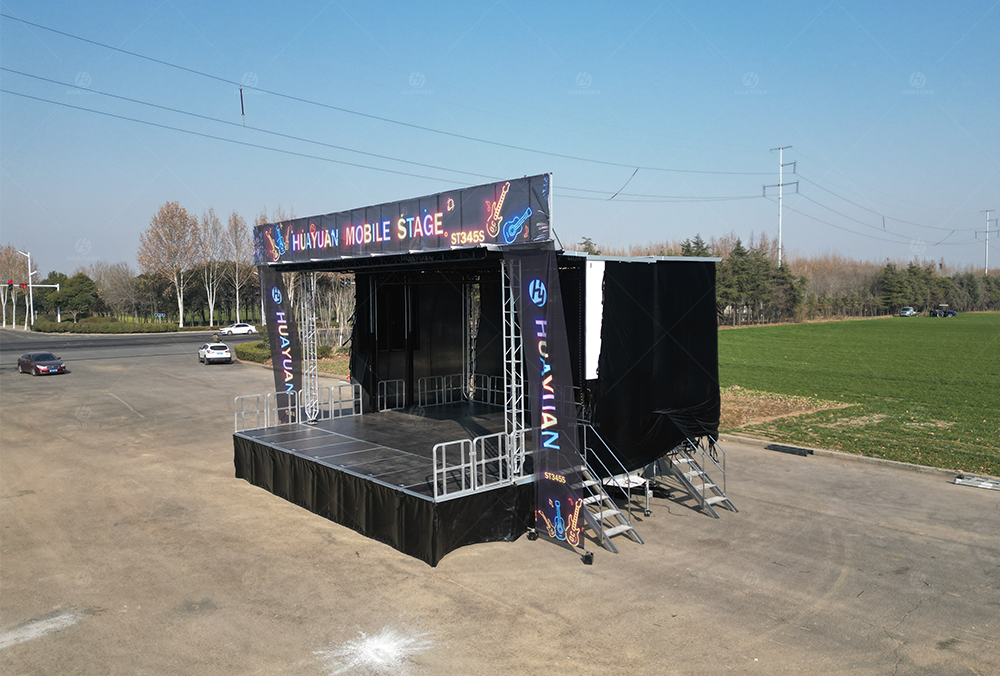

| product name | stage trailer | Model | HY-ST345S | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 9000×2350×3650 | stage size(mm) | 8600×6450 | Curb weight(kg) | 6000 | |||||||||
| Exterior plate material | Honeycomb composite board | stage area | 52-81㎡ | Floor materials | Composite wood floor | |||||||||
| Mesa height(mm) | 1000-1300 | floor loading | 350Kg/㎡ | Lighting truss | Transverse 7 longitudinal 4 | |||||||||
| framework material | steel structure | Set-up | 2×30 minutes | Light truss load bearing | 450 kg / 1 | |||||||||
| Axle number | 2 | axle | 2.5 tons | Brakes | Electromagnetic brake | |||||||||
| brake system | Removable single lever | Tyre number | 4 | Tire model | 7.00R16 | |||||||||
| Wheelbase(mm) | 1050 | Suspension type | Plate spring | Drag cover | 70# | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 5760×2400 | 5760×2400 | 5760×2304 | 5760×2400 | 5760×2400 | |||||||||
| Area (㎡) | 13.8 | 13.8 | 13.3 | 13.8 | 13.8 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
