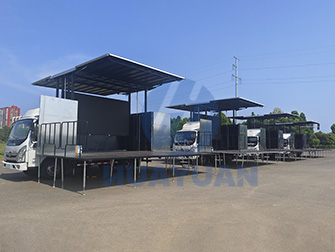

| product name | Mobile stage truck | Model | HY-T135-6 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 6000×2050×2990 | stage size(mm) | 6800×8055 | Curb weight(tons) | 6390 | |||||||||
| Exterior plate material | Honeycomb composite board | stage area | 40㎡ | Floor materials | Composite wood floor | |||||||||
| Mesa height(mm) | 1100 | floor loading | 400Kg/㎡ | framework material | steel structure | |||||||||
| brand | Dongfeng | Chassis models | EQ1080SJ8BDC | Emission standards | Ⅱ、Ⅲ、Ⅳ、Ⅴ、Ⅵ | |||||||||
| Fuel | diesel | Engine type | CY4SK251 | Power （kw） | 95 | |||||||||
| Displacement (ml) | 3760 | Tire size | 6.50-16LT | Axial distance (mm) | 3360 | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 3520×1760 | 3520×1760 | 4416×2112 | 3520×1760 | 3520×1760 | |||||||||
| Area (㎡) | 6.2 | 6.2 | 9.3 | 6.2 | 6.2 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
