HY-T135-3 MOBILE STAGE TRUCK

HY-T135-3 MOBILE STAGE TRUCK

HY-T135-3 is Small gospel truck , beautiful appearance, complete functions, easy to operate, deeply loved by domestic and foreign users.
OVERALL DIMENSION: 5.995M×2.15M×2.95M
Ompartments body size: 4.2m×2.15m
STAGE SIZE: 5m×7.15m
MESA HEIGHT: 1.05m
CURB WEIGHT: 4.25 tons
NELDING: DIESEL
TOWING : TRUCK
*Company/Name:
*Email:
Phone:
Product description
Technical Parameters
Related products
Send Your Inquiry

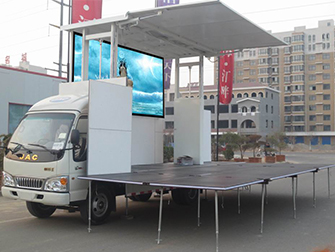

The right side plate and roof are lifted vertically through the hydraulic system to form the stage ceiling.The right side of the internal double folding table hydraulic inversion, forming a performance stage.
According to customer requirements set equipment power supply, light dimming circuit connector;
The car has space for lighting, sound, control equipment and professional distribution cabinet.
All cylinders used in the hydraulic system are equipped with a hydraulic control check valve (hydraulic lock) inside, such as in the case of external damage caused by the pipeline rupture, the system can self-lock protection.
The power supply system of the vehicle is designed and wired according to the external power supply (customized according to the national voltage standard) and the generator. The two power supply systems in the distribution box are controlled separately without interference.
HY-T135-3 MOBILE STAGE TRUCK
STRUCTURAL PARAMETERS OF WHOLE VEHICLE
product name            Mobile stage truck Model               HY-T135-3 Brand                     HUAYUAN
Overall dimension(mm)  5995×2150×2950 stage  size(mm)    5000×7150 Curb weight(tons)          4250
Exterior plate material    Honeycomb composite board stage area      32㎡ Floor materials            Composite wood floor
Mesa height(mm)           1050 floor loading      395Kg/㎡ framework material           steel structure
CHASSIS PARAMETERS
brand                 Fukuda Chassis models     BJ5049XXC-AB Emission standards          Ⅱ、Ⅲ、Ⅳ、Ⅴ、Ⅵ
Fuel               diesel       柴油 Engine type         4J28TC Power (kw)             81
Displacement (ml)    2771 Tire size        6.50-16LT Axial distance (mm)         3360
LED SCREEN PARAMETERS
specifications            P4 P5 P6 P8 P10
Size (mm)             3520×1760 3520×1760 3456×1728 3520×1760 3520×1760
Area (㎡)               6.2 6.2 5.98 6.2 6.2
Module Specification (mm)   320*160 320*160 192*192 320*160 320*160
Screen brightness(cd/m2)   ≥6000 ≥6000   ≥5000   ≥5000   ≥5000
Working voltage(V)        5 5 5 5 5
Refresh rate(Hz)           ≥1920  ≥1920   ≥1920  ≥1920  ≥1920
Service life(hours)        ≥50000   ≥50000  ≥10000  ≥50000   ≥50000
