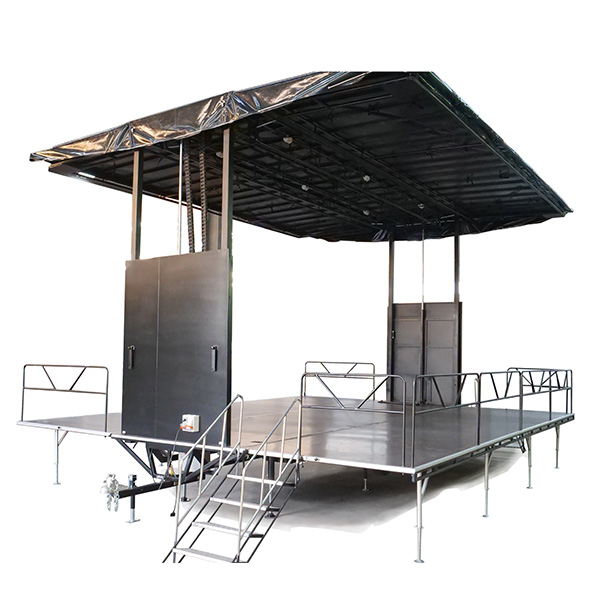

HY-ST345 MOBILE STAGE TRAILER

HY-ST345 MOBILE STAGE TRAILER

ST345 is a mobile stage trailer that can be pulled by a pickup truck or SUV.Beautiful appearance, simple operation, firm structure, compact, is the best choice for large-scale festival activities.
OVERALL DIMENSION: 8M×2.25M×3.43M
STAGE SIZE: 6M×8M up to 7.28M×10.6M
Mesa height: 1M-1.3M
Ceiling height: 5.5M- 5.8M
CURB WEIGHT: ≤3.5tons
RIGGING: 2.5tons
CURTAIN: PVC/MESH CLOTH
TOWING: Pickup/SUV
*Company/Name:
*Email:
Phone:
Product description
Technical Parameters
Related products
Send Your Inquiry

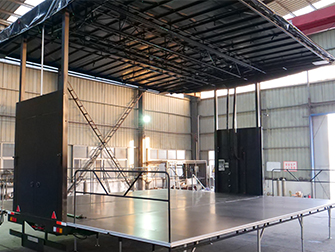

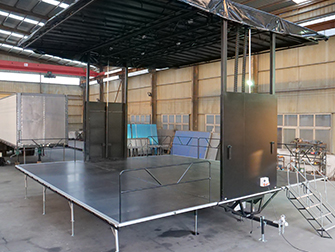

The side panels and roof of the stage are truss structures, and the shade and rain-proof ceiling is formed by hydraulic lifting.
The stage ceiling is provided with a device for hanging lighting, sound, scenery and other performance items.
And according to customer requirements set equipment power supply, light dimming circuit connector;
The car has space for lighting, sound, control equipment and professional distribution cabinet.
The stage and ceiling are fully automated hydraulically operated on and off.
The power supply system of the vehicle is designed and wired according to the external power supply (customized according to the national voltage standard) and the generator. The two power supply systems in the distribution box are controlled separately without interference.
HY-ST345 MOBILE STAGE TRAILER
STRUCTURAL PARAMETERS OF WHOLE VEHICLE
product name        stage trailer  Model              HY-ST345 Brand                   HUAYUAN
Overall dimension(mm) 8000×2250×3430 stage  size(mm)    6000×8000 Curb weight(tons)       3200
Exterior plate material    Honeycomb composite board stage area         48-53㎡ Floor materials        Composite wood floor
Mesa height(mm)            1000-1300 floor loading      350Kg/㎡ Lighting truss       Transverse 7  longitudinal 4
framework material    steel structure Set-up             2×30 minutes Light truss load bearing   450 kg / 1
CHASSIS PARAMETERS
Axle number                 2 axle             2.5 tons  Brakes               Electromagnetic brake
brake system               Removable single lever Tyre number  4 Tire model          7.00R16
Wheelbase(mm)   1050 Suspension type   Plate spring  Drag cover    50#
LED SCREEN PARAMETERS
specifications        P4 P5 P6 P8 P10
Size (mm)        5760×2400 5760×2400 5760×2304 5760×2400 5760×2400
Area (㎡)      13.8 13.8 13.3 13.8 13.8
Module Specification (mm)   320*160 320*160 192*192 320*160 320*160
Screen brightness(cd/m2)   ≥6000 ≥6000   ≥5000   ≥5000   ≥5000
Working voltage(V) 5 5 5 5 5
Refresh rate(Hz)    ≥1920  ≥1920   ≥1920  ≥1920  ≥1920
Service life(hours)   ≥50000   ≥50000  ≥10000  ≥50000   ≥50000
