HY-S795 MOBILE STAGE SEMI TRAILER

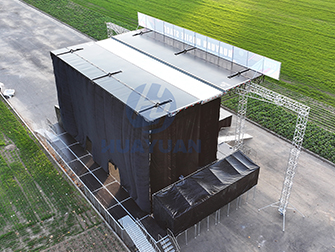

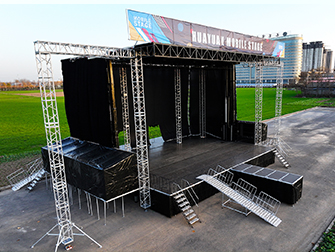

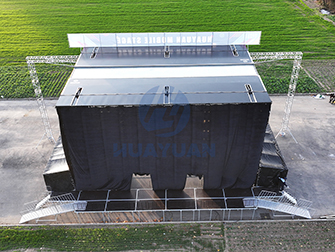

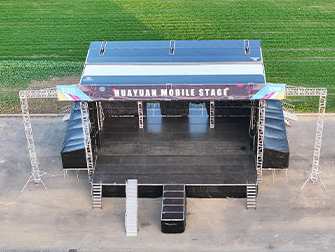

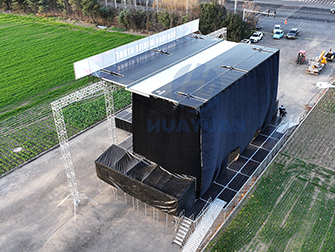

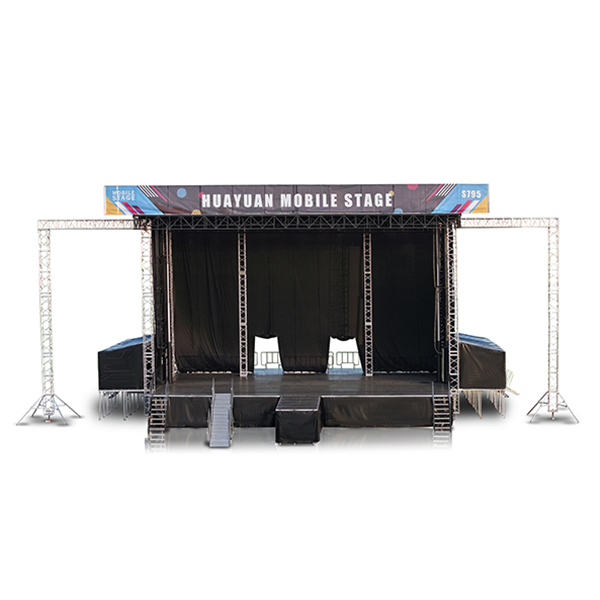

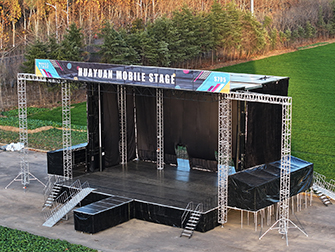

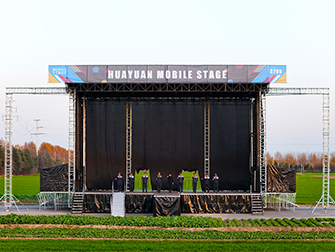

HY-S795 Mobile Stage Semi Trailer — Make Your Outdoor Events Unforgettable Engineered for large-scale events, the HY-S795 unfolds into an impressive 206㎡ hydraulic stage with a towering 9-meter roof height. Whether you're hosting a music festival, cultural celebration, or religious gathering, this fully automated stage system offers unmatched size, speed, and stability. From remote-controlled setup to reinforced structure and customizable layout, it’s built to impress — and perform — in any outdoor environment.

OVERALL DIMENSION: 17M×2.7M×4.4M

STAGE SIZE: 15.7M×13.1M

Mesa Height/Downstage Height: 1.8M

Upstage Height: 9M

CURB WEIGHT: 21.5 tons

RIGGING: 13.5 tons

CURTAIN: PVC/MESH CLOTH

TOWING: TOW TRUCK

REQUEST A QUOTE

Share With:

Product description

Massive 206㎡ Hydraulic Stage: The HY-S795 offers a giant 206㎡ performance space with a 9-meter roof height, making it ideal for outdoor concerts, festivals, and public gatherings. Its sheer scale delivers strong visual impact and accommodates large production needs.

Full Hydraulic Deployment: Equipped with a remote-controlled hydraulic system, the stage unfolds quickly and smoothly. Main stage, extended platforms, canopy, and stabilizing legs all operate in sync, reducing setup time and labor.

Durable, Weather-Resistant Design: The stage surface combines 18mm and 12mm anti-slip waterproof boards, built to endure rain, sunlight, and heavy foot traffic without warping or damage — ideal for long outdoor use.

Stable Truss Structure: Combined with built-in adjustable hydraulic legs, it ensures the stage remains steady even on uneven ground.

Quick and easy to move: HY-S795 can be towed by a semi-trailer, designed to achieve safe transportation and convenient deployment. It is a reliable choice for professional stage teams and mobile event organizers.

Technical Parameters

STRUCTURAL PARAMETERS OF WHOLE VEHICLE

product name

17m stage semi trailer

Model

HY-S795

Brand

HUAYUAN

Overall dimension(mm)

17000×2700×4400

stage size(mm)

15700×13100

Curb weight(tons)

21.5

Exterior plate material

FRP composite panel

stage area (㎡)

206

Floor materials

Composite wood floor

Mesa height(mm)

1810

floor loading（Kg/㎡）

550

Lighting truss

Total 11

framework material

steel structure

Set-up

2×2hours

Light truss load bearing kg / 1

600

CHASSIS PARAMETERS

Axle number

axle

13 tons Fuhua bridge

Brakes

exhaust brake

brake system

ABS(EBS)

Tyre number

8+1

Tire model

10.00R20

Wheelbase(mm)

7740

Suspension type

Plate spring

Traction pin

90#

LED SCREEN PARAMETERS

specifications

P10

Size (mm)

6400×3200

6528×3264

6400×3200

Area (㎡)

20.48

21.3

20.48

Module Specification (mm)

320*160

192*192

320*160

Screen brightness（cd/m2）

≥6000

≥5000

Working voltage（V）

Refresh rate（Hz)

≥1920

Service life（hours）

≥50000

≥10000

≥50000
