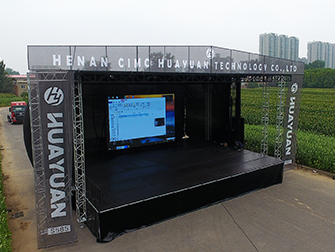

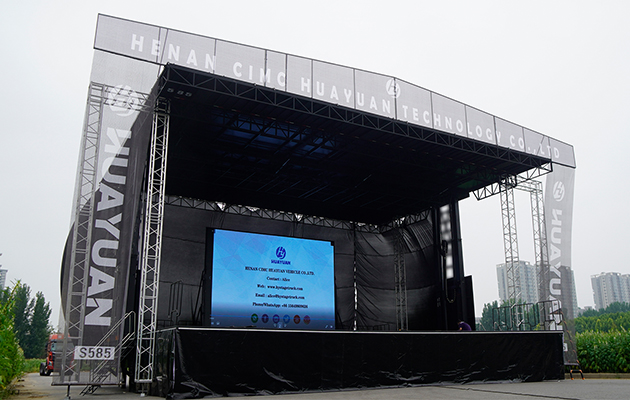

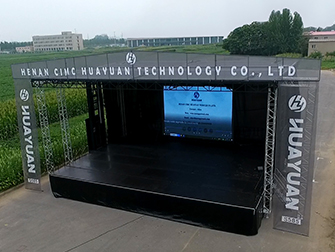

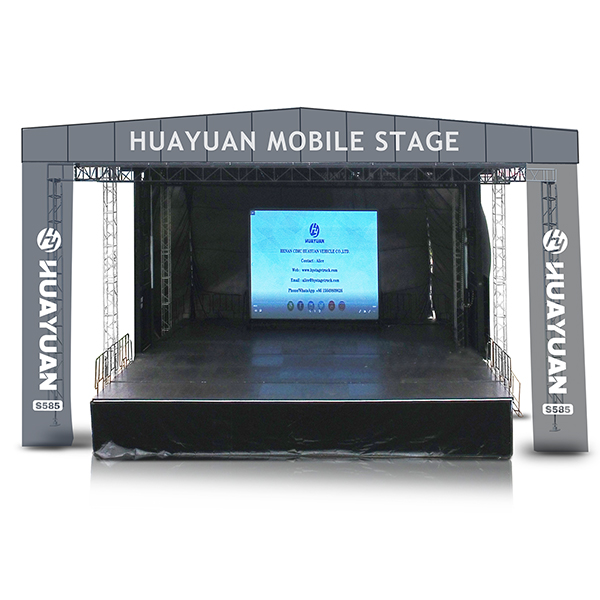

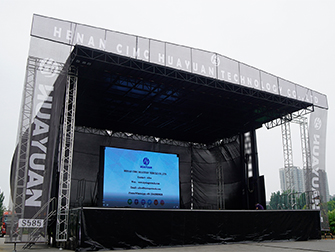

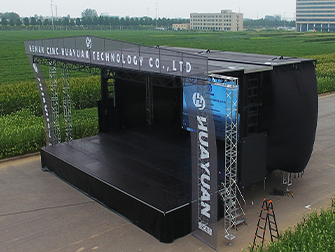

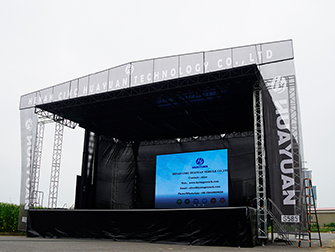

| product name | 15.3m stage semi trailer | Model | HY-S585 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 15300×2800×4200 | stage size(mm) | 14000×12000 | Curb weight(tons) | 25 | |||||||||
| Exterior plate material | FRP composite panel | stage area (㎡) | 168 | Floor materials | Composite wood floor | |||||||||
| Mesa height(mm) | 1600 | floor loading（Kg/㎡） | 650 | Lighting truss | Total 11 | |||||||||
| framework material | steel structure | Set-up | 2×1.5 hours | Light truss load bearing kg / 1 | 600 | |||||||||
| Axle number | 2 | axle | 13 tons Fuhua bridge | Brakes | exhaust brake | |||||||||
| brake system | ABS(EBS) | Tyre number | 8+1 | Tire model | 10.00R20 | |||||||||
| Wheelbase(mm) | 7740 | Suspension type | Plate spring | Traction pin | 90# | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 6400×3200 | 6400×3200 | 6528×3264 | 6400×3200 | 6400×3200 | |||||||||
| Area (㎡) | 20.48 | 20.48 | 21.3 | 20.48 | 20.48 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
