HY-S425 MOBILE STAGE SEMI TRAILER

Take your outdoor events to the next level with the HY-S425 Mobile Stage Semi Trailer — a professional-grade hydraulic stage built for maximum impact and efficiency. With an expansive 83㎡ anti-slip platform, reinforced roof truss, and excellent wind resistance, this unit is engineered for concerts, festivals, church gatherings, and large-scale roadshows. Fast setup, powerful load capacity, and a sleek fiberglass exterior make it a standout solution for mobile performances anywhere.

OVERALL DIMENSION: 10M×2.5M×4M

STAGE SIZE: 9.7M×8.58M

Mesa Height/Downstage Height: 1.5M

Floor to roof height 6.05M

CURB WEIGHT: 12.4 tons

RIGGING: 10tons

CURTAIN: PVC/MESH CLOTH

TOWING: TOW TRUCK

REQUEST A QUOTE

Share With:

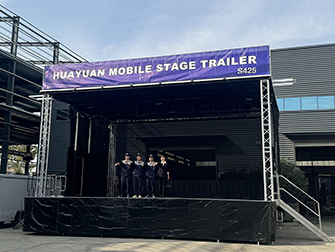

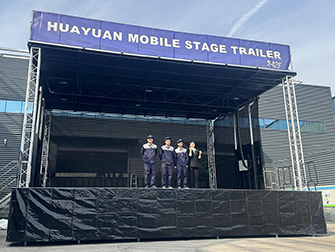

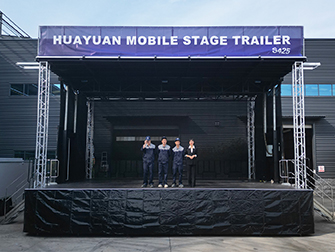

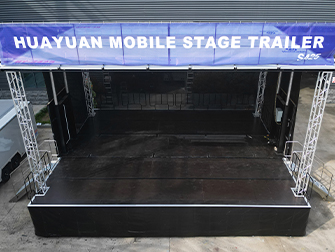

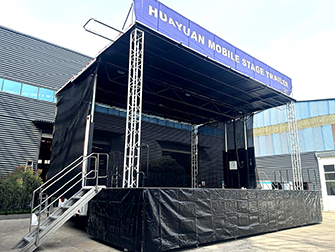

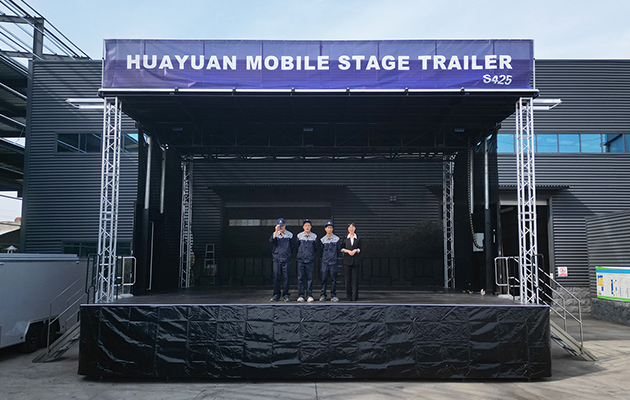

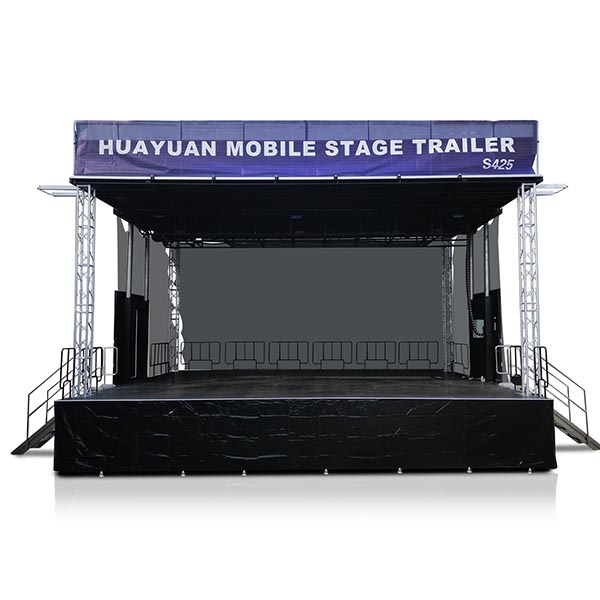

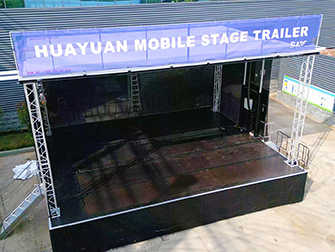

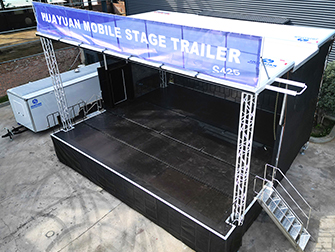

HY-S425 mobile stage semi trailer for outdoor events

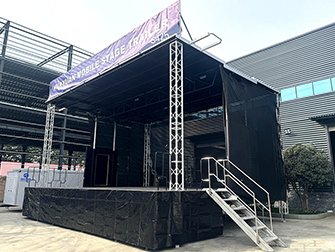

hydraulic mobile stage trailer with roof truss system

83㎡ concert stage semi trailer for roadshows

portable stage trailer with lighting and speaker racks

professional outdoor event stage with banner mounts

mobile stage trailer with fiberglass honeycomb roof

high wind resistance stage trailer for live shows

custom mobile stage trailer for commercial promotions

Product description

Quick Hydraulic Setup:Equipped with a smart hydraulic control system, the HY-S425 mobile stage can be deployed and retracted quickly, saving valuable setup time and ensuring smooth event preparation with minimal manual labor.

Compact Transport, Large Stage:The 10-meter-long, 2.5-meter-wide semi-trailer meets most road transport standards while delivering an impressive 9.7m × 8.58m stage surface. Perfect for medium to large outdoor performances, this design offers both convenience and a wide performance area.

Heavy Load & Rigging Support:Supports 626 kg/m² with built-in banner racks, lighting truss, and speaker mounts—perfect for professional sound, lighting, and branding setups.

Built with high-strength materials, a tandem axle, and a stable suspension system,the S425 offers lasting durability and wind resistance up to 115 km/h, ensuring reliable performance in tough conditions.

Versatile Event Use:Whether it's an outdoor music festival, church service, product launch, community celebration, or promotional roadshow, the HY-S425 mobile stage trailer is a reliable, professional solution for any mid-sized event setup.

Technical Parameters

STRUCTURAL PARAMETERS OF WHOLE VEHICLE

product name

10m stage semitrailer

Model

HY-S425

Brand

HUAYUAN

Overall dimension(mm)

10000×2500×4000

stage size(mm)

9700×8580

Curb weight(tons)

12.4

Exterior plate material

FRP composite panel

stage area (㎡)

Floor materials

Composite wood floor

Mesa height(mm)

1500

floor loading（Kg/㎡）

620

Lighting truss

Total 11

framework material

steel structure

Set-up

2×1.5 hours

Light truss load bearing kg / 1

600

CHASSIS PARAMETERS

Axle number

axle

13 tons Fuhua bridge

Brakes

exhaust brake

brake system

ABS(EBS)

Tyre number

8+1

Tire model

10.00R20

Wheelbase(mm)

7740

Suspension type

Plate spring

Traction pin

90#

LED SCREEN PARAMETERS

specifications

P10

Size (mm)

6400×3200

6528×3264

6400×3200

Area (㎡)

20.48

21.3

20.48

Module Specification (mm)

320*160

192*192

320*160

Screen brightness（cd/m2）

≥6000

≥5000

Working voltage（V）

Refresh rate（Hz)

≥1920

Service life（hours）

≥50000

≥10000

≥50000
