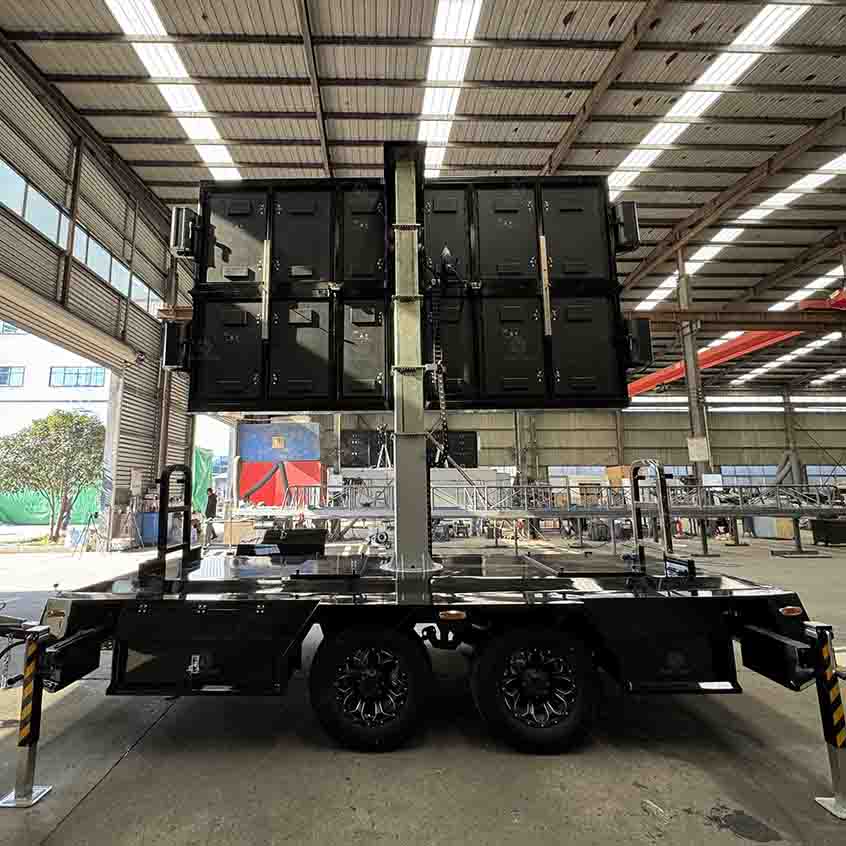

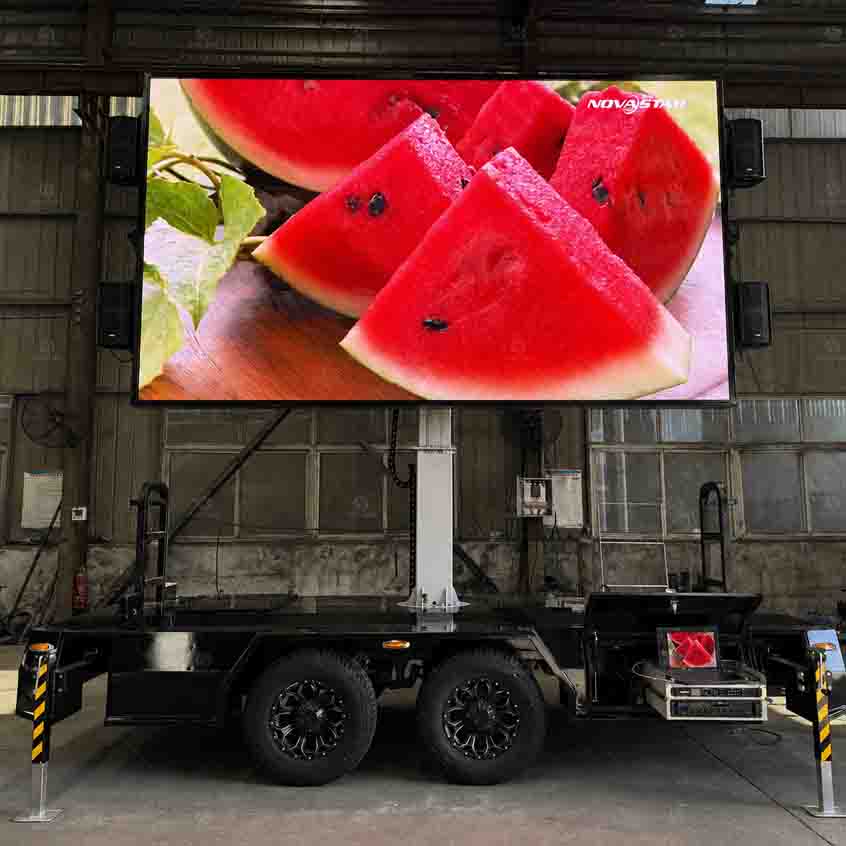

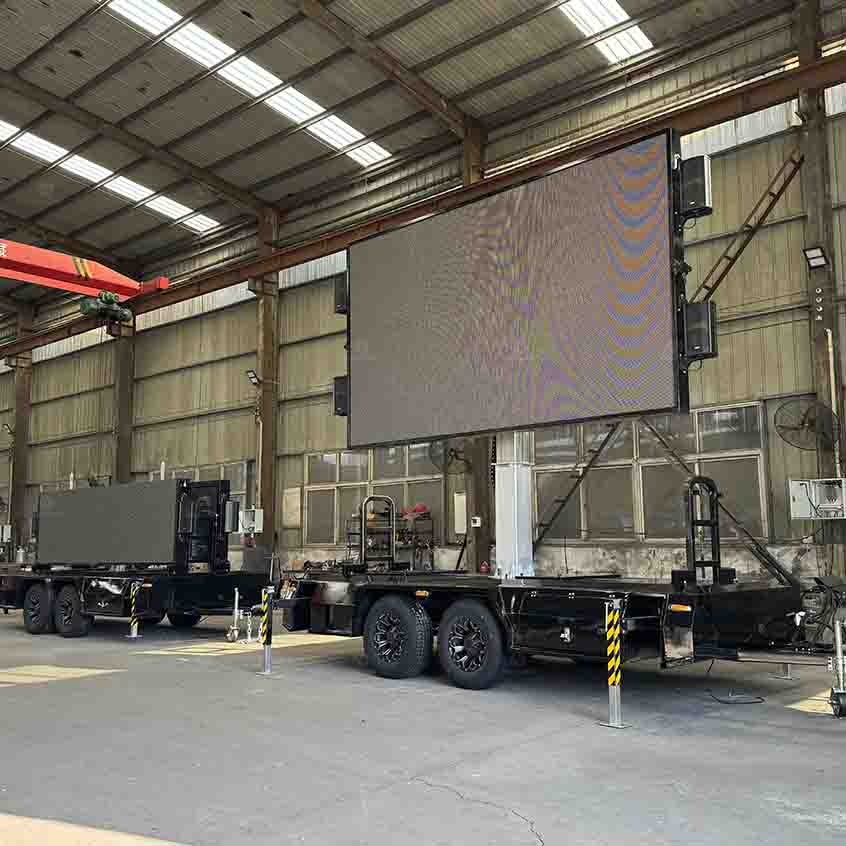

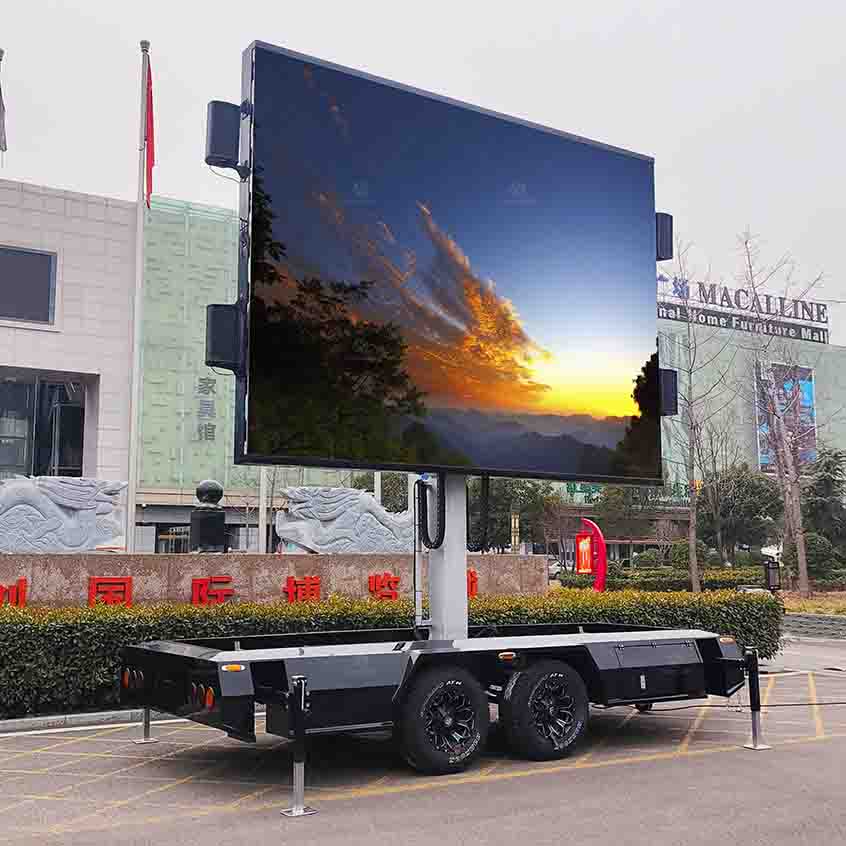

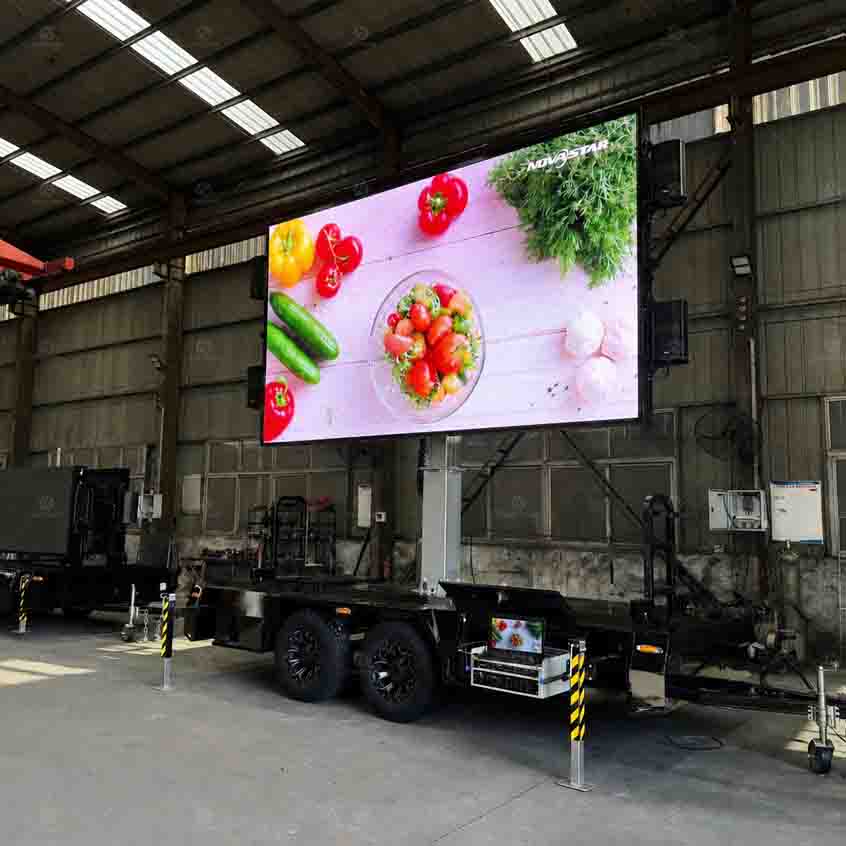

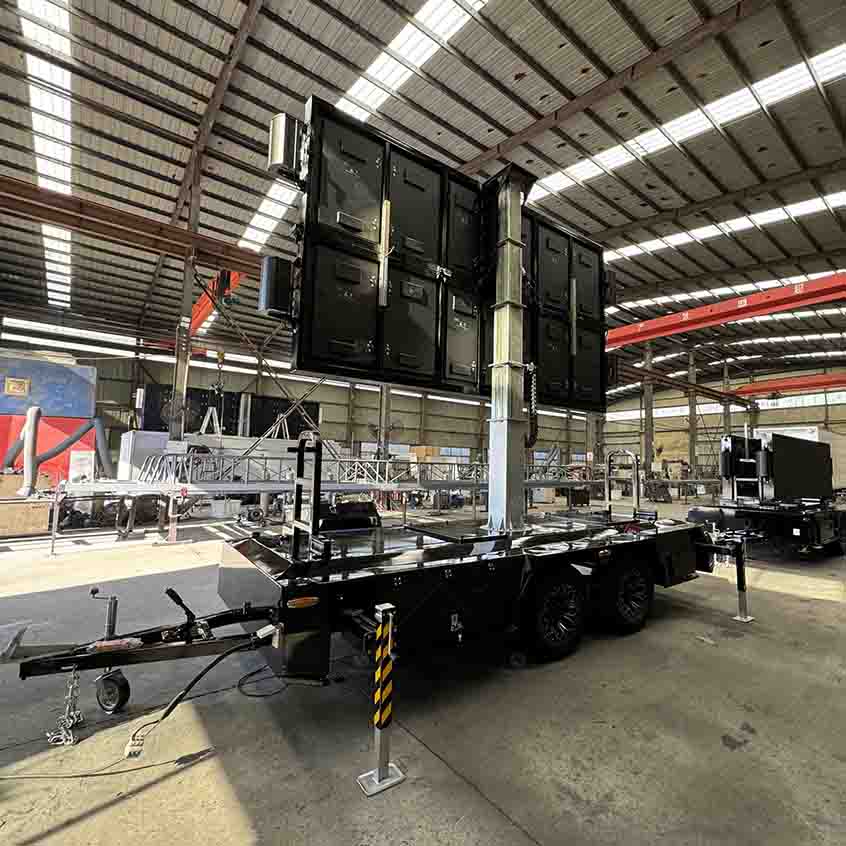

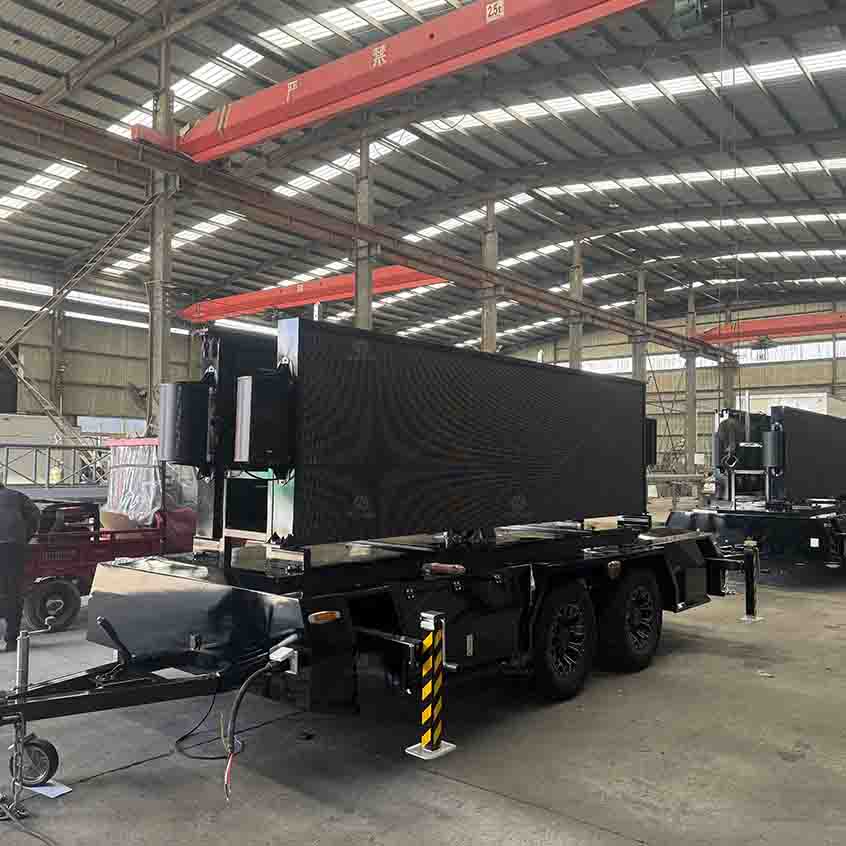

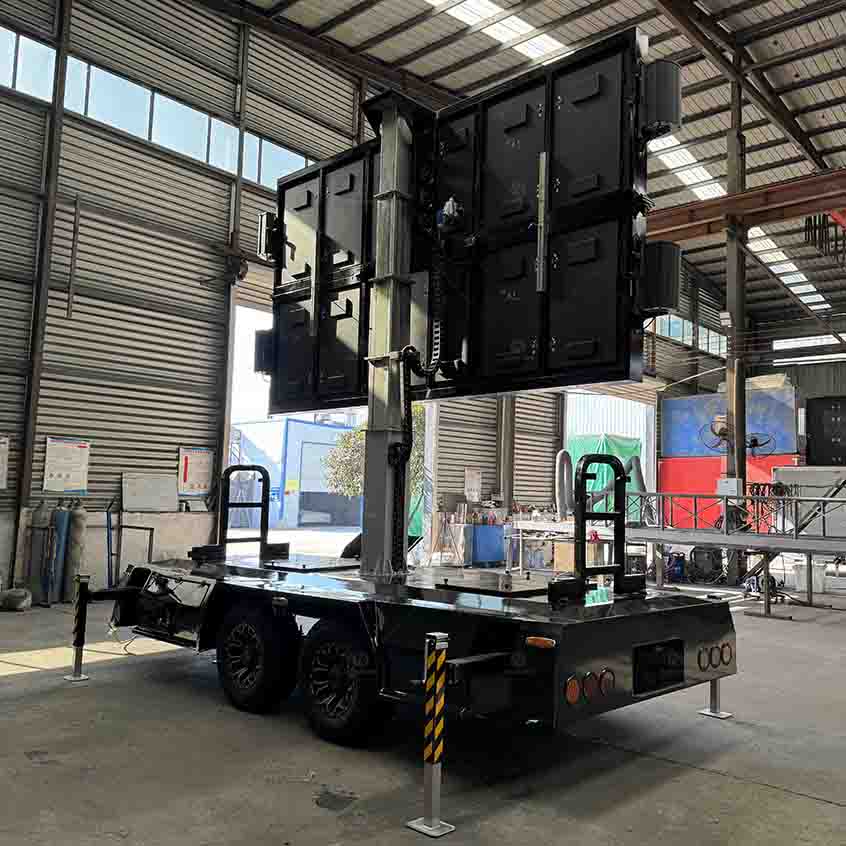

The LT10 Hydraulic Folding LED Screen Trailer combines transportation, hydraulic operation and outdoor digital display into one compact mobile solution. Its hydraulic folding LED screen expands to a 4160 × 2240 mm display, providing a larger viewing area while reducing transportation dimensions.
Equipped with 1370 mm hydraulic lifting, 360° remote-controlled rotation, and high-brightness LED panels, the trailer delivers excellent visibility for outdoor advertising and live events. Multiple pixel pitch options (P3, P4, P5 and P6) allow customers to choose the most suitable resolution for different viewing distances.
Designed with a dual axle chassis and multiple braking options, the LT10 is easy to transport and quick to deploy by a single operator. It is widely used for advertising campaigns, concerts, exhibitions, sports events, government information displays and brand promotions. HUAYUAN also offers customized screen sizes, trailer configurations and optional power solutions to meet different project requirements.
| product name | LED billboard trailer | Model | HY-LT10 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 4800×2100×2370 | Maximum speed | 100Km/h | weight(kg) | 2970 | |||||||||
| Lifting way | hydraulic system | stable system | Semi-automatic screw type | power distribution | mains supply /generator | |||||||||
| framework material | steel structure | Outrigger | Mechanical expansion | Braking mode | Bump/electric/hand brake | |||||||||
| TOWING | PICKUP/SUV | Tyre | 265/70R16LT | Brakes | Bump/electric/hand brake | |||||||||
| Suspension type | Plate spring | Control card | Nova | LED Dimension (mm)) | 320(W)×160(H） | |||||||||
| LED Brightness | 5000-6000 nits | Max power | 850watts/sqm | Average power | 280watts/sqm | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 5440×3200 | 5440×3200 | 5376×3264 | 5440×3200 | 5440×3200 | |||||||||
| Area (㎡) | 17.4㎡ | 17.4㎡ | 17.55㎡ | 17.4㎡ | 17.4㎡ | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
