HY-LT28 LED ADVERTISING TRAILER

The HY-LT28 carries a 7000 × 4000 mm outdoor LED screen on a tandem-axle trailer. Four stabilizing legs support the trailer during operation. Once positioned, the screen can be raised by 1530 mm and rotated through 360° to face the required viewing area. One operator can normally complete deployment in about 30 minutes. With a 28 sqm screen and a relatively compact trailer body, the LT28 suits projects that need a large viewing area without using an LED semi-trailer. It can be moved between sports grounds, public screenings, festivals and outdoor advertising locations. Customers can select the LED pixel pitch, power supply, control equipment, braking system and trailer coupler according to the viewing distance, local power conditions and destination-market requirements.

LED SCREEN SPECIFICATIONS: P3/P3.91/P4.81 (selectable)

LED SCREEN SIZE: 7000mm x 4000mm

Setup time: 1 people / 30 minutes

Lift/rotate: 1000mm/Manual 360°

OVERALL DIMENSION: 7500MMx2250MMx2930MM

WEIGHT: 4800(kg)

REQUEST A QUOTE

Share With:

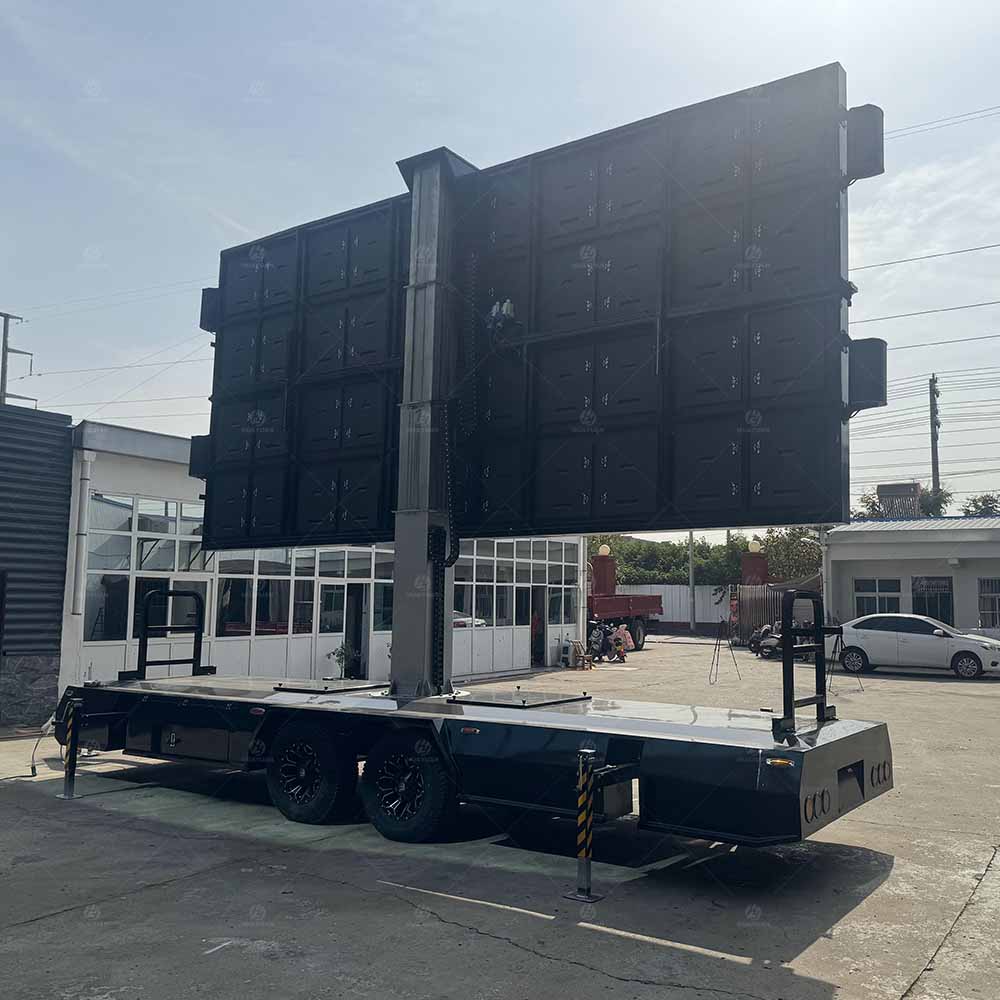

HY-LT28 raised LED screen with rear service modules

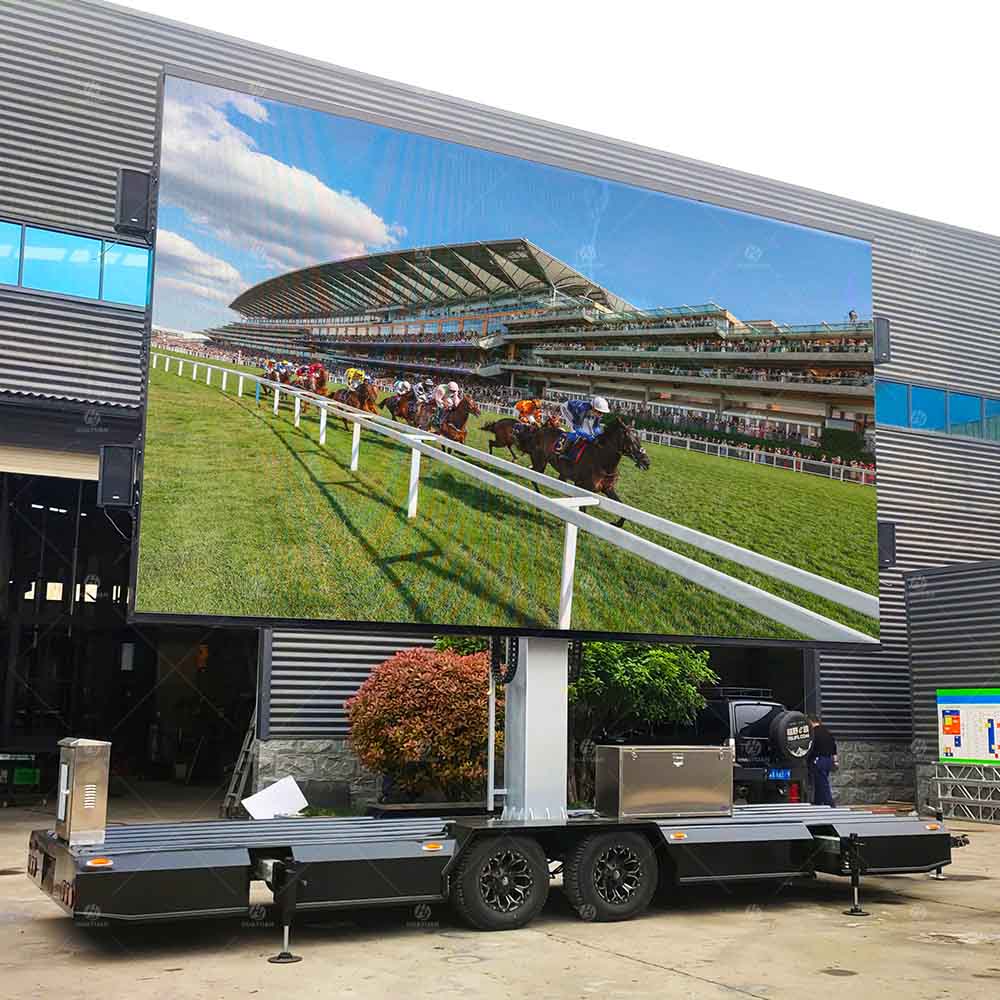

HY-LT28 28 sqm rotating LED screen trailer

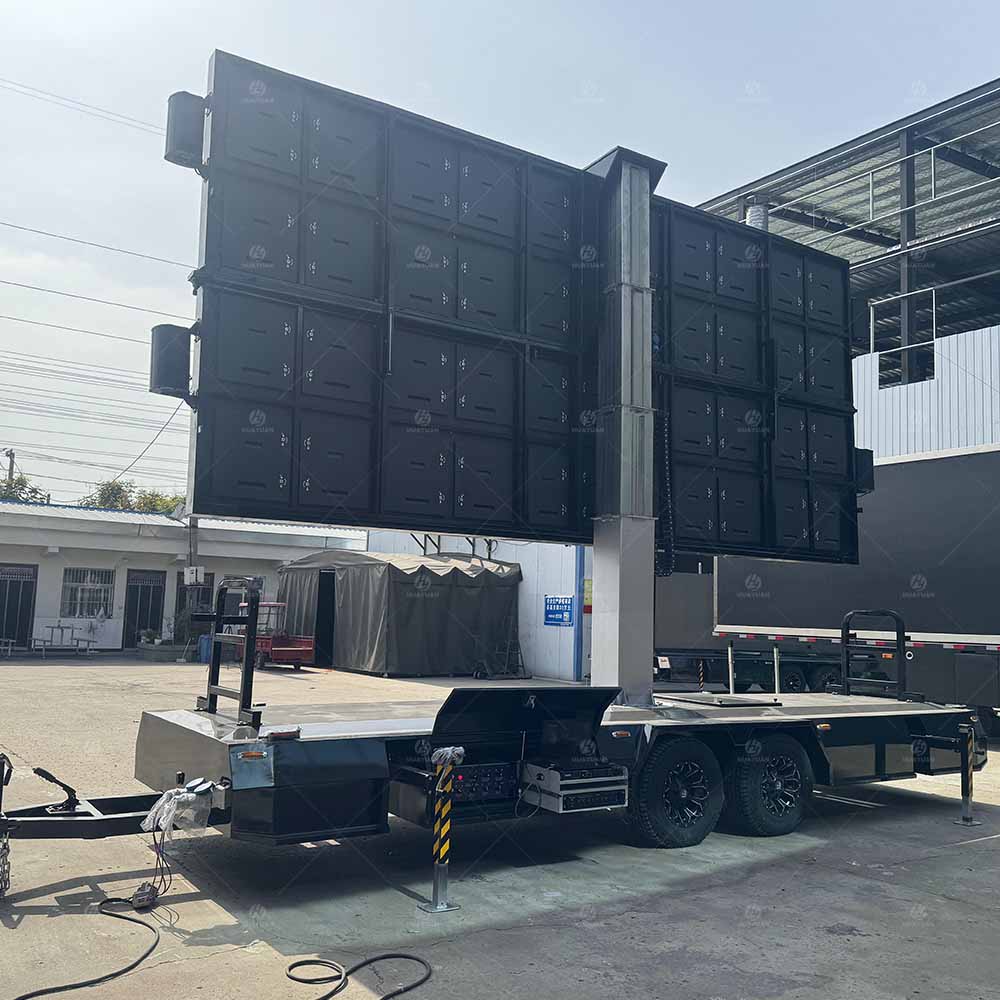

LT28 LED screen trailer with onboard control equipment

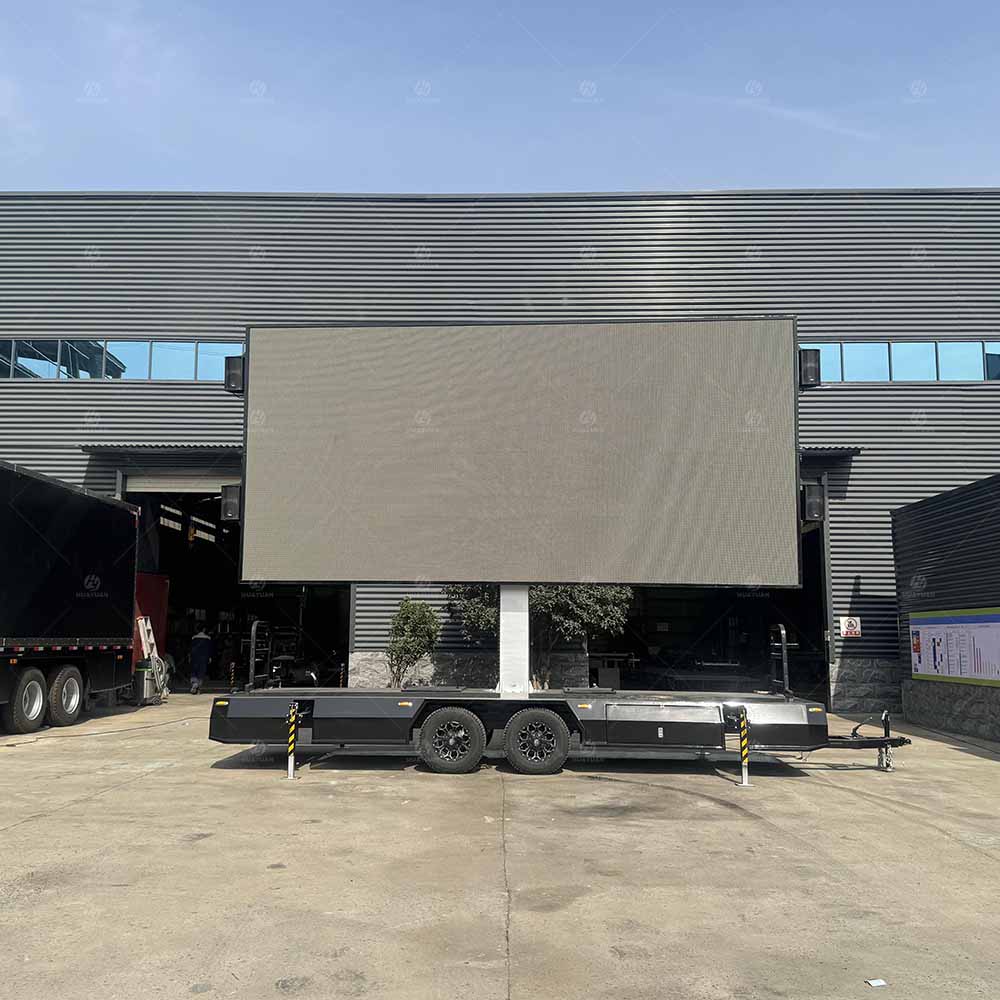

LT28 outdoor LED display trailer during screen testing

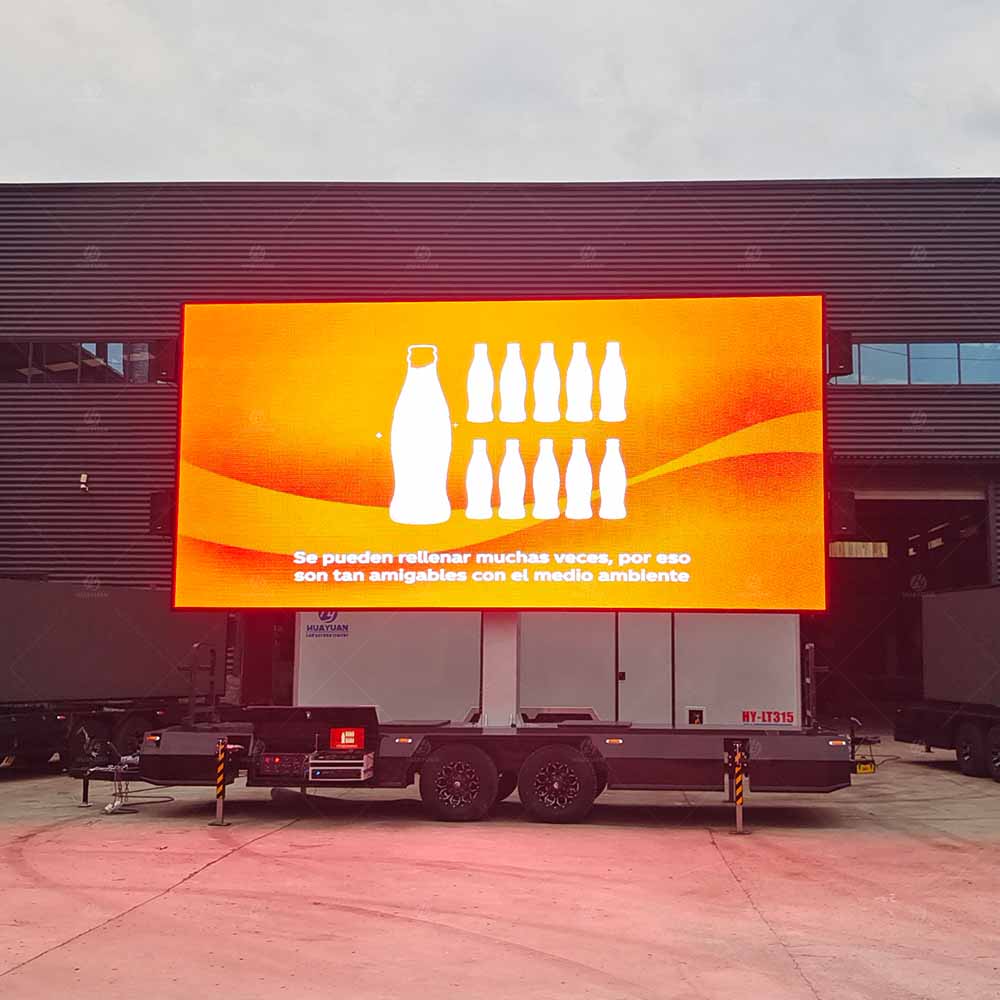

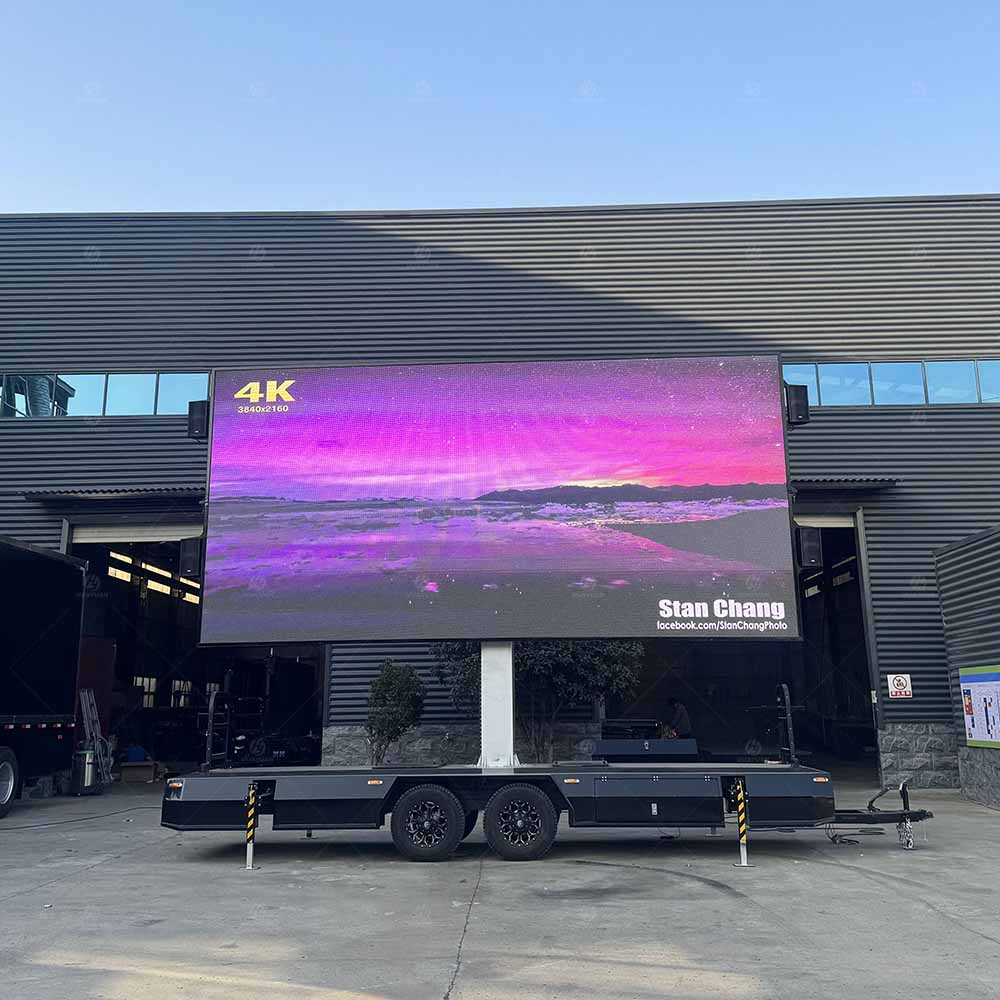

LT28 mobile LED billboard displaying advertising video

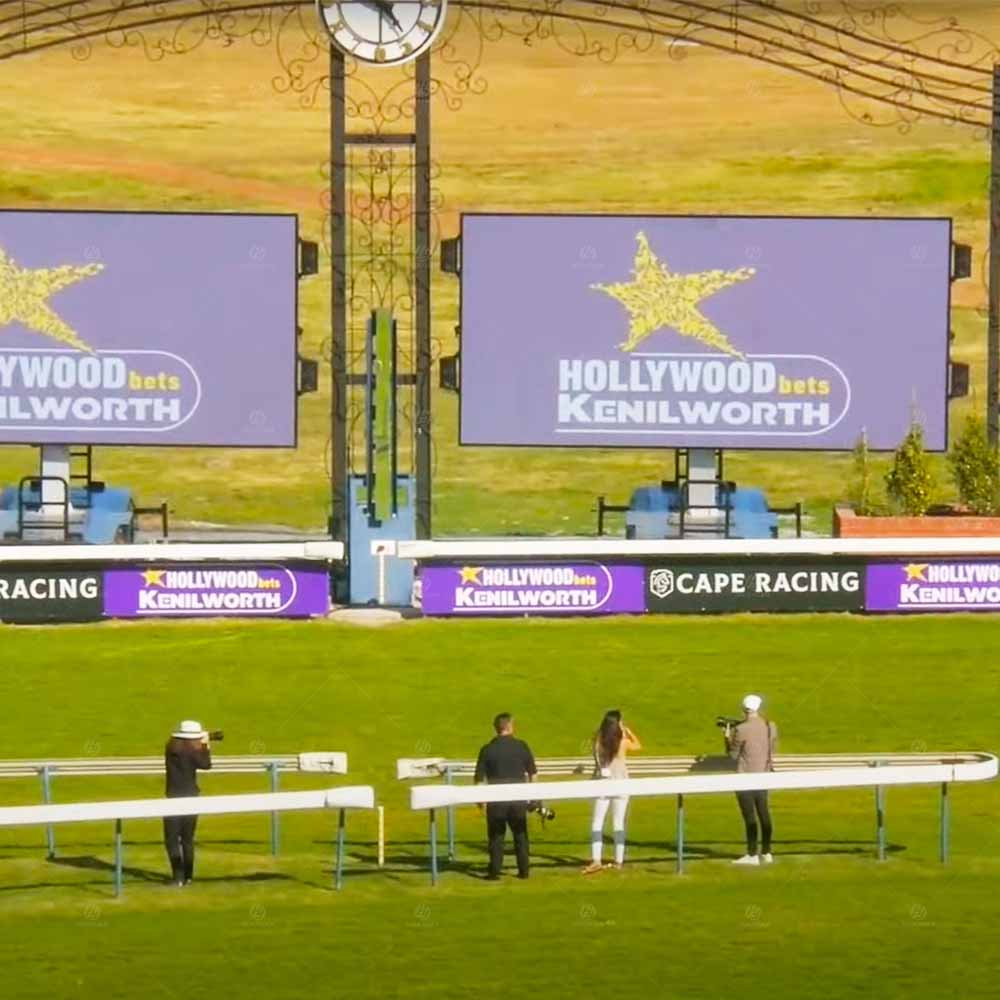

Two mobile LED screen trailers at a South Africa racing event

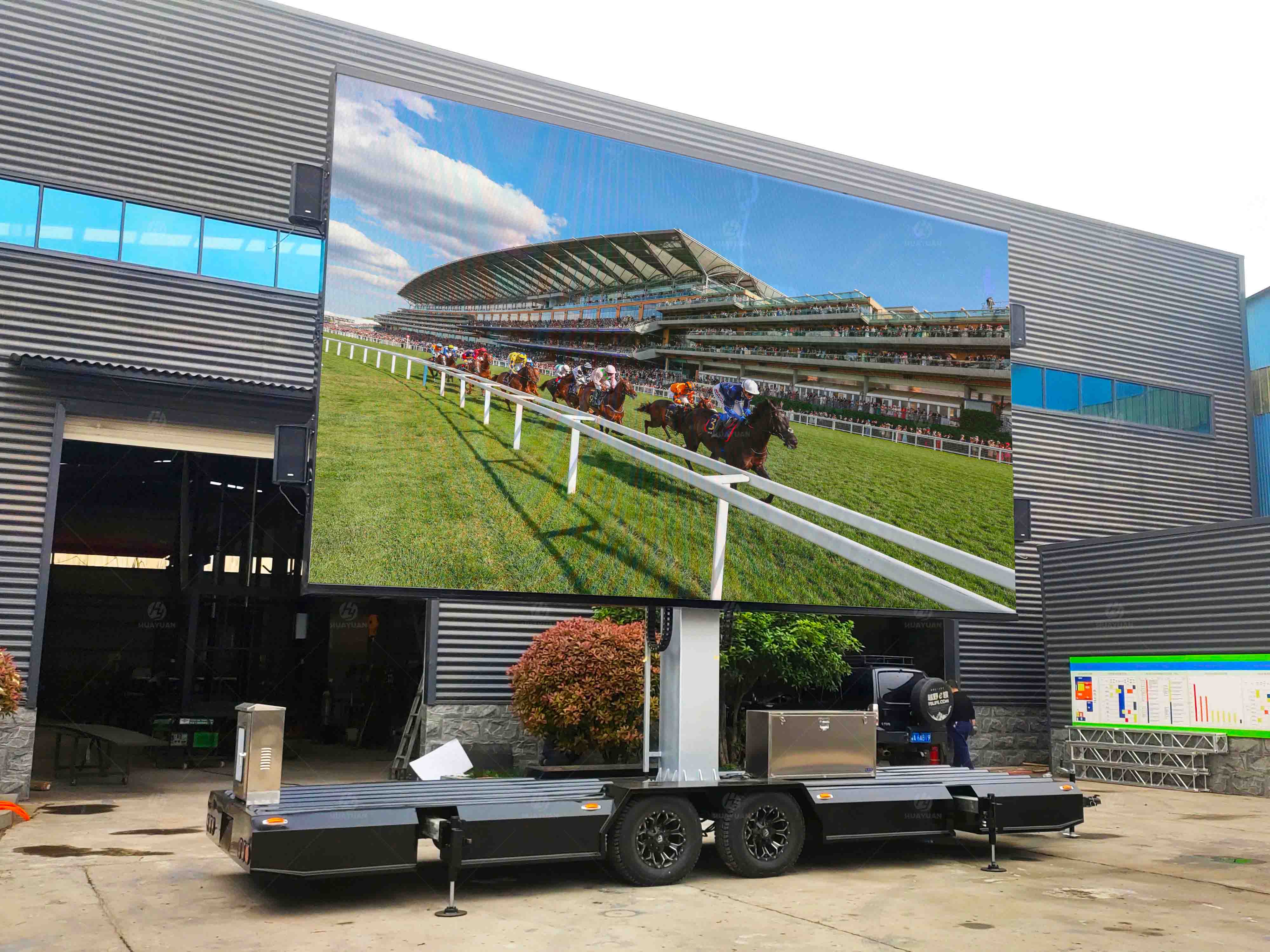

HY-LT28 360 degree rotating LED screen trailer

Product description

The LT28 uses a tandem-axle trailer and a centrally mounted lifting column to carry its 7000 × 4000 mm LED screen. During transport, the screen remains in the lowered position. At the venue, the trailer is levelled on four stabilizing legs before the screen is raised. The 1530 mm lifting range and 360° rotation allow the operator to adjust the screen direction to suit the actual audience position.

LED pixel pitches including P3, P3.91 and P4.81 are available for different viewing distances. The power distribution and media control equipment are installed on the trailer, with access compartments provided for operation and maintenance. This keeps the main display equipment together when the trailer is moved between locations.

The tandem-axle layout gives the LT28 a smaller transport footprint than a large LED screen semi-trailer while still providing a 28 m² display. It is suitable for sports grounds, public viewing events, commercial promotions and other projects where the screen needs to be used at more than one location.

Trailer couplers, braking systems and electrical connections can be configured for the destination market. Before placing an order, customers should confirm the local towing requirements, available power supply, preferred LED pixel pitch and expected viewing distance. HUAYUAN can then prepare the trailer and screen configuration around the actual project conditions.

Technical Parameters

PARAMETERS

product name

LED billboard trailer

Model

HY-LT28

Brand

HUAYUAN

Overall dimension(mm)

7500 x 2250 x 2930

Braking mode:

Bump/ electric/hand brake

Trailer Coupler:

USA/ European/ Australian standard

Lifting way

hydraulic system

Brightness:

5000-5500nits

Lift / rotate:

1530 mm/telecontrol 360°

framework material

steel structure

Max power:

850watts/sqm

Maximum speed:

100Km/h

LED SCREEN PARAMETERS

specifications

P10

Size (mm)

4480×2080

4680×2112

4480×2080

Area (㎡)

9.31

9.88

9.31

Module Specification (mm)

320*160

192*192

320*160

Screen brightness（cd/m2）

≥6000

≥5000

Working voltage（V）

Refresh rate（Hz)

≥1920

Service life（hours）

≥50000

≥10000

≥50000
