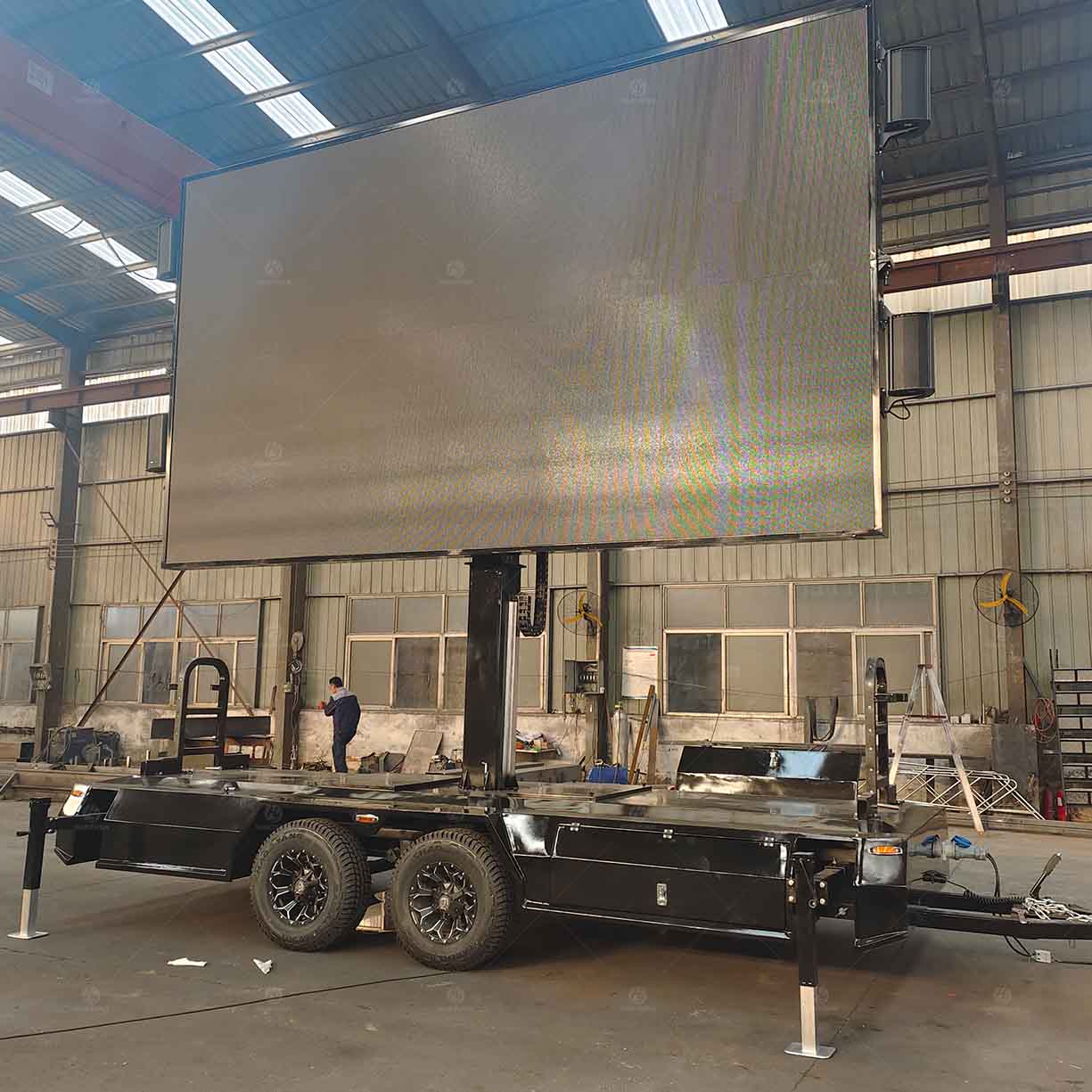

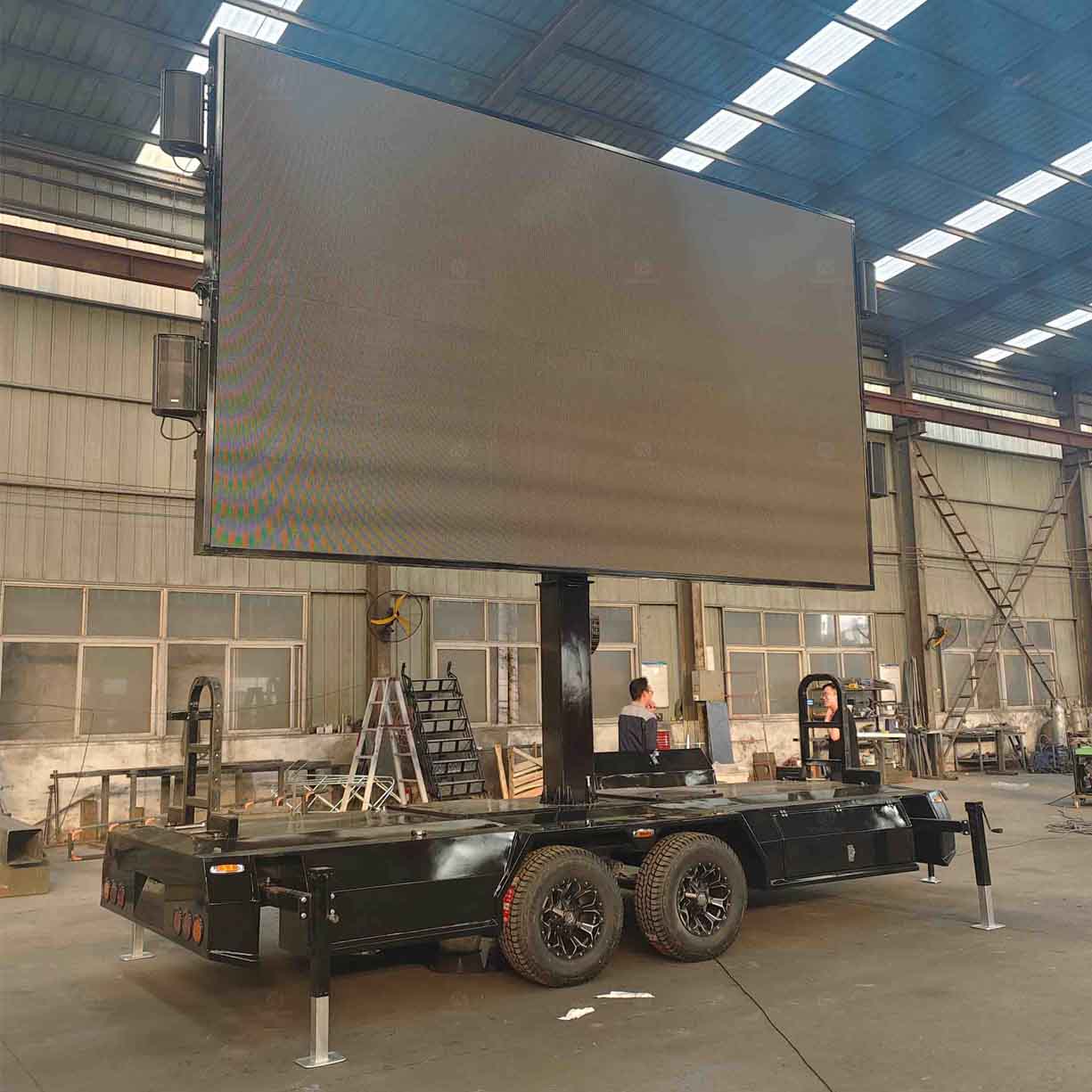

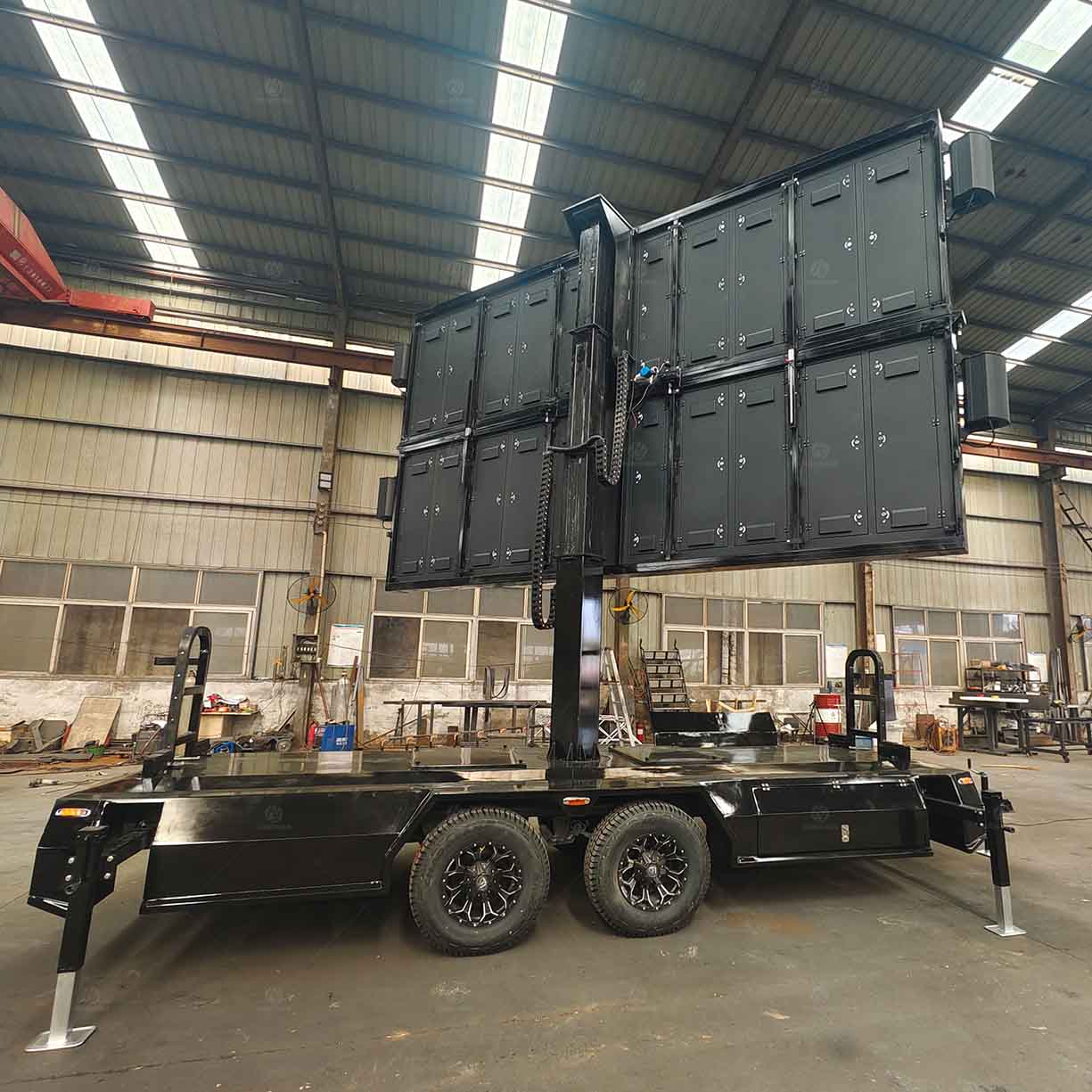

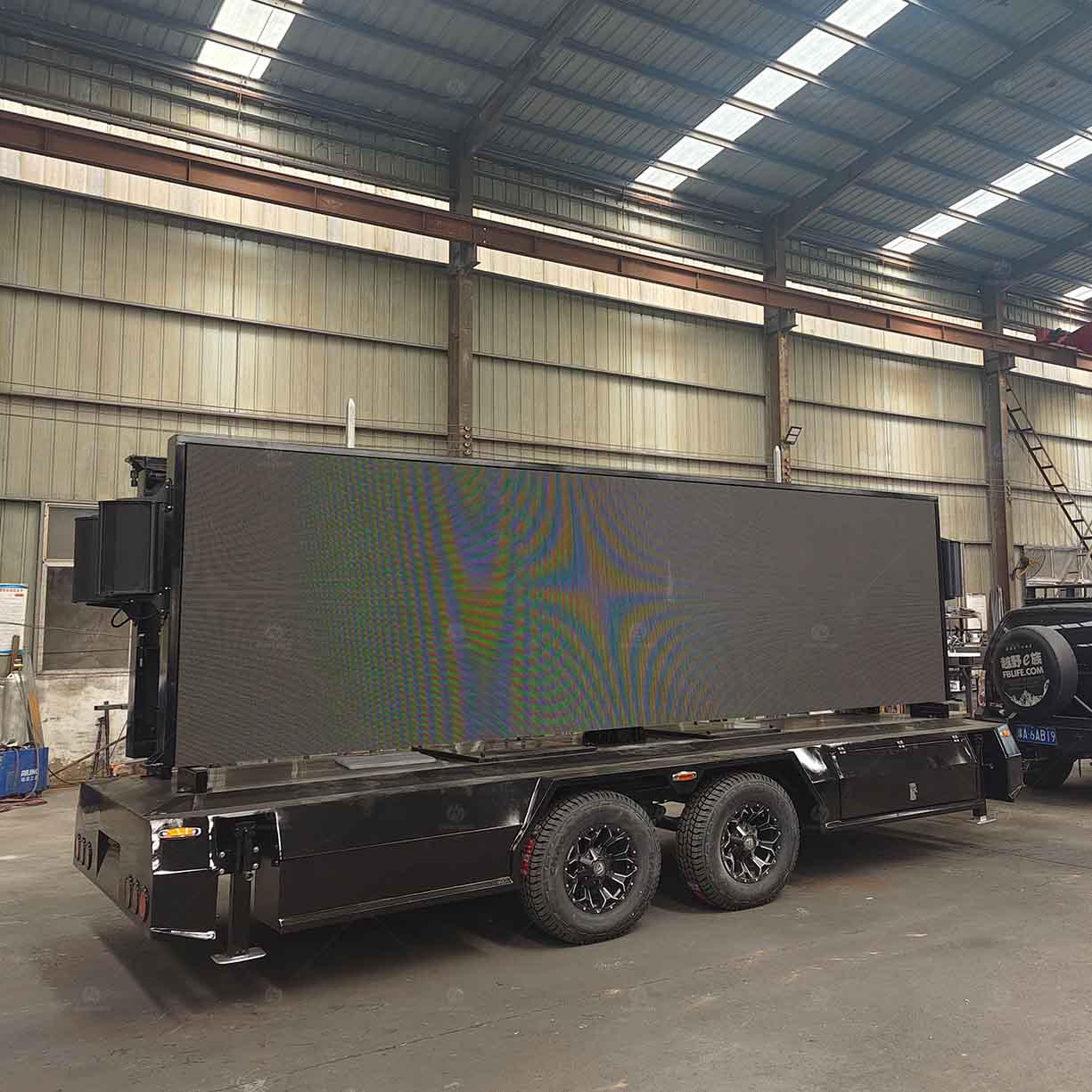

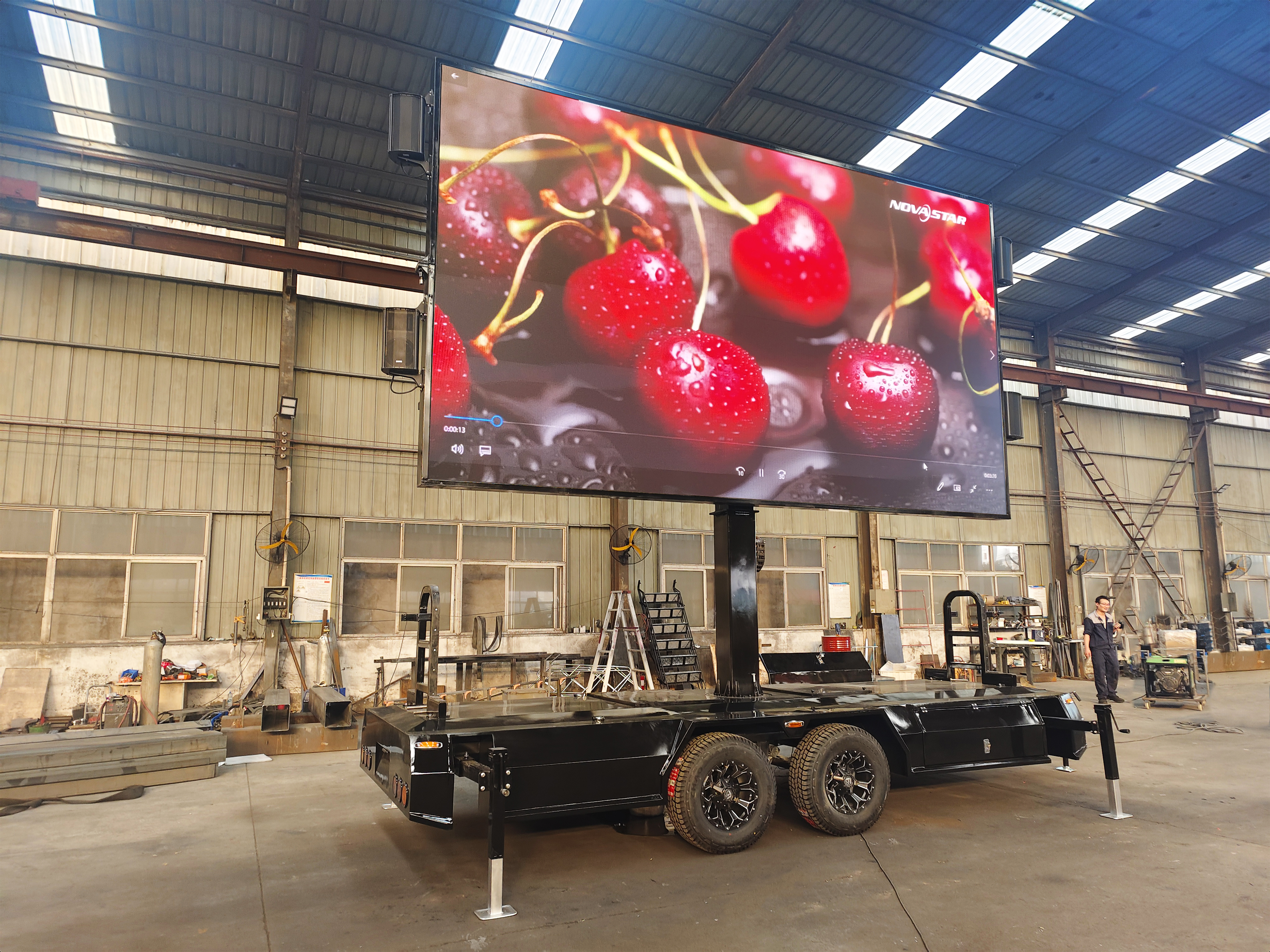

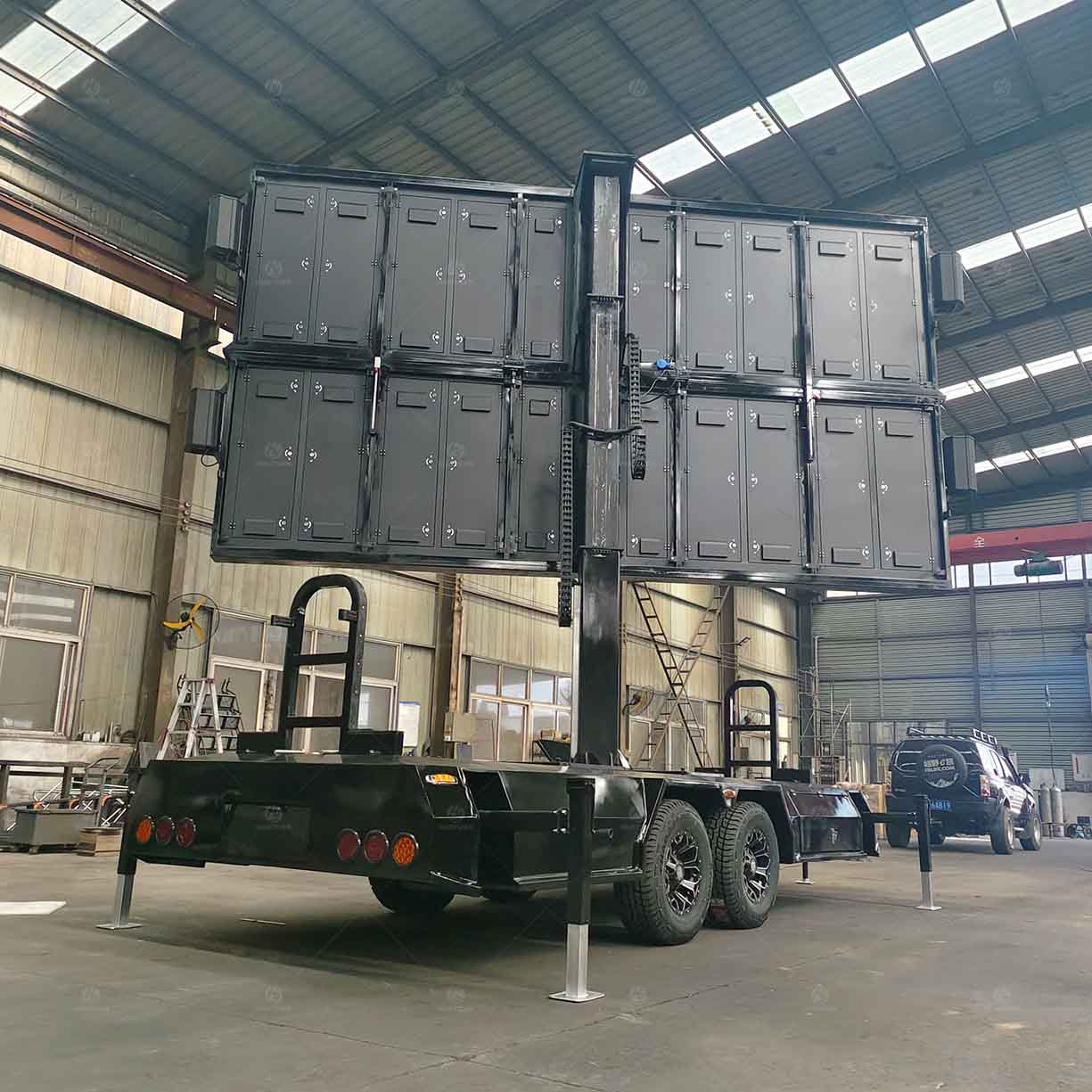

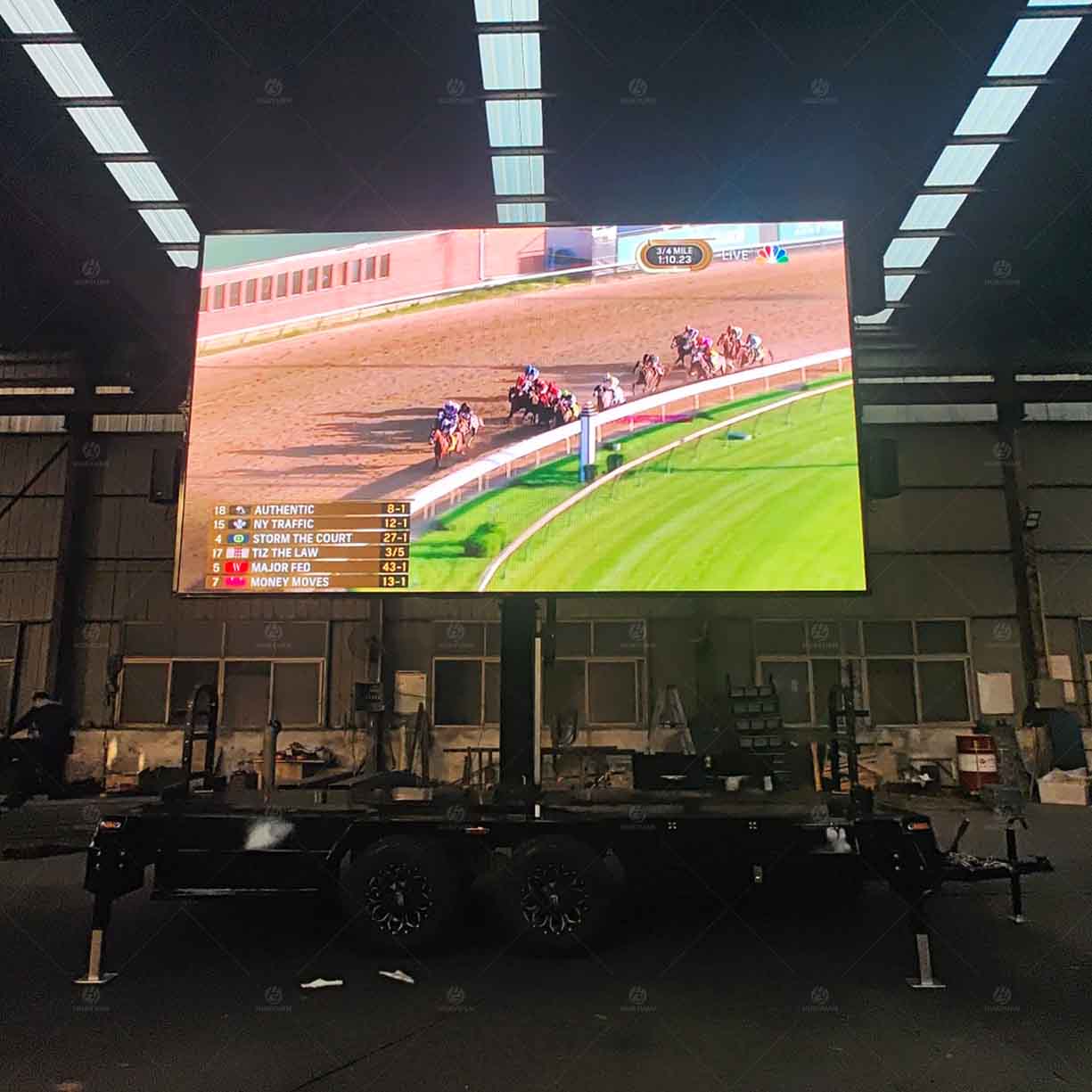

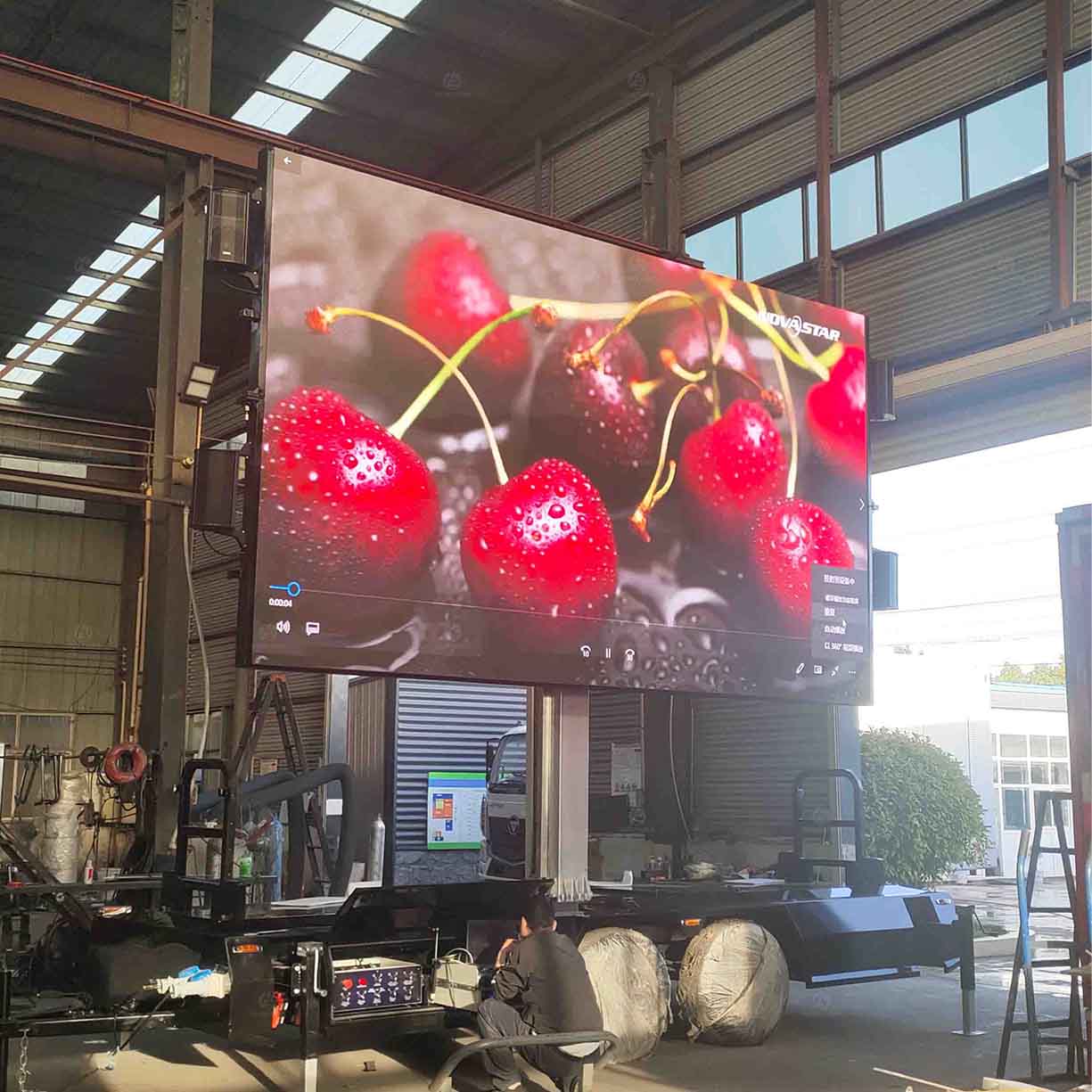

The LT16 Hydraulic LED Screen Trailer integrates transportation, hydraulic operation and a modular LED display into one efficient mobile solution. The 5000 × 3000 mm LED screen is assembled from multiple outdoor LED panels and unfolds through a hydraulic folding mechanism, allowing the trailer to remain compact during transportation while providing a large viewing area after deployment.
The trailer features 1440 mm hydraulic lifting, 360° remote-controlled rotation, and supports P3, P4, P5 and P6 pixel pitches to meet different viewing distance requirements. With a high brightness of 5000-6000 nits, the display remains clear even in direct sunlight.
Built on a dual axle trailer chassis with multiple braking options, the LT16 offers stable transportation and quick installation by a single operator in approximately 30 minutes. It is widely used for outdoor advertising, concerts, sports events, exhibitions, roadshows, government information campaigns and commercial promotions.
HUAYUAN also provides customized configurations, including different LED screen sizes, trailer dimensions, power systems and other optional features to meet specific project requirements.
| product name | LED billboard trailer | Model | HY-LT16 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 5600×2100×2620 | Maximum speed | 100Km/h | weight(kg) | 3120 | |||||||||
| Lifting way | hydraulic system | stable system | Semi-automatic screw type | power distribution | mains supply /generator | |||||||||
| framework material | steel structure | Outrigger | Mechanical expansion | Braking mode | Bump/electric/hand brake | |||||||||
| TOWING | PICKUP/SUV | Tyre | 265/70R16LT | Brakes | Bump/electric/hand brake | |||||||||
| Suspension type | Plate spring | Control card | Nova | LED Dimension (mm)) | 250(W)×250(H） | |||||||||
| LED Brightness | 5000-6000 nits | Max power | 850watts/sqm | Average power | 280watts/sqm | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 5440×3200 | 5440×3200 | 5376×3264 | 5440×3200 | 5440×3200 | |||||||||
| Area (㎡) | 17.4㎡ | 17.4㎡ | 17.55㎡ | 17.4㎡ | 17.4㎡ | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
