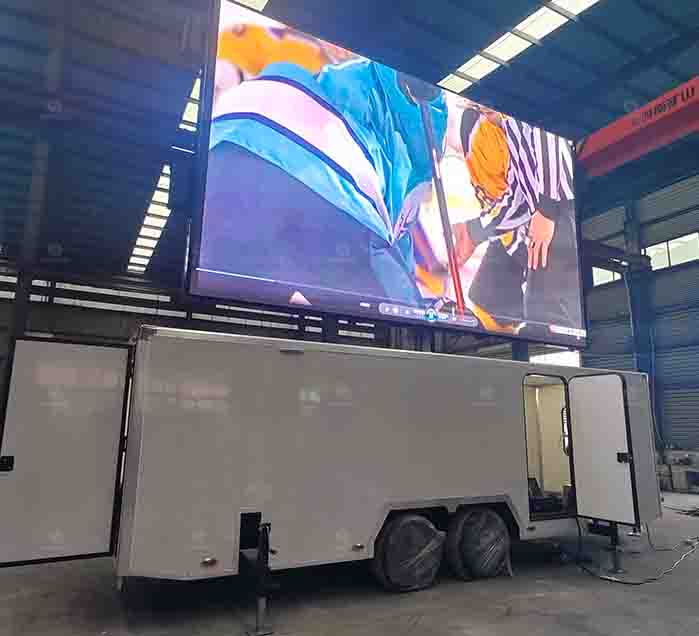

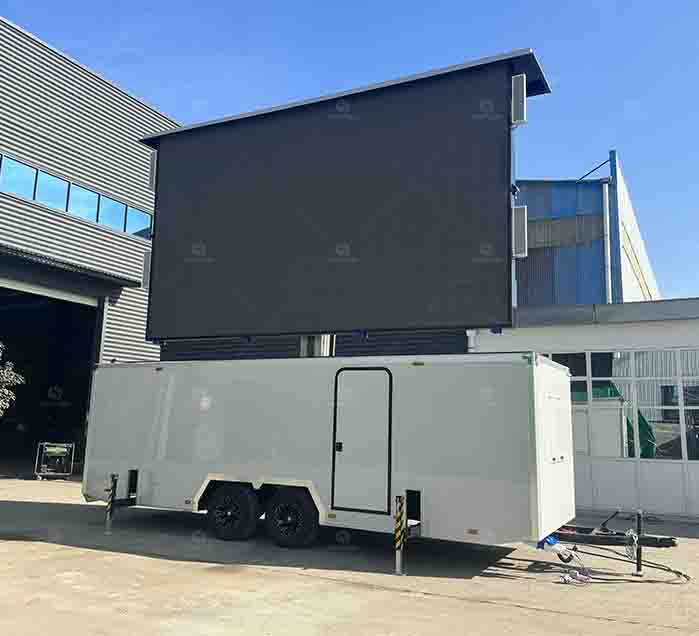

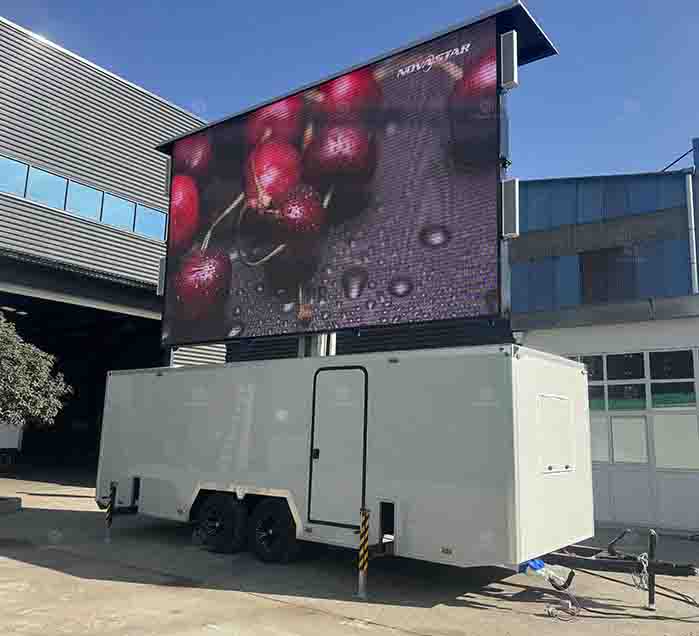

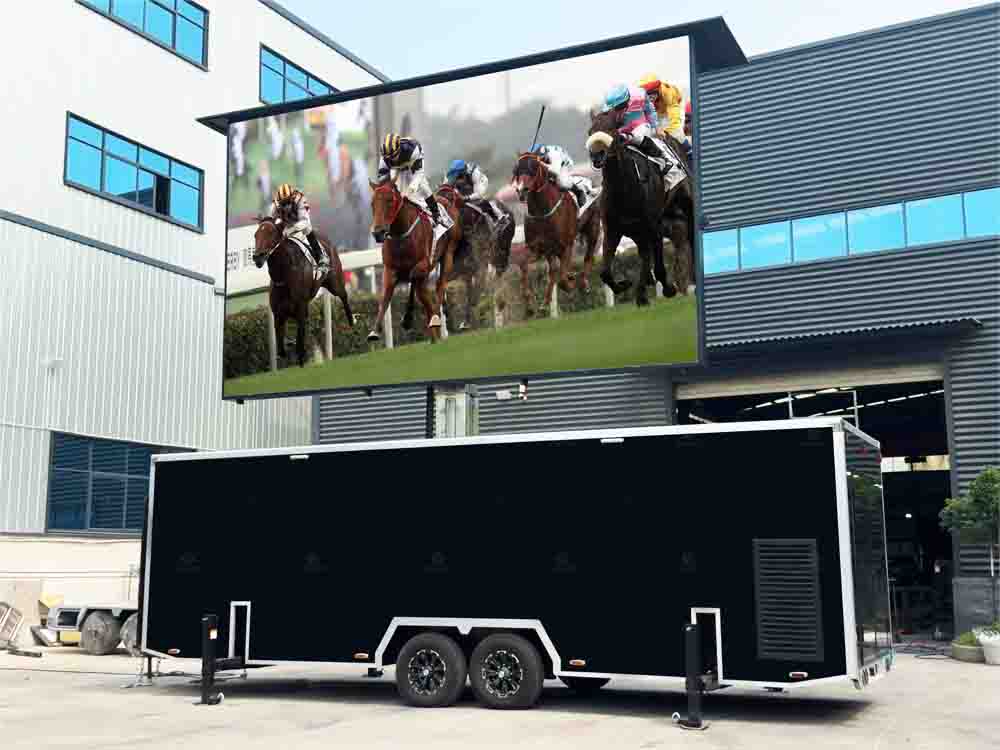

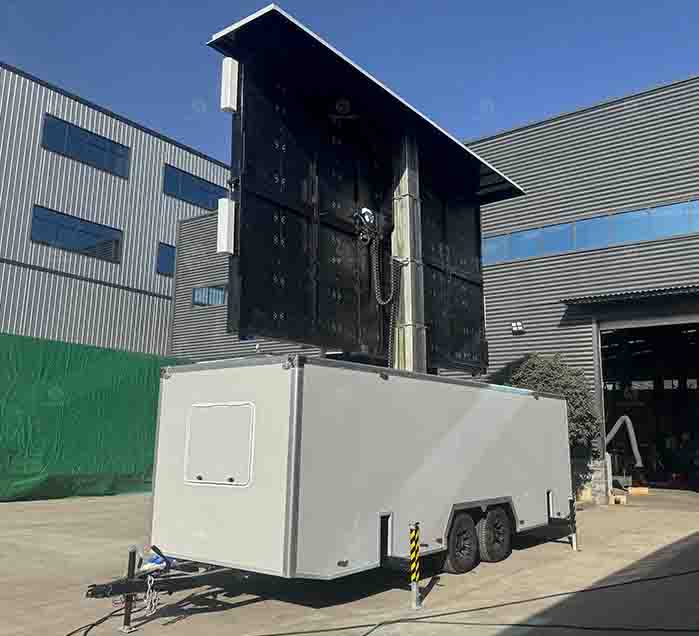

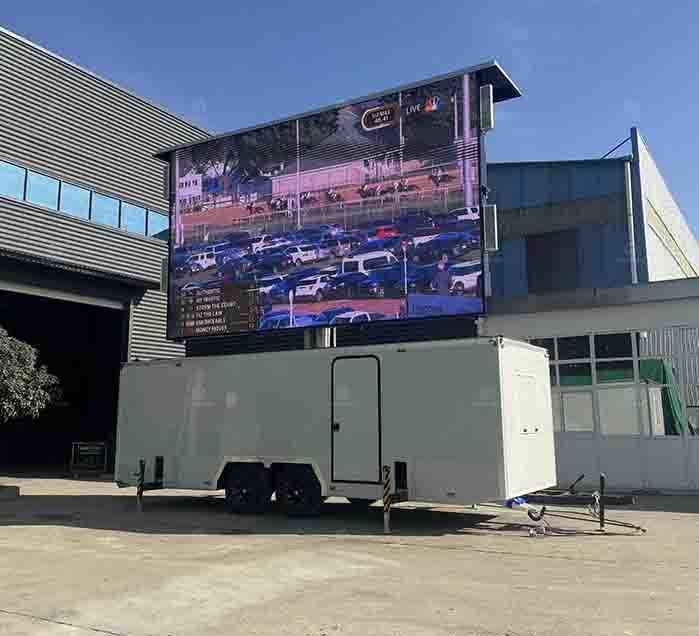

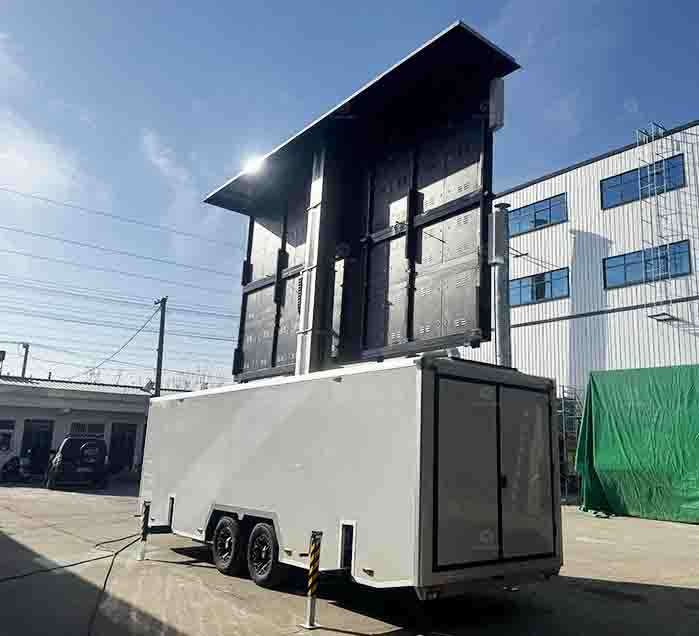

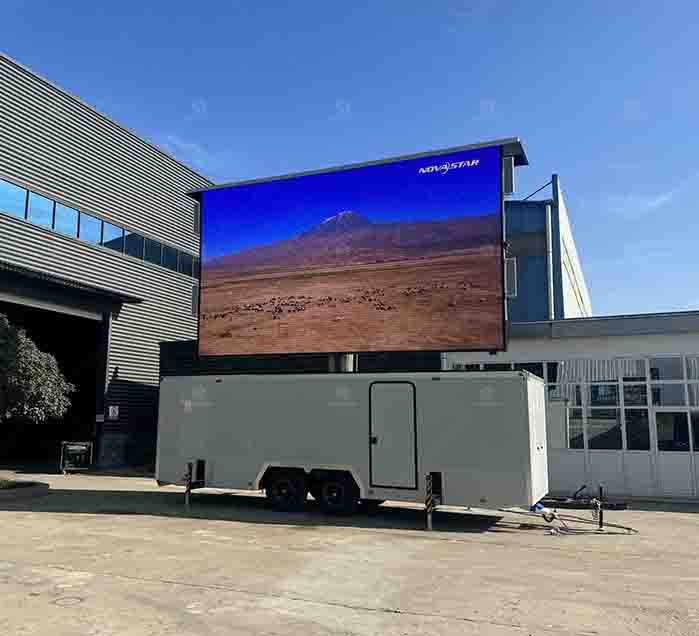

| product name | LED billboard trailer | Model | HY-LT21 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 7000×2150×2615 | Rotate | Manual 360° | weight | 4360kg | |||||||||
| LED Dimension (mm) | 320(W)×160(H） | Brightness | 5000-6000 nits | Pixel pitch | P3/P4/P5（selectable） | |||||||||
| Lifting way | hydraulic system | framework material | steel structure | Screen lift height | 2270MM | |||||||||

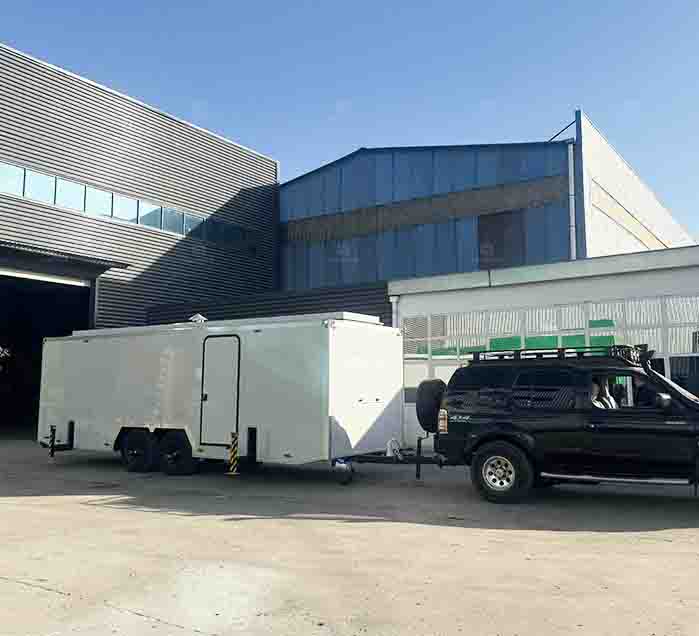

| TOWING | PICKUP/SUV | Tyre | 265/70R16LT | Braking mode | Electric brake | |||||||||
| Suspension type | Plate spring | Control card | Nova | Trailer Coupler | USA/European/Australian standard | |||||||||
| Maximum speed | 100Km/h | Max power | 850watts/sqm | Braking mode | Bump/electric/hand brake | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 4480×2080 | 4480×2080 | 4680×2112 | 4480×2080 | 4480×2080 | |||||||||
| Area (㎡) | 9.31 | 9.31 | 9.88 | 9.31 | 9.31 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
