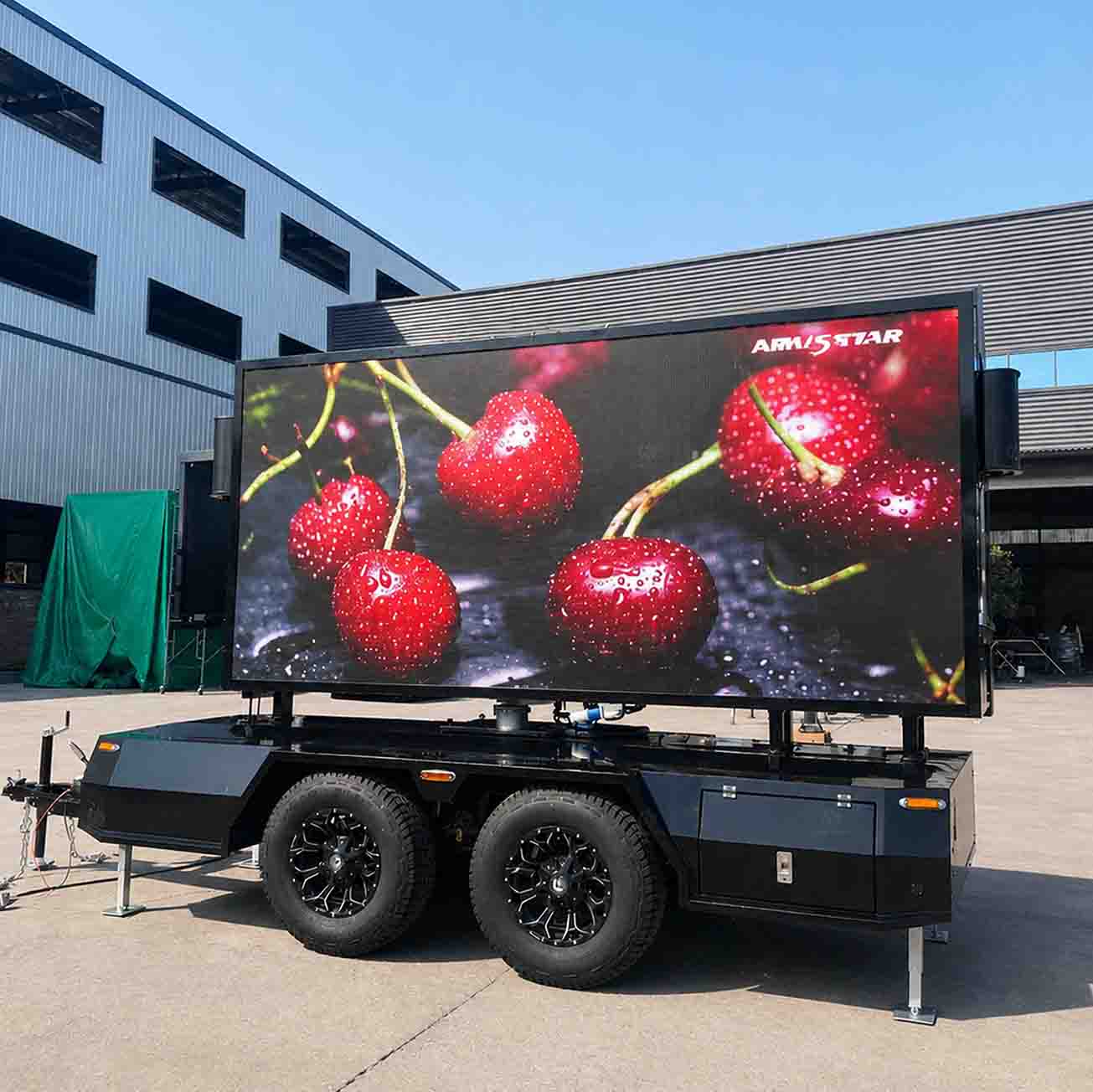

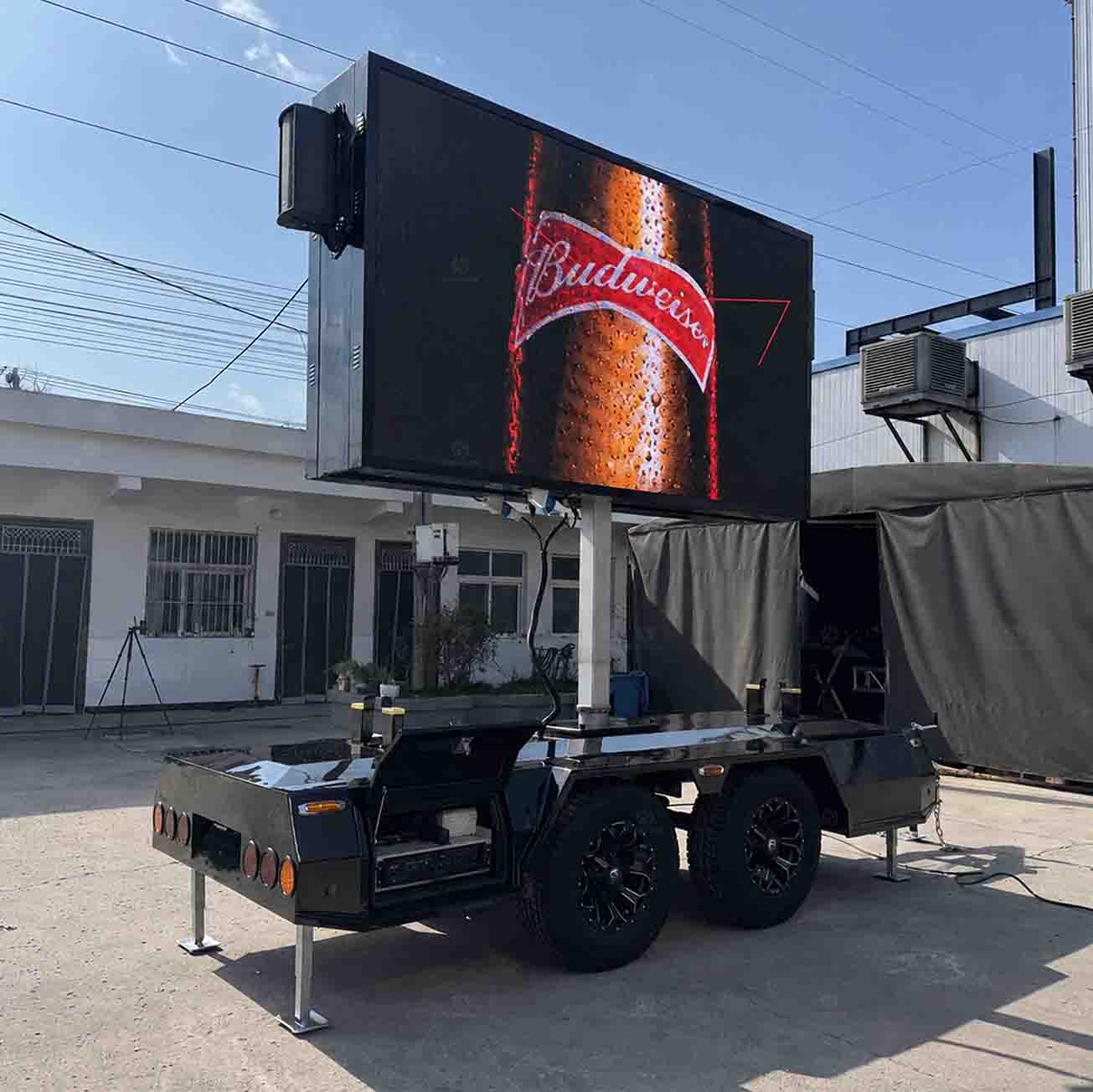

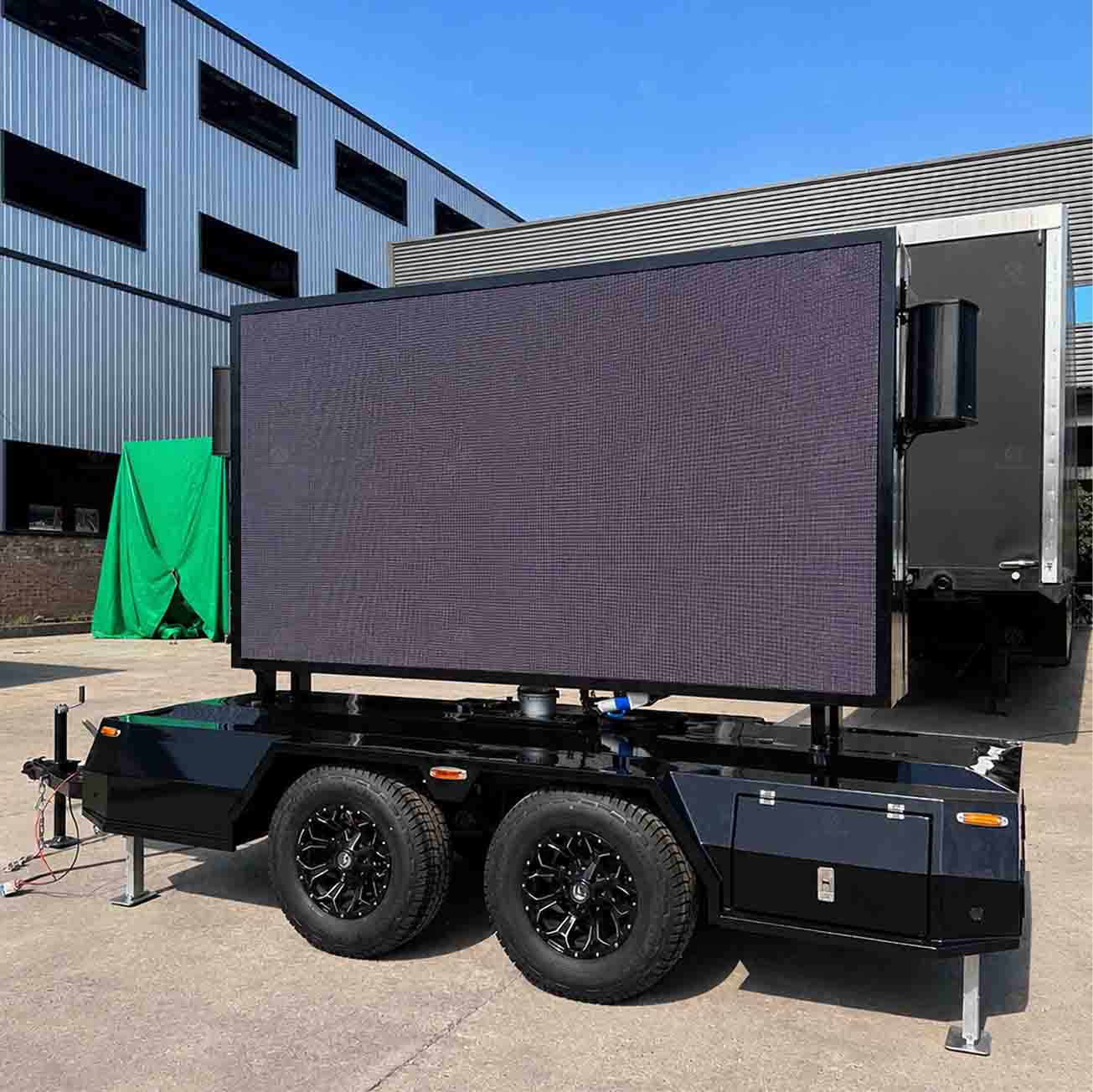

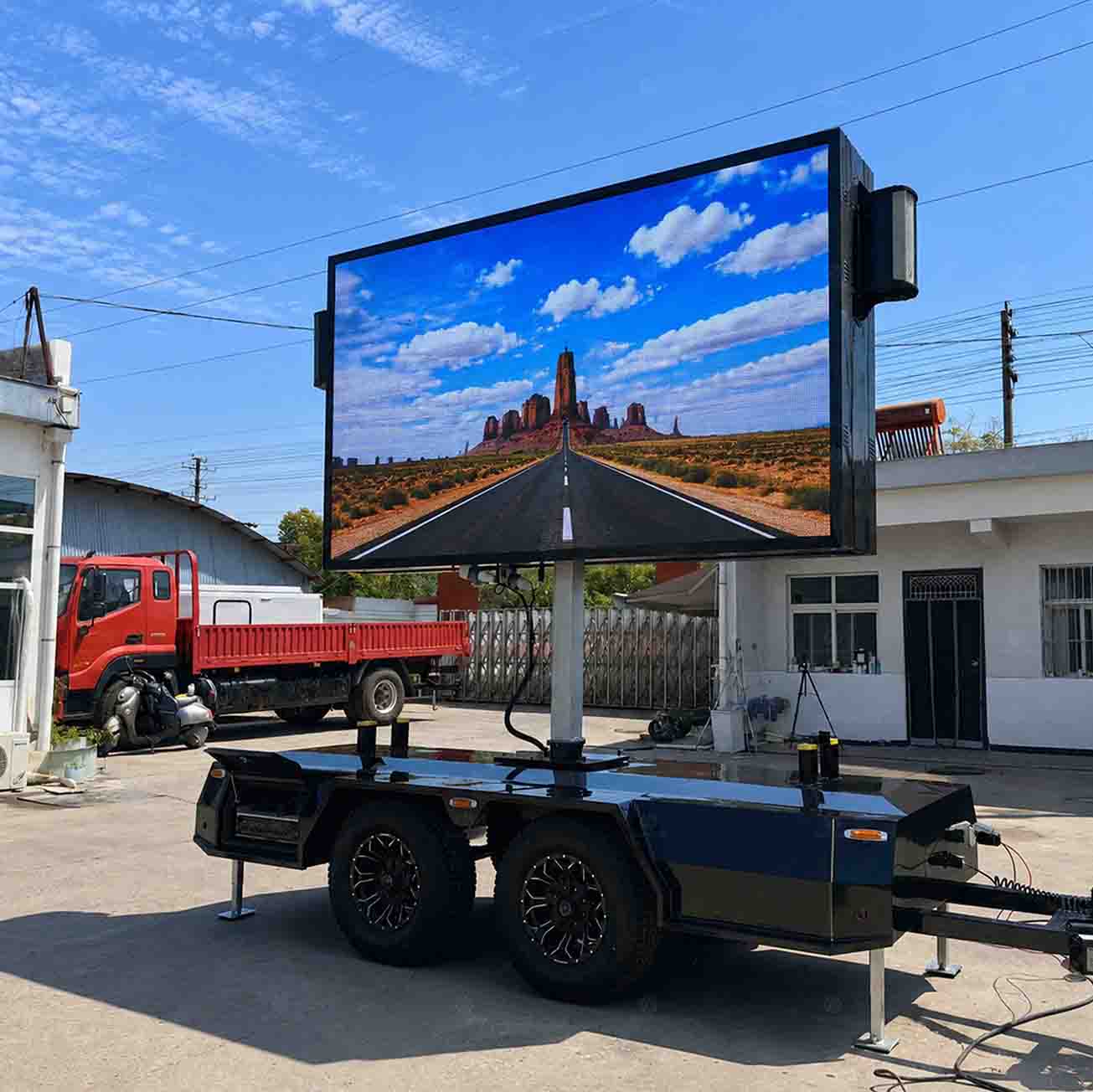

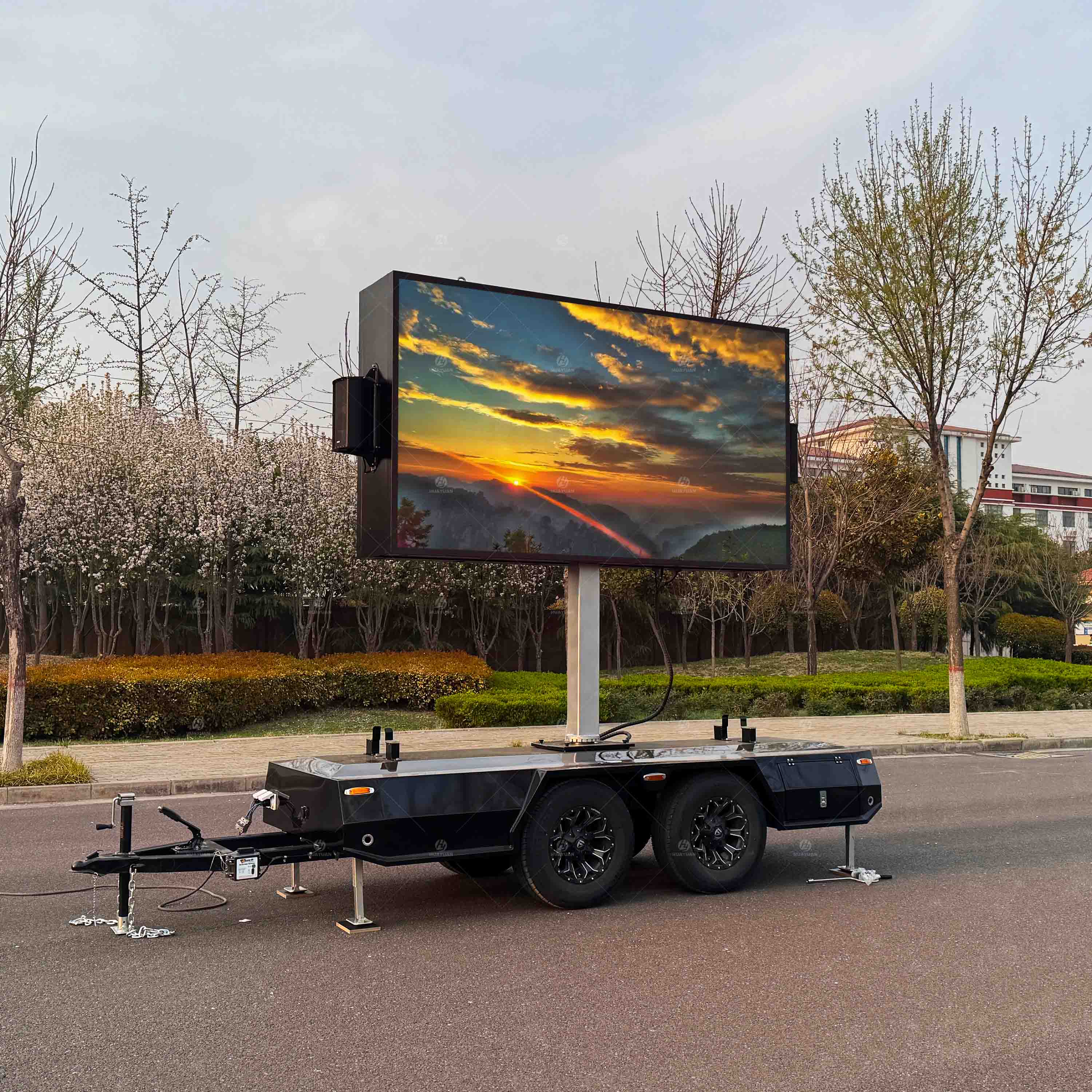

The LT5T Double Sided Mobile LED Trailer is a compact and versatile solution designed for outdoor advertising, commercial promotions, live events, sports broadcasting and public information displays. Equipped with two high-brightness outdoor LED screens, it provides excellent visibility from both directions, helping maximize audience reach in busy public spaces.
Featuring a hydraulic lifting system with a 1000 mm lift height and manual 360° screen rotation, the trailer can be deployed by a single operator in approximately 20 minutes. Available with P3, P4 or P5 pixel pitch options and a Nova control system, it delivers clear, vibrant images and reliable performance in various outdoor environments.
The durable dual-axle trailer supports USA, European and Australian coupler standards, making transportation convenient and stable. Its compact design allows easy towing while providing a professional digital display platform for advertising campaigns, festivals, exhibitions, roadshows and community events.
As an experienced mobile LED trailer manufacturer, HUAYUAN offers customized solutions to meet different project requirements, including LED screen specifications, trailer color, branding graphics, control systems and power configurations, helping customers build reliable and effective mobile display solutions worldwide.
| product name | LED billboard trailer | Model | HY-LT5T | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 3500×1600×2645 | Lift/rotate | 1000mm/Manual 360° | weight | 1650kg | |||||||||
| LED Dimension (mm) | 320(W)×160(H） | Brightness | 5000-5500 nits | Pixel pitch | P3/P4/P5（selectable） | |||||||||
| Lifting way | hydraulic system | framework material | steel structure | Screen lift height | 1.2m-1.5m | |||||||||
| TOWING | PICKUP/SUV | Tyre | 265/70R16LT | Braking mode | Bump/electric/hand brake | |||||||||
| Suspension type | Plate spring | Weight (kg) | 1650 | Trailer Coupler | USA/European/Australian standard | |||||||||
| Maximum speed | 100Km/h | Lift/rotate | 1000mm/Manual 360° | Braking mode | Bump/electric/hand brake | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 4480×2080 | 4480×2080 | 4680×2112 | 4480×2080 | 4480×2080 | |||||||||
| Area (㎡) | 9.31 | 9.31 | 9.88 | 9.31 | 9.31 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
