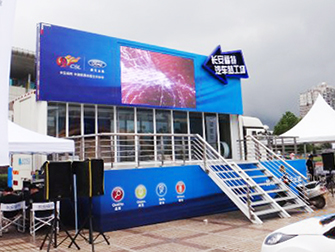

HY-LR315 LED roadshow truck

HY-LR315 LED roadshow truck

HY-LR315is a one-stop road show truck for outdoor promotion.You can use roadshows for events, events, promotions, live shows, ceremonies and sports broadcasts.This is a cost-effective solution for large events.
LED SCREEN SPECIFICATIONS: P5(optional P3/P4/P5/P6/P8/P10
LED SCREEN SIZE: 5760mm×2080mm
LED SCREEN AREA: 11.98㎡
SERVICE LIFE(HOURS): ≥50000
OVERALL DIMENSION: 12M×2.5M×3.95M
TOTAL WEIGHT: 19500KG
CURB WEIGHT: 17500KG
FUEL: Diesel
*Company/Name:
*Email:
Phone:
Product description
Technical Parameters
Related products
Send Your Inquiry
HY-LR315 is an LED roadshow truck. It can move freely and change advertising information in time to promote commodities and attract customers. It combines different types of advertising, such as LED display, stage, billboard and car sticker, etc.You can make full use of stage trucks for advertising.
HY-LR315 box body is made of steel frame, with circular arc edges around it. The structure is beautiful and firm.Waterproof and shockproof P5 outdoor full-color fixed large screen can be installed on the right side of the car. The multimedia playing system supports U disk playing and mainstream video and picture formats.Can be extended to achieve remote playback, timing, interrupting, loop and other playback modes.Passersby will love the good video on your truck screen.
HY-LR315 adopts the new built-in media optimization control system, which is more convenient for maintenance and operation. With 11-20 square meters of exhibition area and more expanded space, hy-LR315 can provide you with magnificent interior decoration and more electrical facilities, providing you with more convenient indoor functions.
22 square meters of stage for you to hold a variety of speeches, dances, concerts and other entertainment activities.
Super silent generator has low fuel consumption and low noise, which can provide continuous power supply for more than 24 hours for your advertising activities.
HY-LR315 LED roadshow truck
VEHICLE PARAMETERS
product name               LED roadshow truck Model                HY-LR315 Brand            HUAYUAN
Overall dimension(mm)     12000×2500×3950 Total mass (kg) 19500 Curb weight(kg)   17500
Lifting way                    hydraulic system framework material          steel structure power distribution        mains supply /generator
Stage size (mm)          9100×3100 Expansion size(mm)       9100×1500(2000)×2330  Mesa height(mm)         1450
Hydraulic control mode   Remote controls Guardrail/handrail        Stainless steel 304 Screen lifting structure  Guide column + hydraulic cylinder
Working voltage      220V Hydraulic control voltage   24V Screen lift height       2m
CHASSIS PARAMETERS
brand                SHACMAN Chassis models    QC5GN42Y24E710R Fuel                diesel
Engine brand        YUCHAI     Engine type       YC6A240-33 Power (kw)        132
Transmission       FAST Transmission Model  8JS85E Emission standards        Ⅱ、Ⅲ、Ⅳ、Ⅴ、Ⅵ
Displacement (ml)    7255 Tire size     80R22.5 Axial distance (mm)         7050
LED SCREEN PARAMETERS
specifications       P4 P5 P6 P8 P10
Size (mm)            5760×2080 5760×2080 5760×2112 5760×2080 5760×2080
Area (㎡)               11.98 11.98 12.16 11.98 11.98
Module Specification (mm)   320*160 320*160 192*192 320*160 320*160
Screen brightness(cd/m2)  ≥6000 ≥6000   ≥5000   ≥5000   ≥5000
Working voltage(V) 5 5 5 5 5
Refresh rate(Hz)         ≥1920  ≥1920   ≥1920  ≥1920  ≥1920
Service life(hours)       ≥50000   ≥50000  ≥10000  ≥50000   ≥50000
