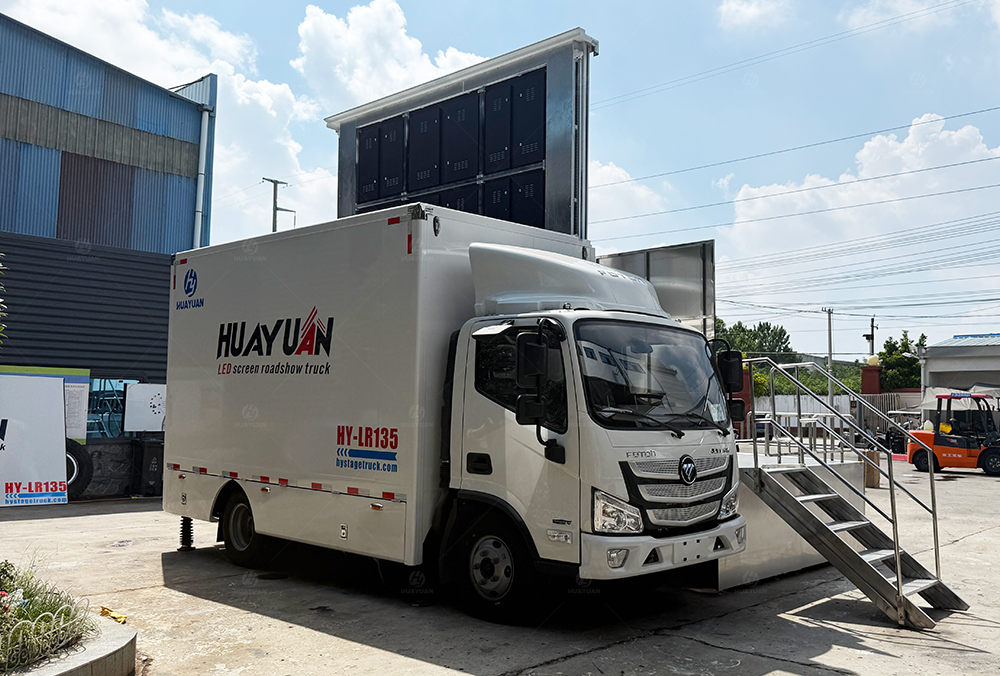

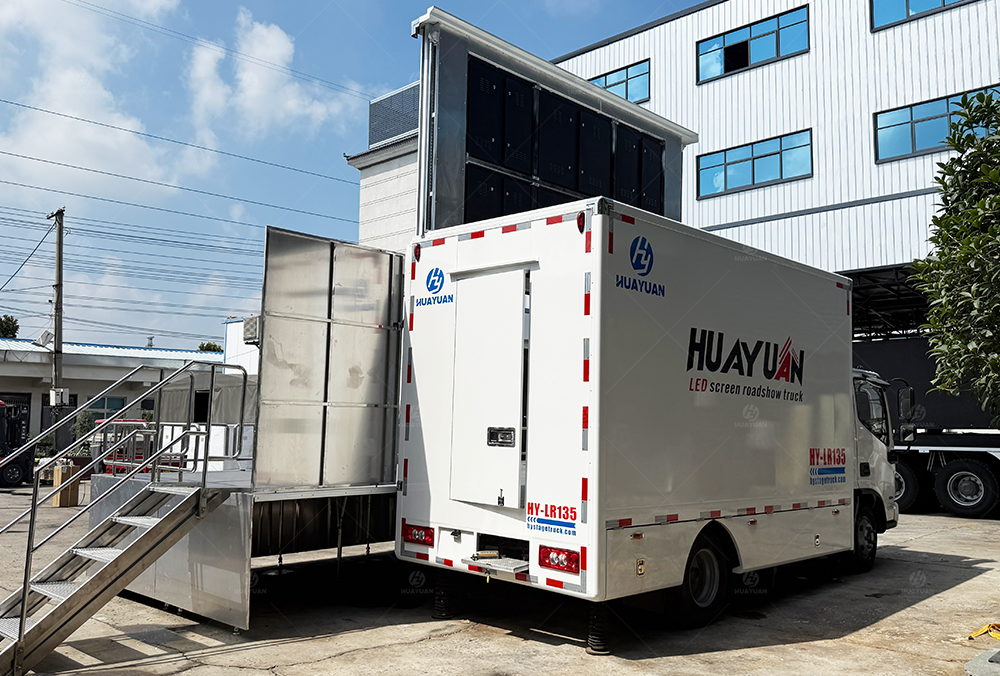

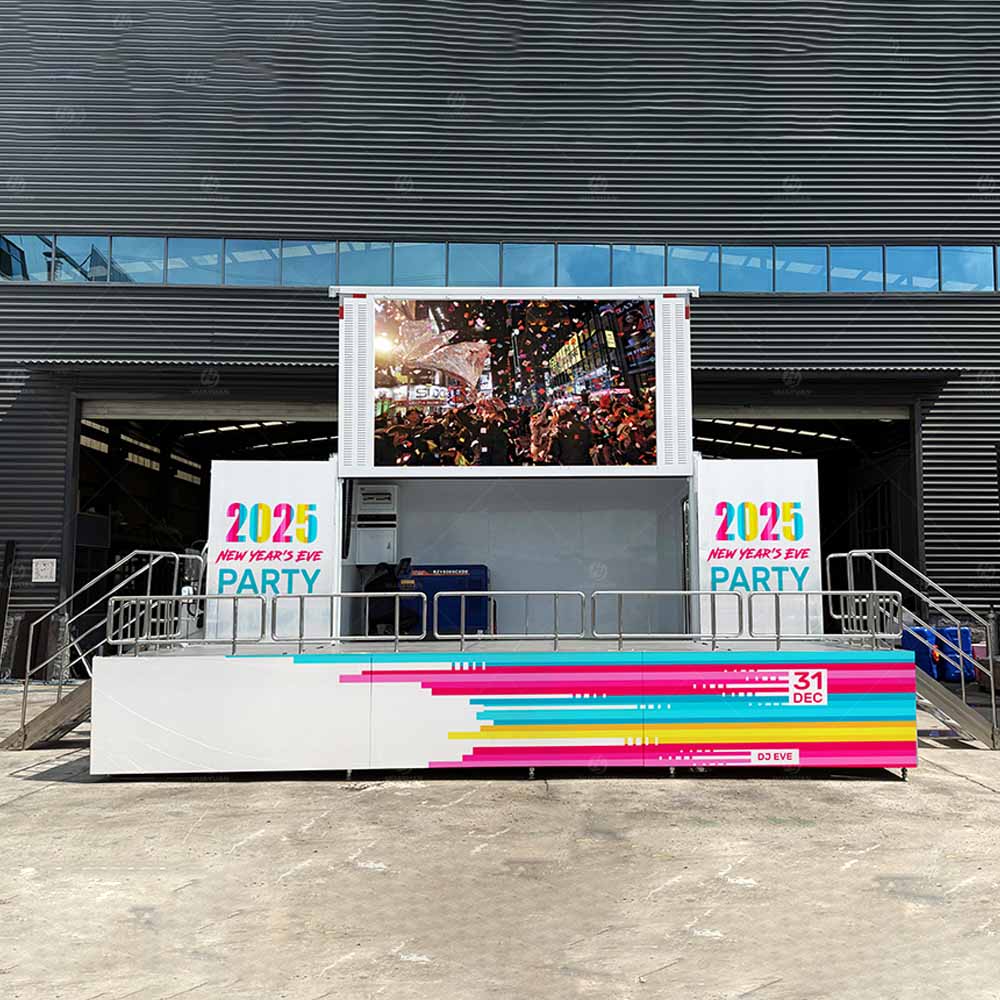

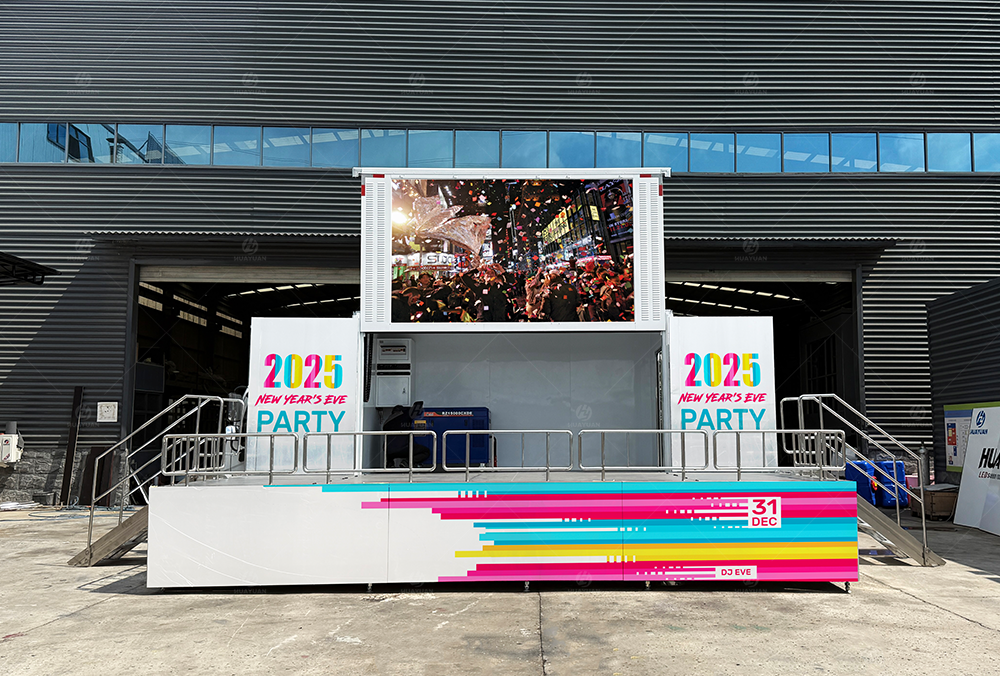

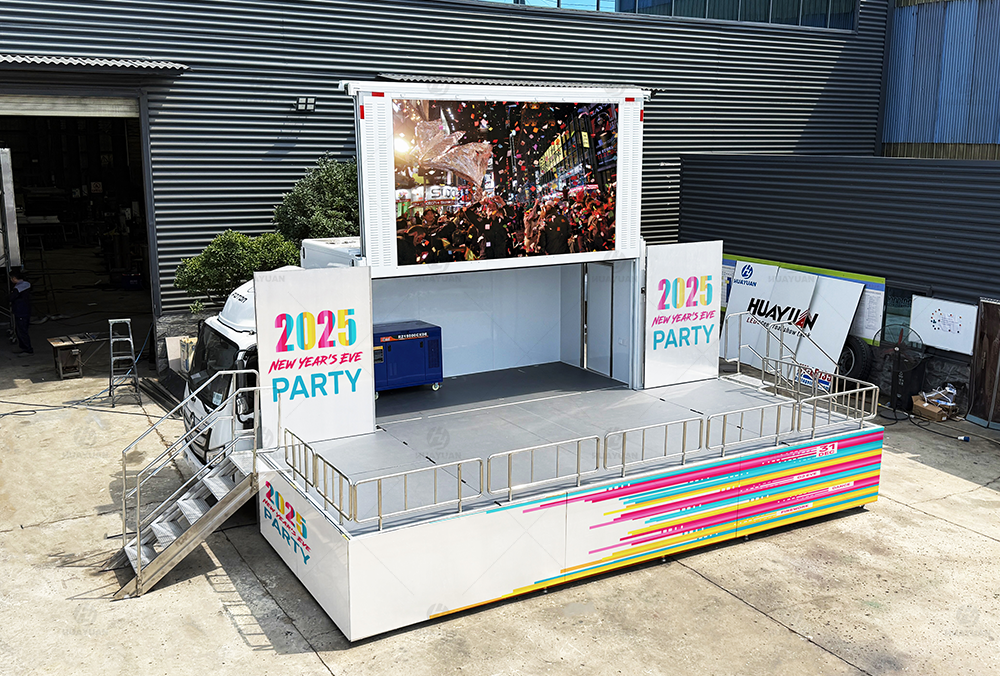

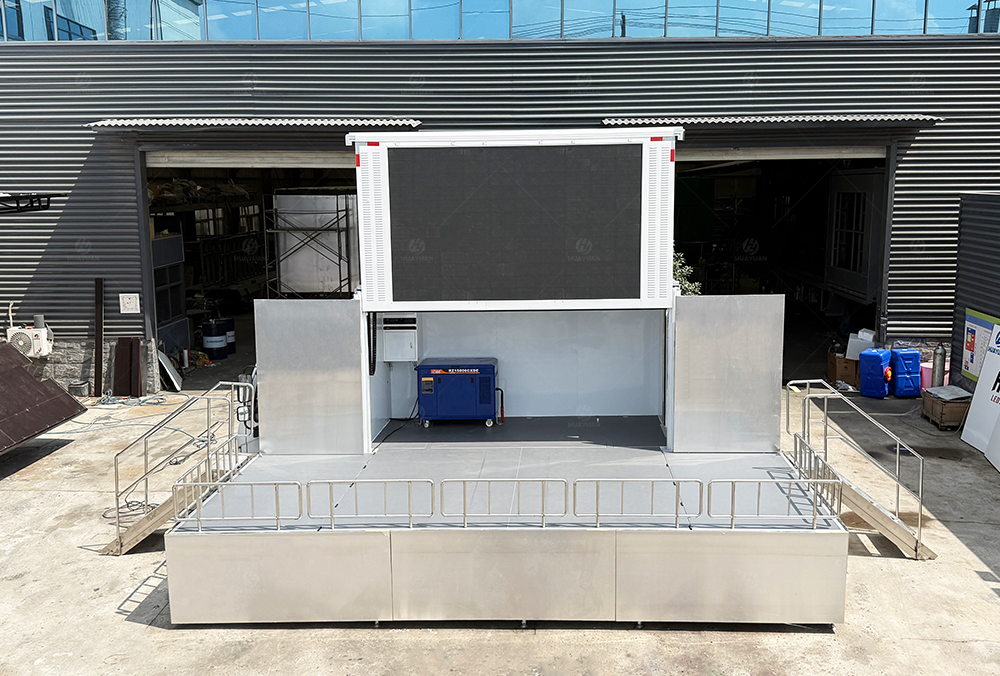

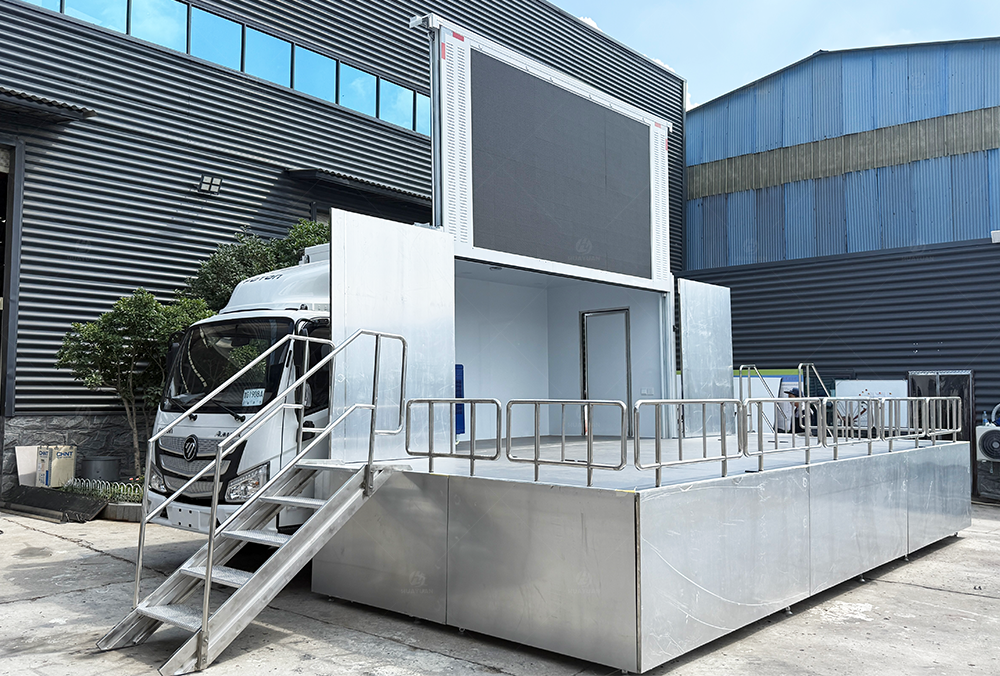

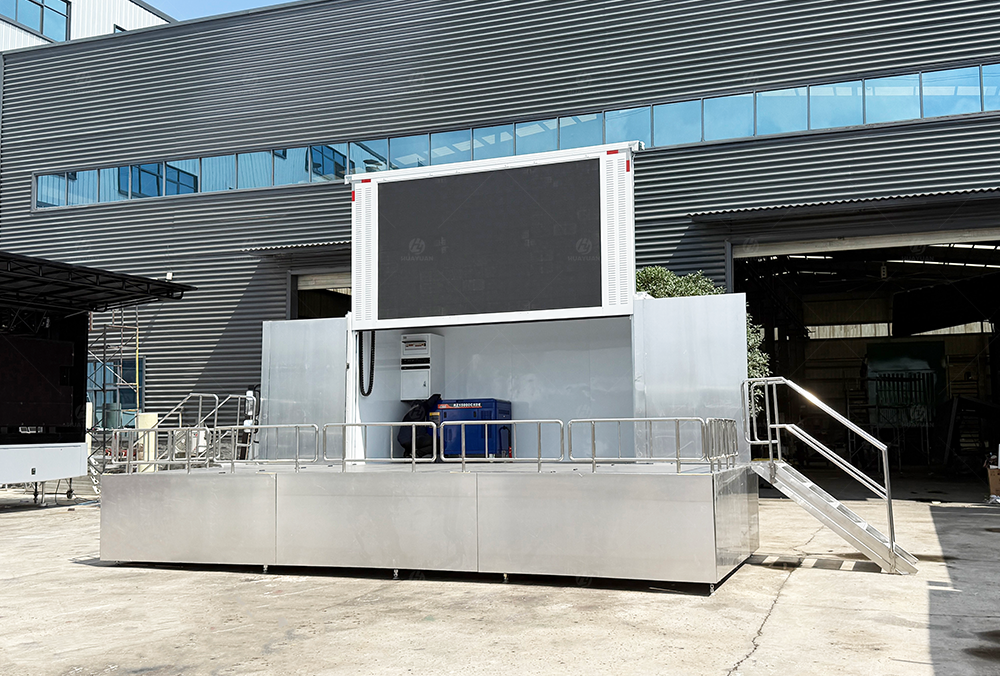

The HUAYUAN LR135 LED Roadshow Truck is a compact and versatile mobile event vehicle developed for roadshows,
brand promotions, product campaigns, public communication and outdoor events. By combining transportation, digital
display and event functions in one vehicle, it allows promotional activities to move efficiently between different locations.
The LR135 is equipped with a 3200 × 1920 mm outdoor LED screen for advertising videos, event information, brand
content and public messages. Different LED pixel pitches are available according to viewing distance and project
requirements, making the vehicle suitable for a wide range of outdoor promotional applications.
HUAYUAN can customize the LR135 according to different applications and operating requirements. LED screen
specifications, vehicle graphics, audio systems, power solutions and other supporting equipment can be configured
for each project, providing customers with a flexible mobile roadshow solution for commercial promotions, public
events and multi-location campaigns.
| product name | LED roadshow truck | Model | HY-LR135 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 5995×2100×3200 | Setup time | 30min/1-2people | weight（kg） | 5050 | |||||||||
| Lifting way | hydraulic system | framework material | steel structure | power distribution | mains supply /generator | |||||||||
| Stage size (mm) | 6800×3000 | Expansion size(mm) | 3500×1200 | Truck chassis | Foton, Sinotruck | |||||||||
| Hydraulic control mode | Remote controls | Guardrail/handrail | Stainless steel 304 | Screen lifting structure | Guide column + hydraulic cylinder | |||||||||
| Working voltage | 220V | Hydraulic control voltage | 24V | Screen lift height | 1.9m | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 5760×2080 | 5760×2080 | 5760×2112 | 5760×2080 | 5760×2080 | |||||||||
| Area (㎡) | 11.98 | 11.98 | 12.16 | 11.98 | 11.98 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
