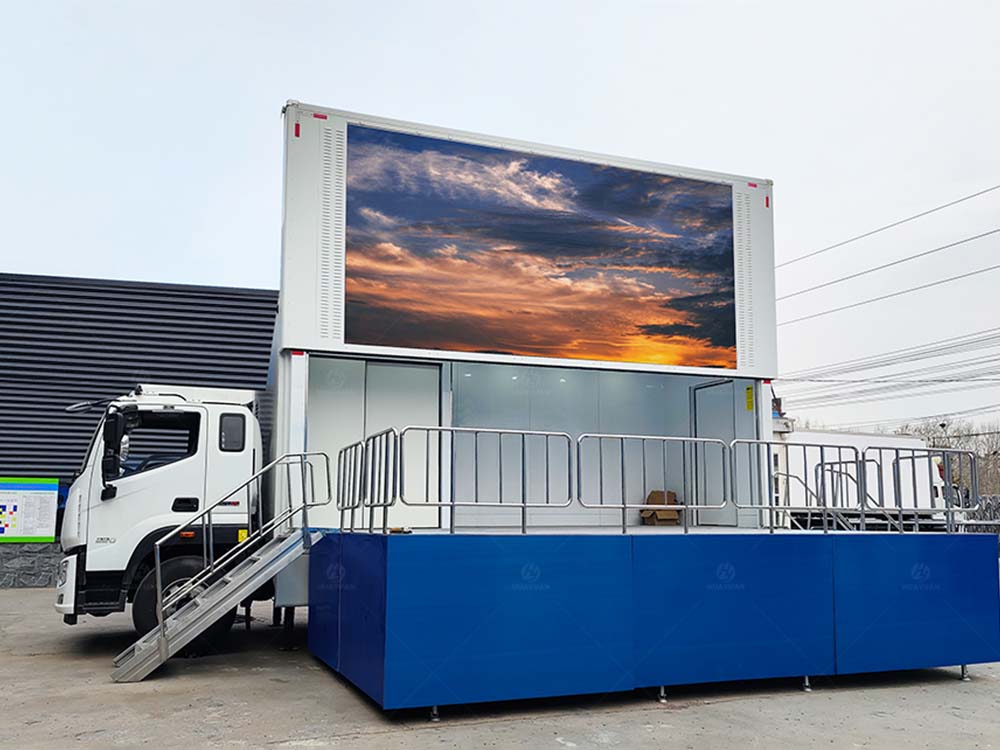

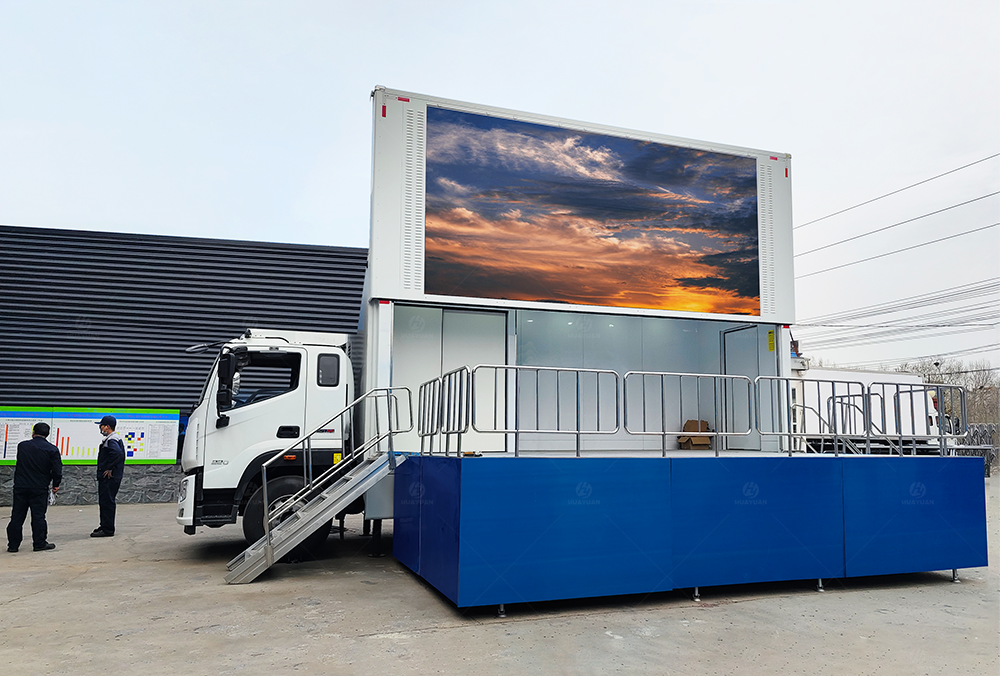

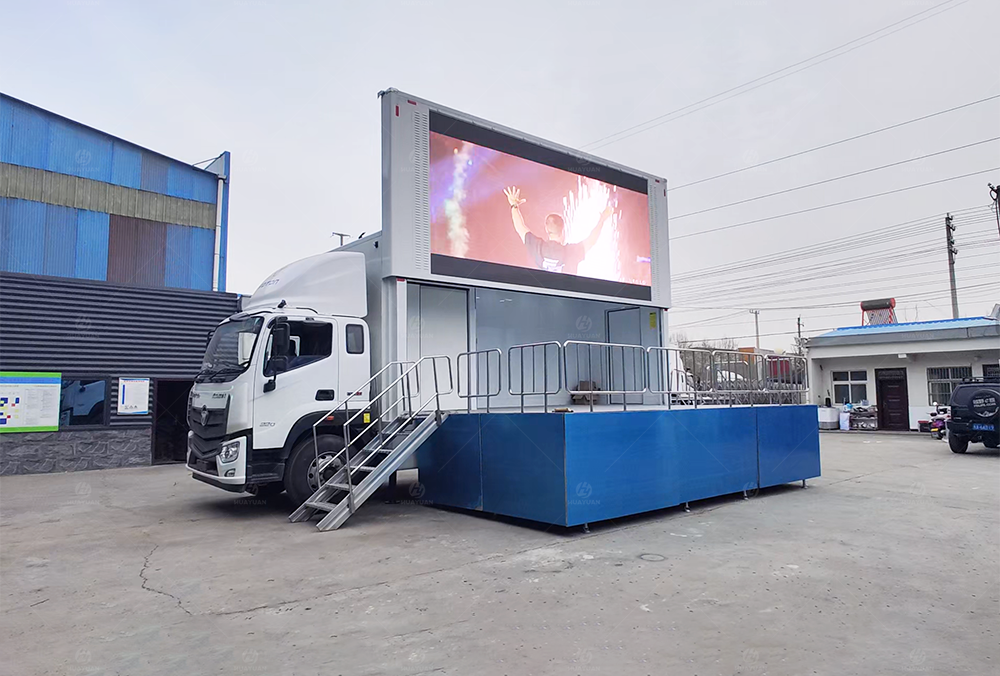

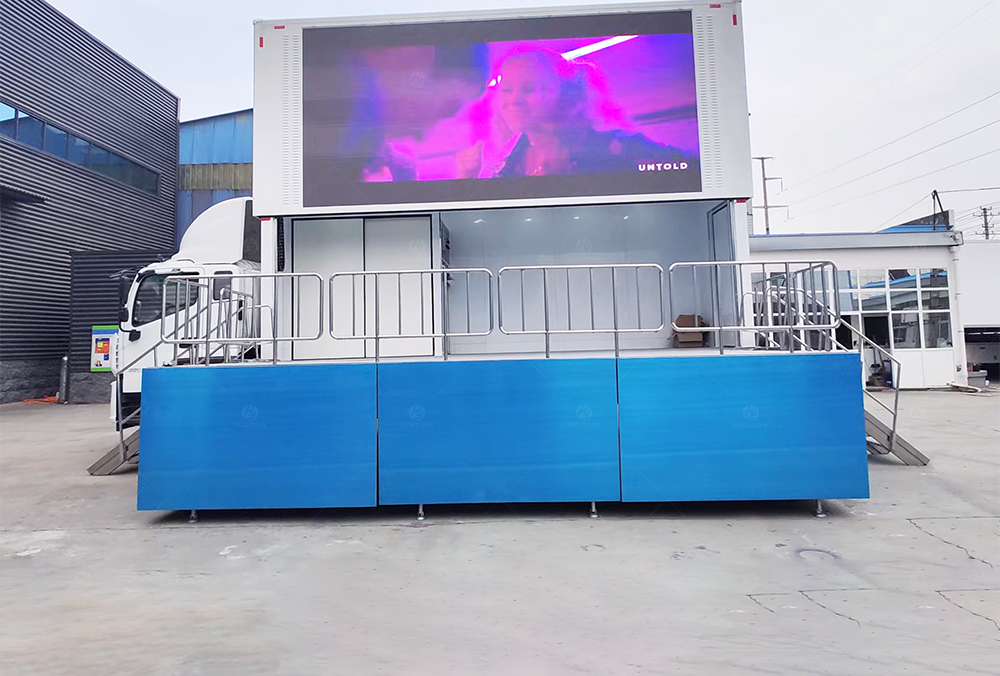

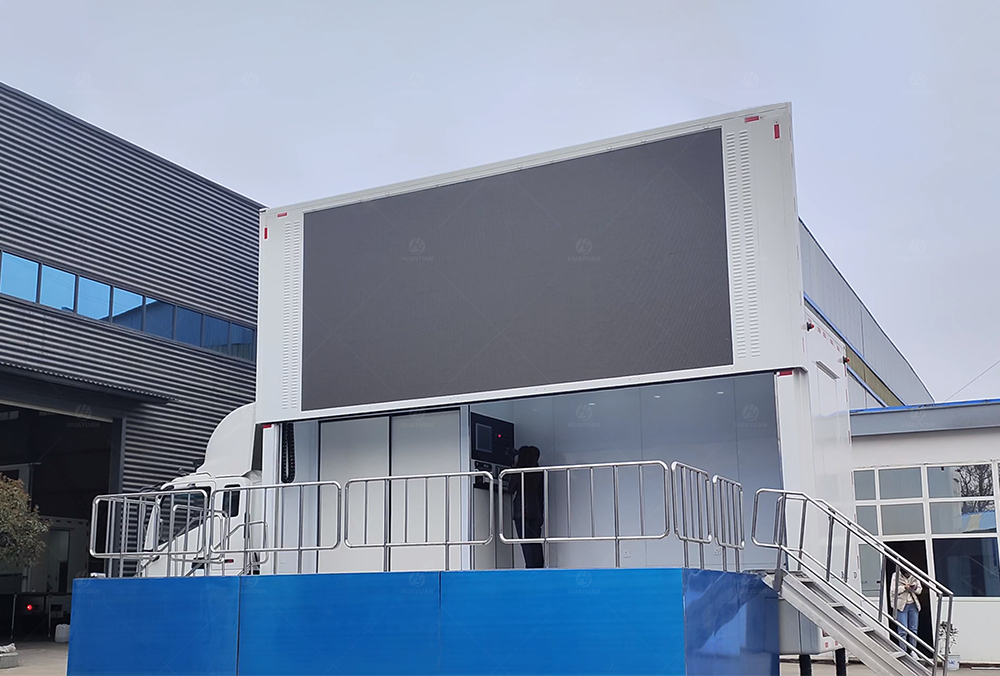

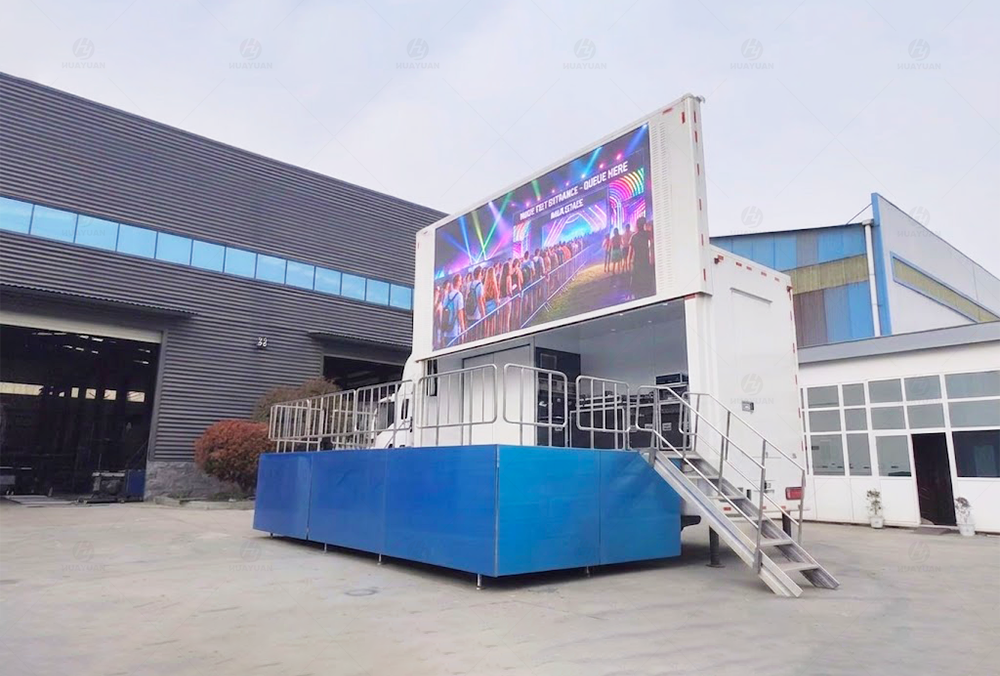

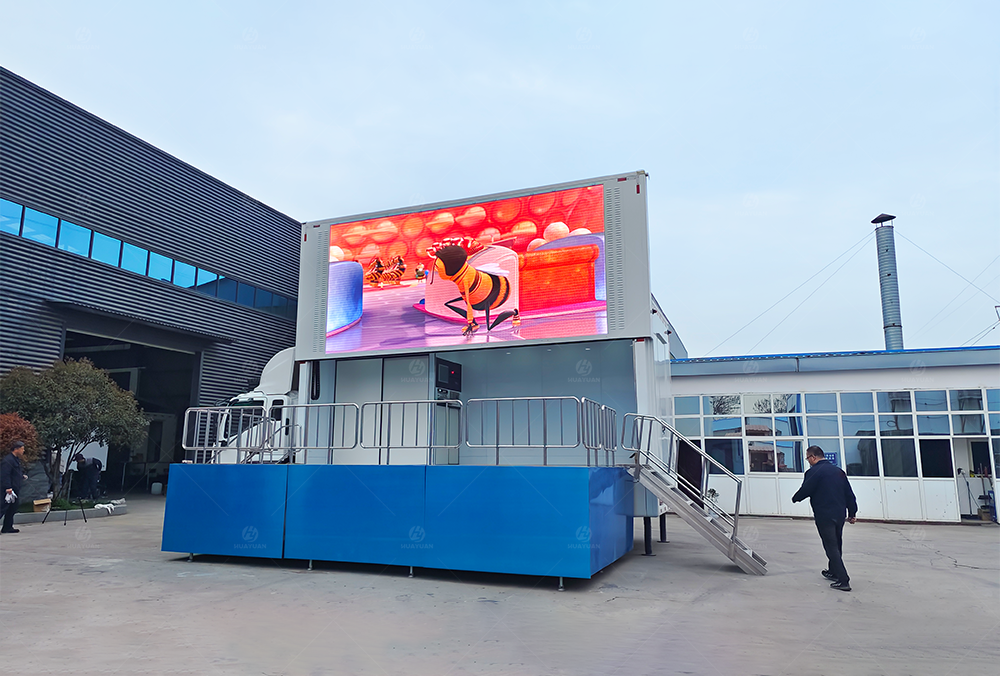

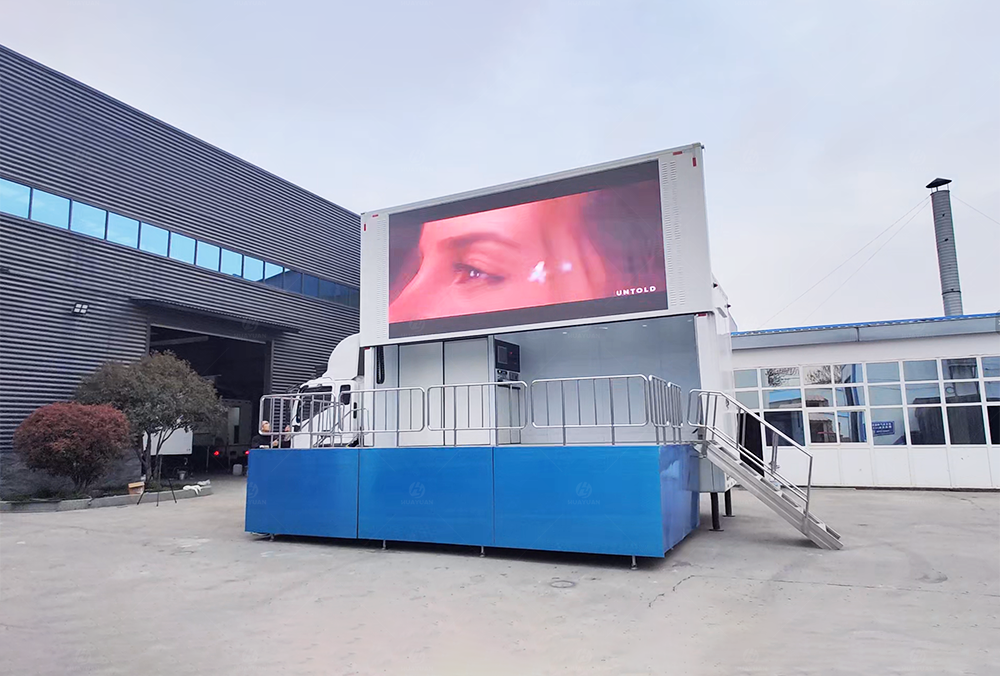

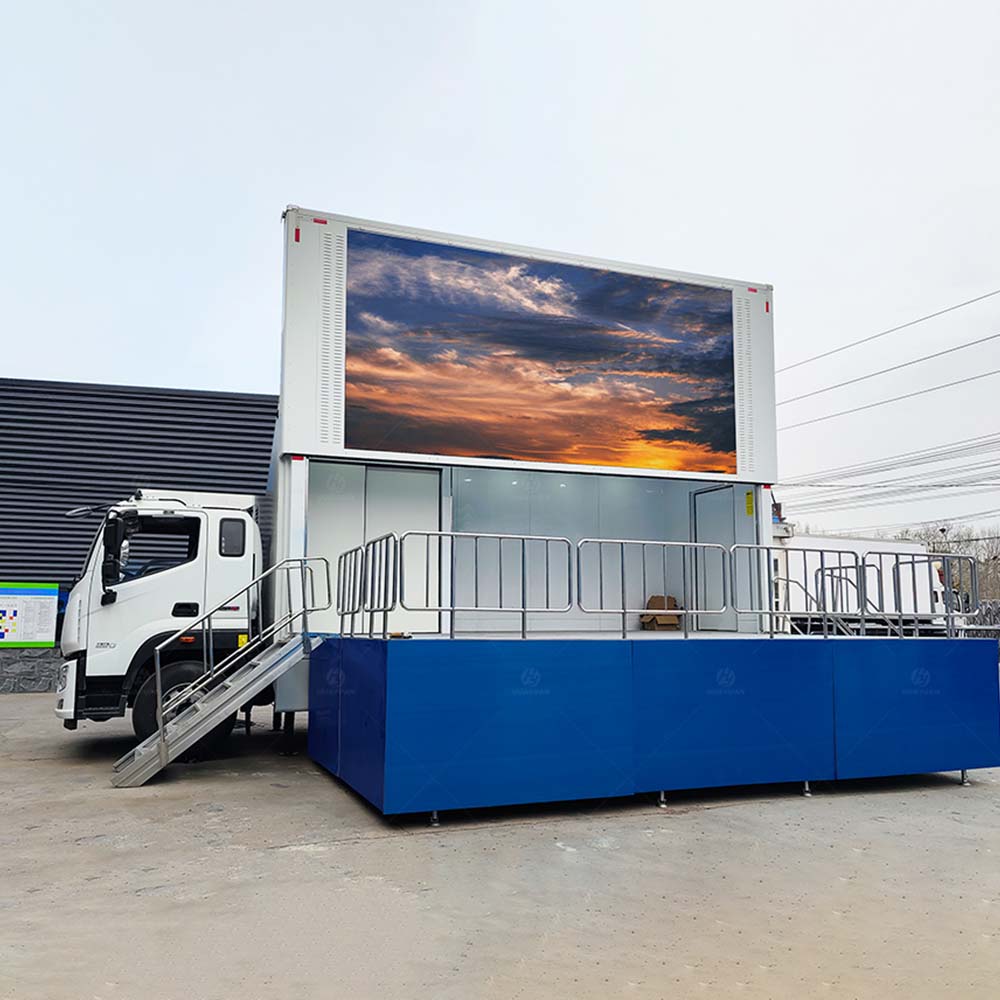

| product name | LED roadshow truck | Model | HY-LR255 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 10000×2550×3990 | Setup time | 35min/2people | weight（kg） | 12800 | |||||||||
| Lifting way | hydraulic system | framework material | steel structure | power distribution | mains supply /generator | |||||||||
| Stage size (mm) | 9700×3000 | Expansion size(mm) | 7500×1500 | Truck chassis | Foton, Sinotruck | |||||||||
| Hydraulic control mode | Remote controls | Guardrail/handrail | Stainless steel 304 | Screen lifting structure | Guide column + hydraulic cylinder | |||||||||
| Working voltage | 220V | Hydraulic control voltage | 24V | Screen lift height | 2m | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 5760×2080 | 5760×2080 | 5760×2112 | 5760×2080 | 5760×2080 | |||||||||
| Area (㎡) | 11.98 | 11.98 | 12.16 | 11.98 | 11.98 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
