LR245S Solar-Powered LED Roadshow Truck

The HUAYUAN LR245S is a solar-powered LED roadshow truck integrating a large outdoor LED display, hydraulic stage, rooftop solar panels, LiFePO₄ battery storage and automatic generator backup into one mobile event platform. Designed for roadshows, brand promotions, public communication, training and outdoor events, it provides an integrated solution for mobile display, event deployment and multi-source power supply.

Overall Dimensions 6800×2500×4200 mm

LED Display Size 5440 × 2560 mm

LED Display Area Approx. 13.93 m²

Hydraulic Stage 6000 × 5400 mm

Solar Power 4.08 kW

Battery Storage Approx. 20 kWh

Solar Panels 6 × 680 W

Generator Output 20 kVA / 16 kW Rated

REQUEST A QUOTE

Share With:

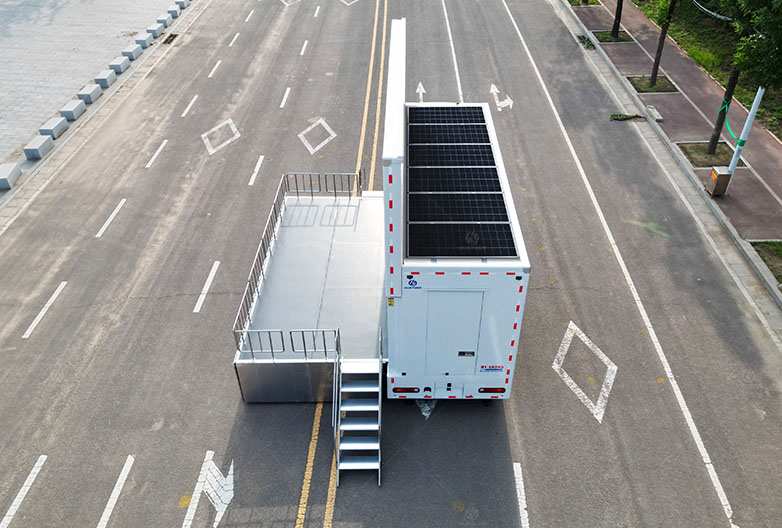

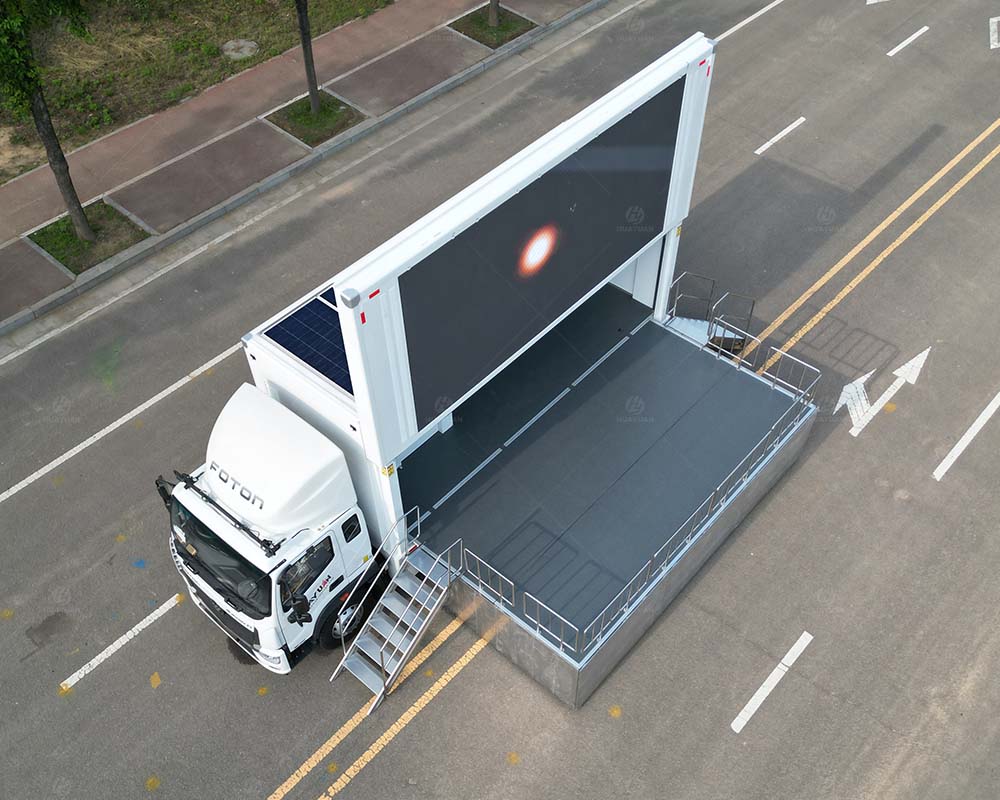

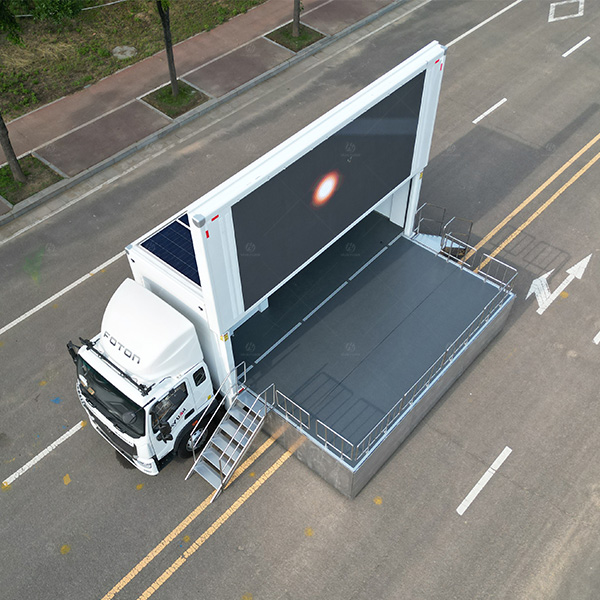

LR245S solar roadshow truck with deployed stage

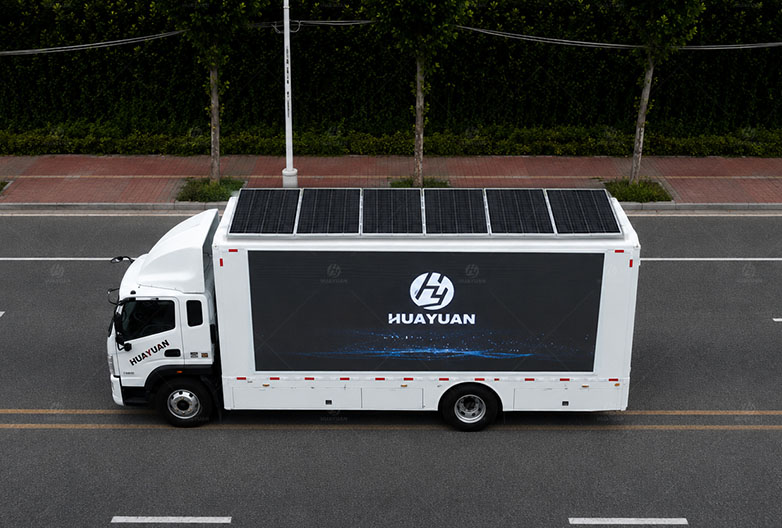

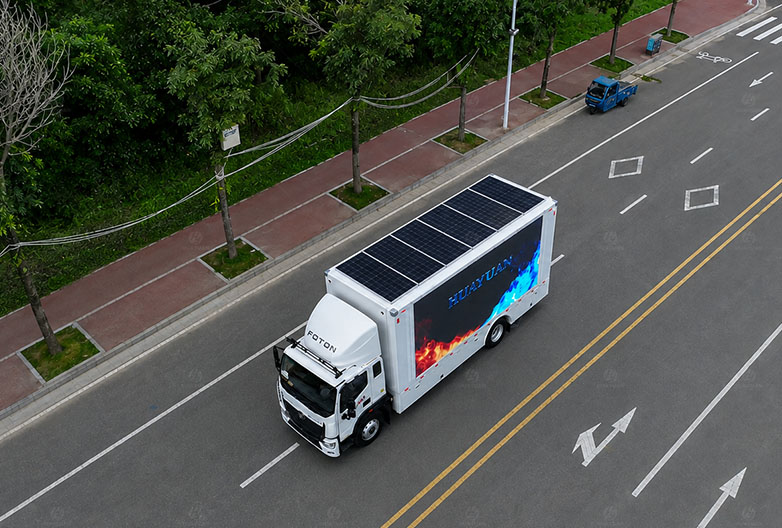

LR245S roadshow truck with rooftop solar panels

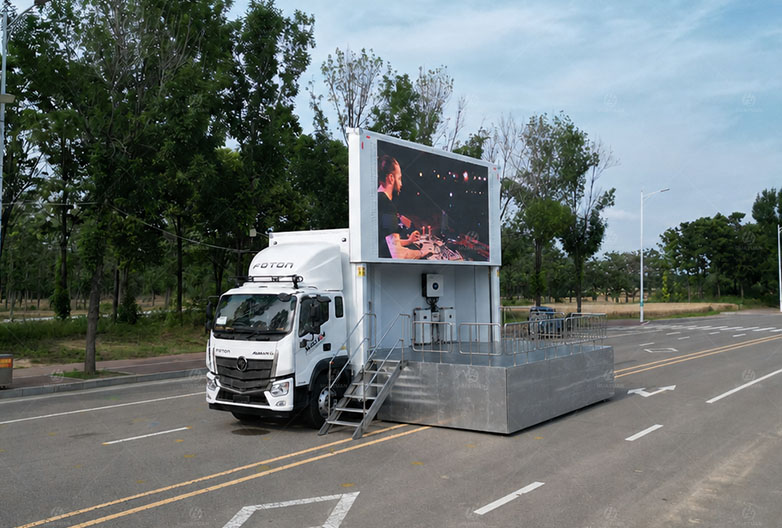

LR245S mobile LED event truck with stage

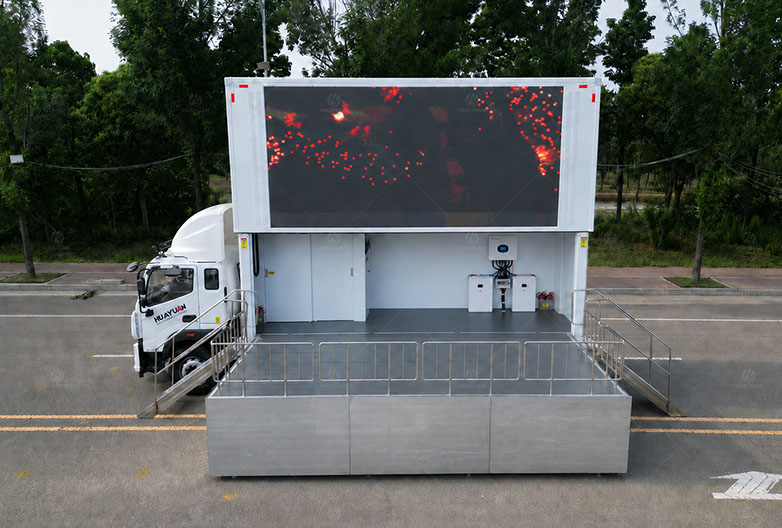

Front view of the LR245S mobile LED stage

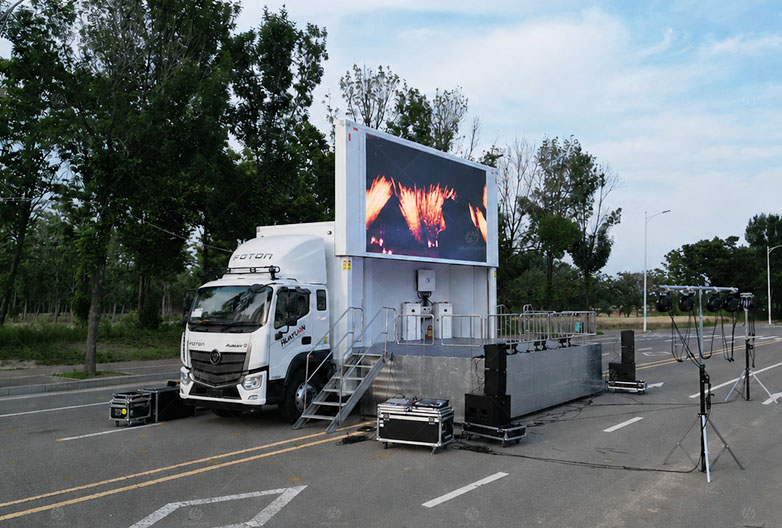

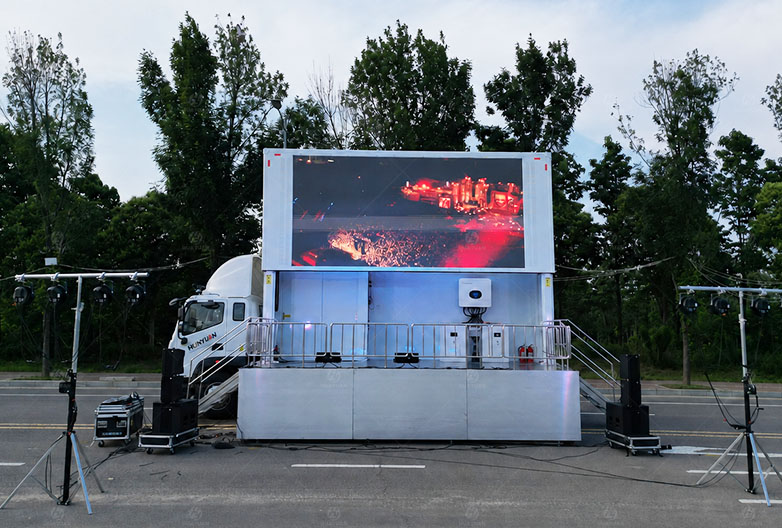

LR245S LED event truck with stage and audio system

Product description

The HUAYUAN LR245S Solar-Powered LED Roadshow Truck is designed as an integrated mobile platform for roadshows,brand activations,public communication and outdoor events. It combines mobile transportation, visual communication,event staging and onboard energysystems in one vehicle, reducing the amount of temporary equipment required at different event locations.

A 5,440 × 2,560 mm outdoor LED display provides approximately 13.93 m² of display area for advertising, live content, public information and event media. The vehicle also integrates a two-section hydraulic stage that expands to approximately 6,000 × 5,400 mm, creating a practical event platform for presentations, promotions, training and community activities.

One of the key features of the LR245S is its multi-source energy system. Six 680 W rooftop solar panels provide 4.08 kW of installed solarcapacity and work together with approximately 20 kWh of LiFePO₄ battery storage. An integrated energy-management system coordinatessolar power, battery supply and external power according to operating conditions.

For applications requiring longer operating periods or additional power security, the vehicle also incorporates automatic generator backup.Together with integrated LED media control and optional professional audio equipment, the LR245S provides a flexible mobile eventsolution that can be configured according to different markets, applications and project requirements.

Technical Parameters

VEHICLE, DISPLAY & STAGE

product name

Solar-Powered Roadshow Truck

Model

HY-LR245S

Brand

HUAYUAN

Overall dimension(mm)

6800 ×2500 × 4200mm

Setup time

20min/1 people

Body Length

Approx. 6.8 m

LED Display Size

5440 × 2560 mm

LED Display Area

Approx. 13.93 m²

Pixel Pitch

Physical Resolution

1,360 × 640 px

Brightness

6,000–10,000 cd/m²

Protection Rating

IP65

Stage Size

6,000 × 5,400 mm

Stage Type

Two-Section Hydraulic Stage

Reference Setup Time

Approx. 20 Minutes

SOLAR, POWER & EQUIPMENT

Solar Panels

6 × 680 W

Installed Solar Power

4.08 kW

Battery Type

LiFePO₄

Battery Storage

Approx. 20 kWh

Solar Inverter

15 kW Integrated

Generator Model

GOGOVO GDE20LS

Generator Rated Output

20 kVA / 16 kW

Generator Maximum Output

22 kVA / 17.5 kW

Generator Fuel Tank

55 L

Media Controller

NovaStar TB60

Audio System

Integrated Professional Audio

Energy Management

Solar + Battery + Generator Support
