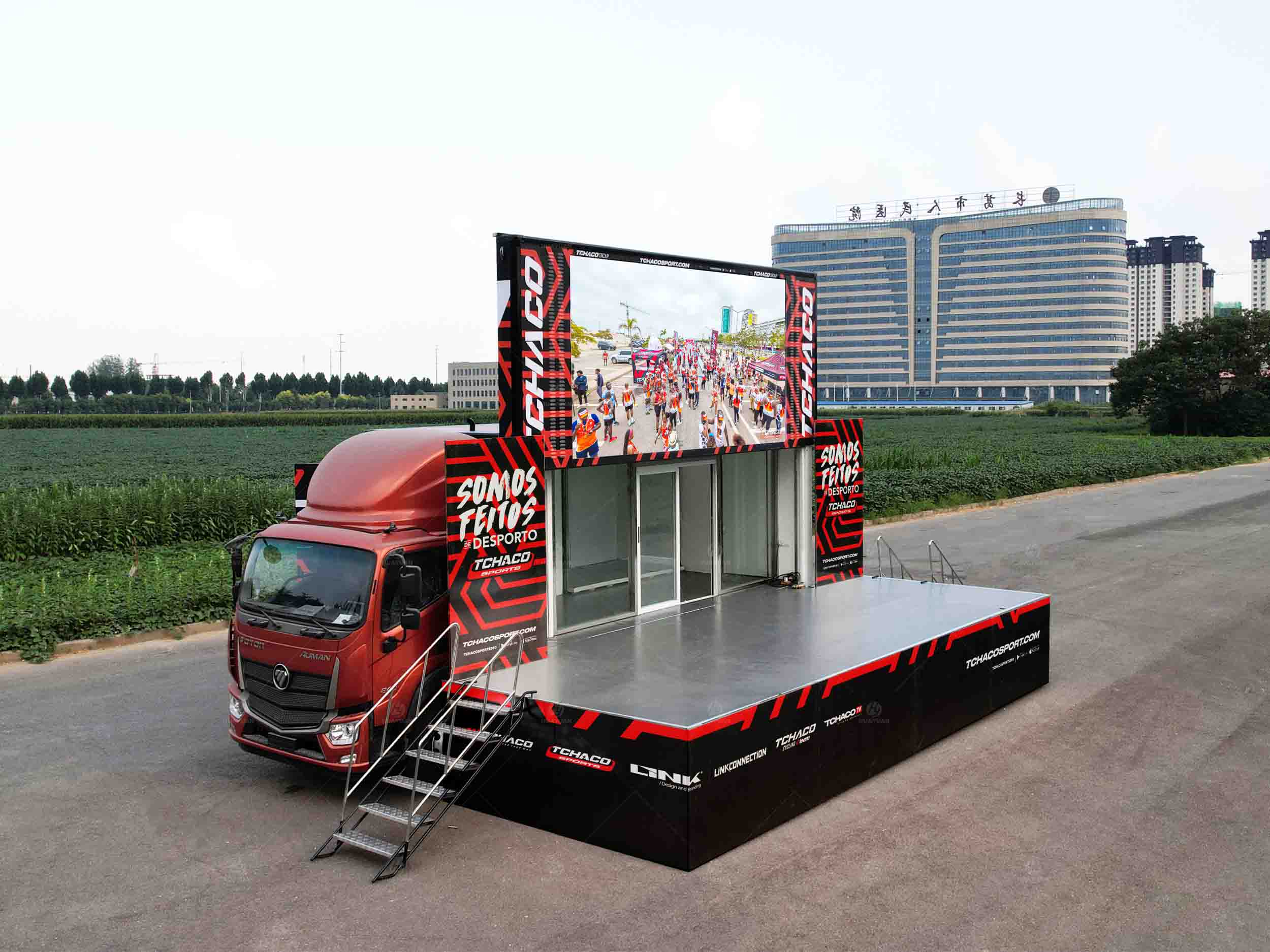

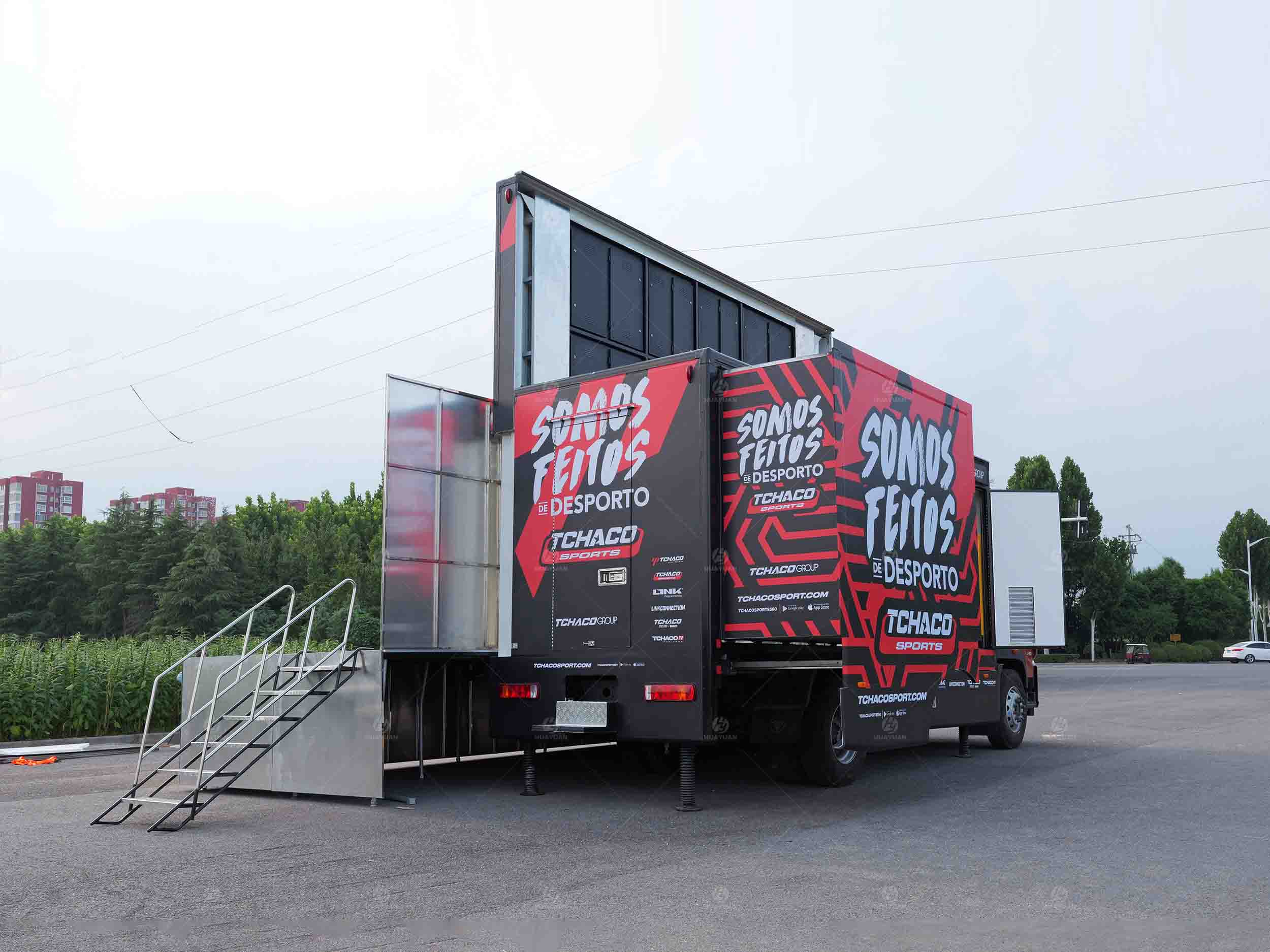

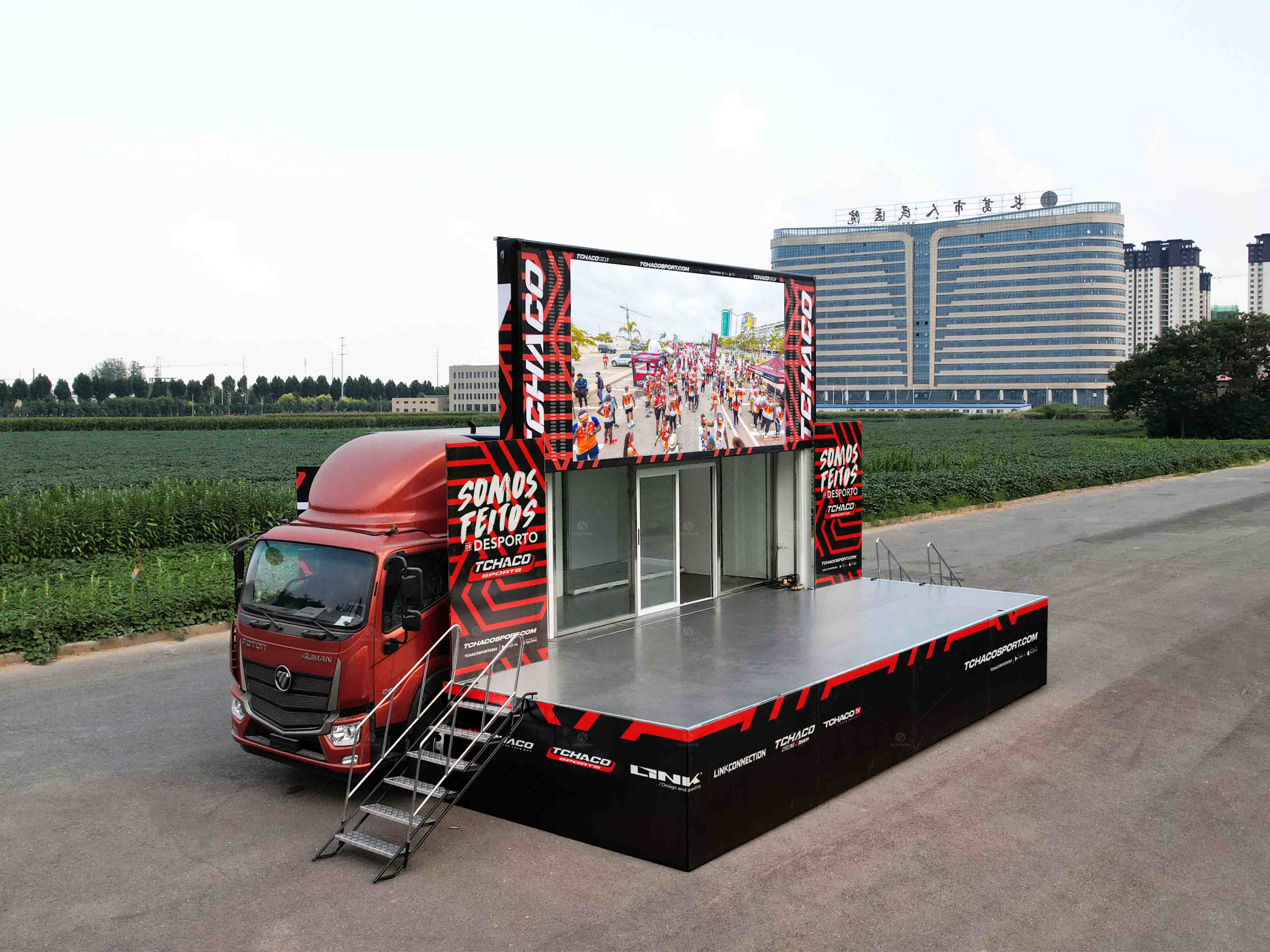

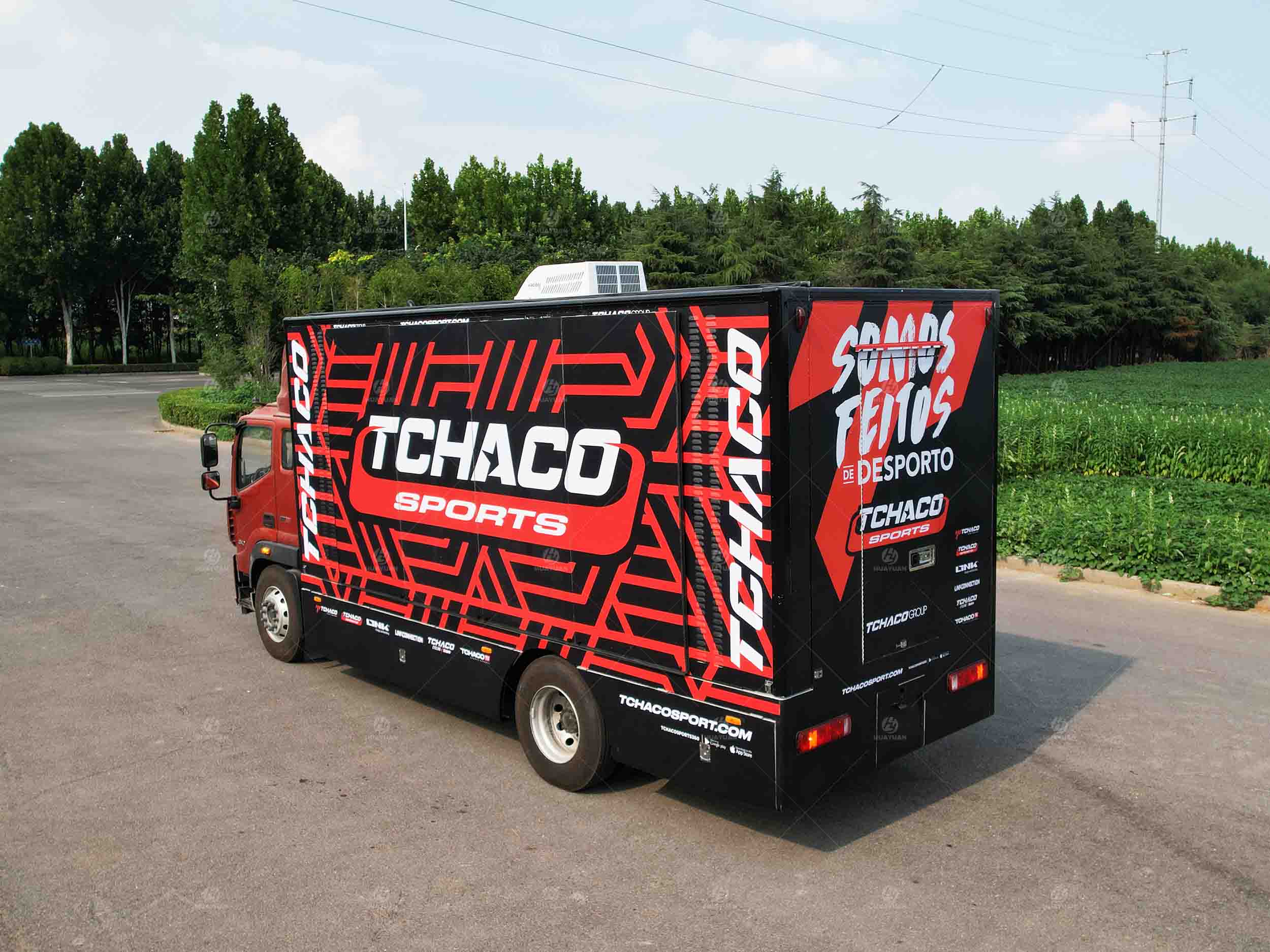

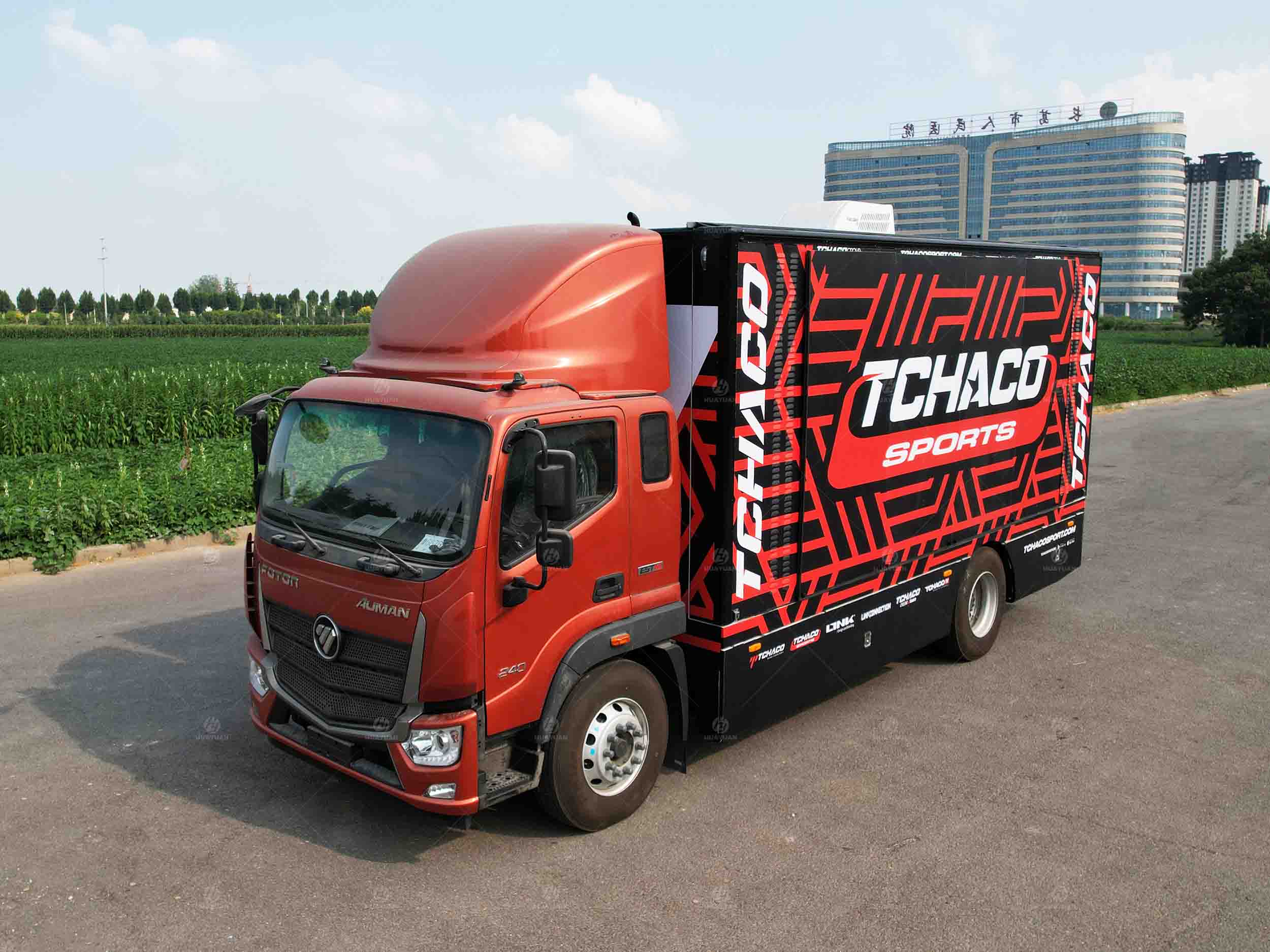

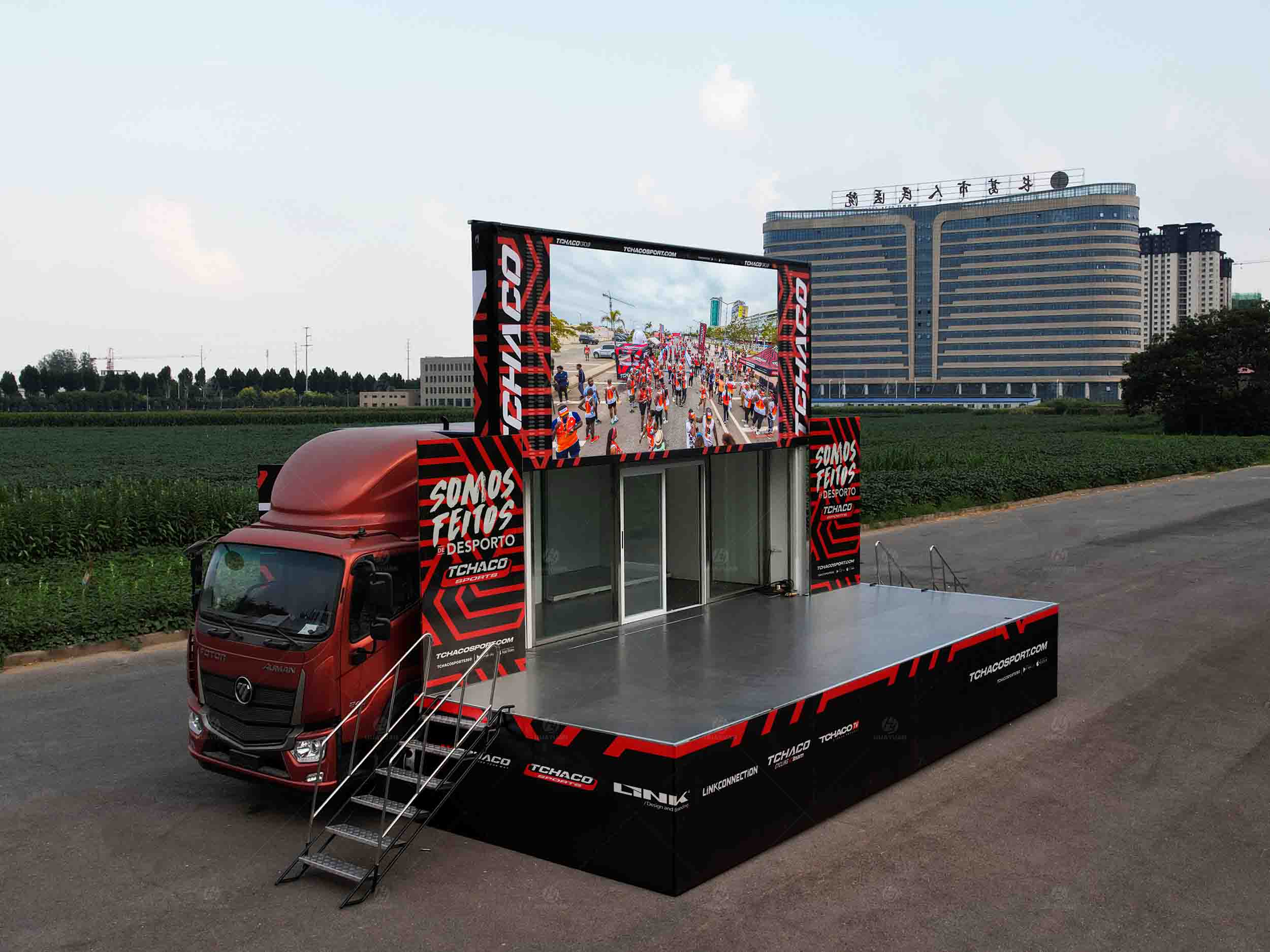

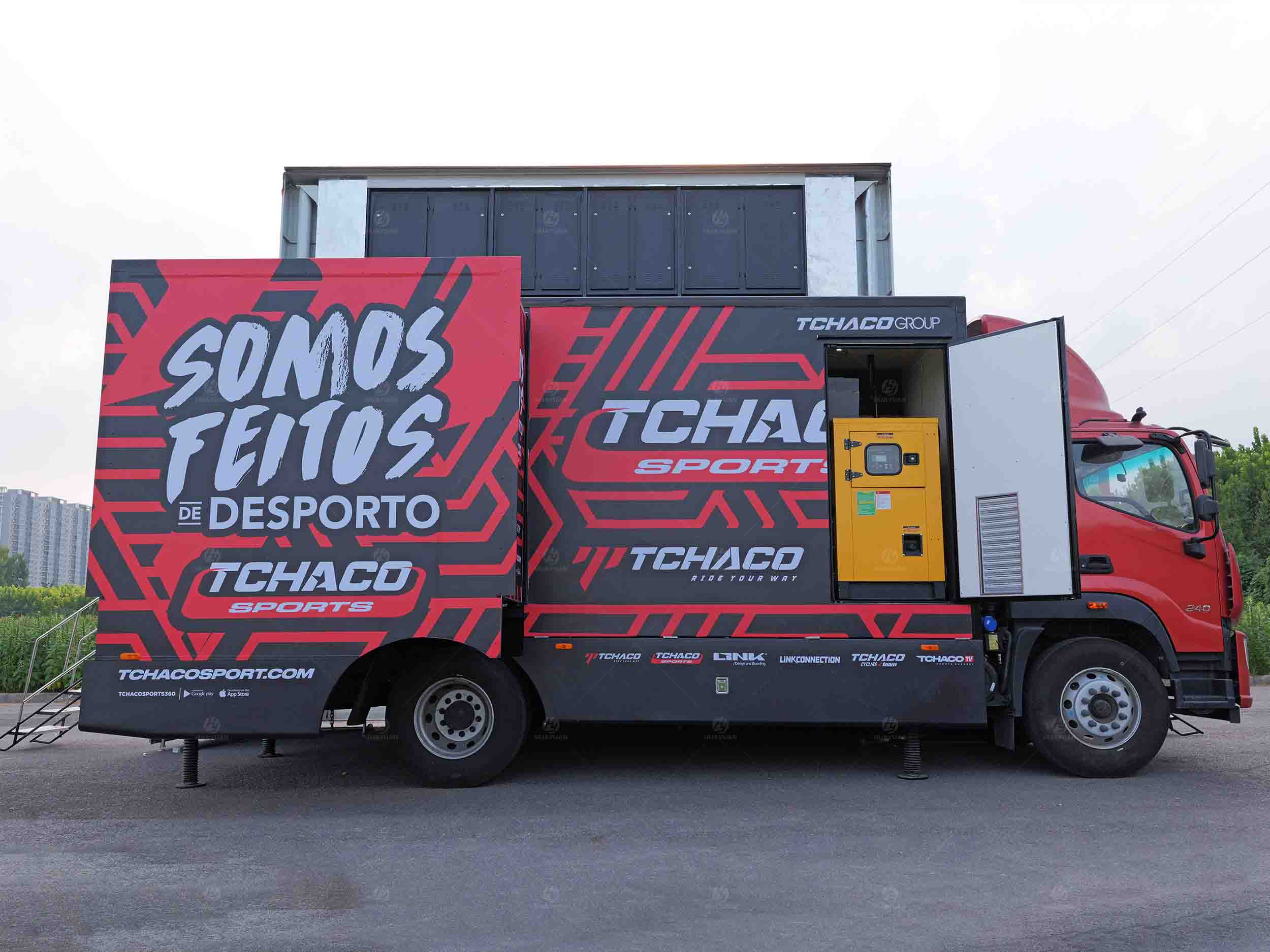

The LR235 combines transportation, visual communication and event presentation in one mobile platform. It can be deployed for brand roadshows,promotionalcampaigns,product demonstrations, public events and outdoor marketing activities where a recognizable and organized presentation space is required.

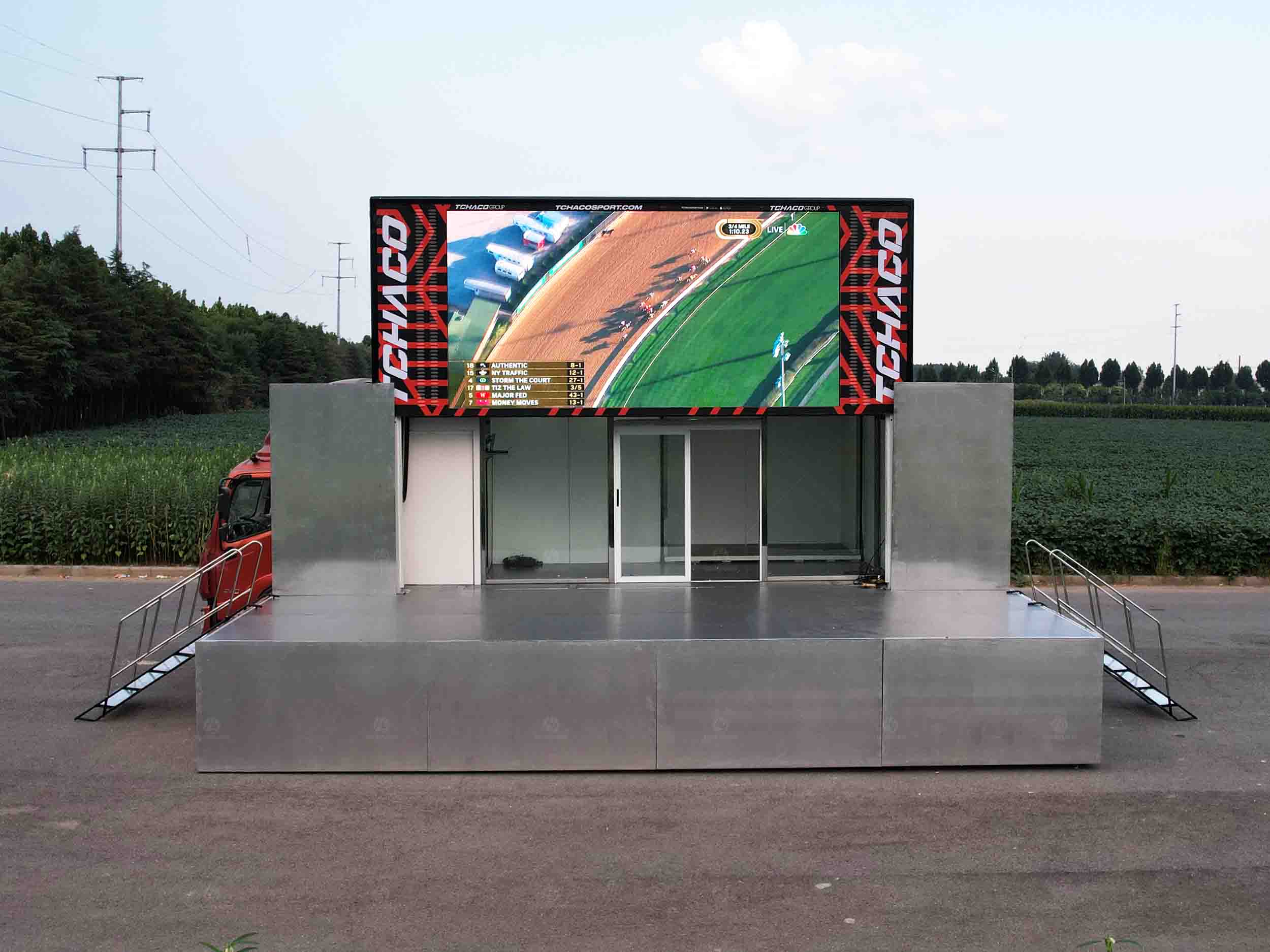

Its integrated vehicle design reduces the need to transport and assemble multiple independent event structures at each location. The roadshow body can accommodate anLED display,stage area and related event equipment according to project requirements, helping operators create a consistent presentation format from one event location to another.
For companies running multi-location promotions, the LR235 provides more than a conventional display vehicle. It functions as a mobile promotional platform that can carry brand content directly to target audiences while providing space for presentations, demonstrations and audience interaction.
As with other HUAYUAN roadshow vehicles, the LR235 can be configured according to different project requirements, including LED display specifications, stage arrangement, lighting,audio equipment, branding graphics and other event-related systems.
| product name | LED roadshow truck | Model | HY-LR235 | Brand | HUAYUAN | |||||||||
| Overall dimension(mm) | 9000×2500×3990 | Setup time | 35min/1-2people | weight（kg） | 11760 | |||||||||
| Lifting way | hydraulic system | framework material | steel structure | power distribution | mains supply /generator | |||||||||
| Stage size (mm) | 6000×3000 | Expansion size(mm) | 5500×1500 | Truck chassis | Foton, Sinotruck | |||||||||
| Hydraulic control mode | Remote controls | Guardrail/handrail | Stainless steel 304 | Screen lifting structure | Guide column + hydraulic cylinder | |||||||||
| Working voltage | 220V | Hydraulic control voltage | 24V | Screen lift height | 2m | |||||||||
| specifications | P4 | P5 | P6 | P8 | P10 | |||||||||
| Size (mm) | 5760×2080 | 5760×2080 | 5760×2112 | 5760×2080 | 5760×2080 | |||||||||
| Area (㎡) | 11.98 | 11.98 | 12.16 | 11.98 | 11.98 | |||||||||
| Module Specification (mm) | 320*160 | 320*160 | 192*192 | 320*160 | 320*160 | |||||||||
| Screen brightness（cd/m2） | ≥6000 | ≥6000 | ≥5000 | ≥5000 | ≥5000 | |||||||||
| Working voltage（V） | 5 | 5 | 5 | 5 | 5 | |||||||||
| Refresh rate（Hz) | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 | |||||||||
| Service life（hours） | ≥50000 | ≥50000 | ≥10000 | ≥50000 | ≥50000 | |||||||||
